2305 Self-Aligning Ball Bearing 25x62x24mm Stainless Steel Double Row [WARN] draft identifier mismatch

Consolidated Brand Sourcing — Procure mixed-brand packages including this 2305 self-aligning ball bearing without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Standard Steel Fails in Washdown Environments for the 2305 self-aligning ball bearing

Moisture exposure rapidly compromises standard raceways, making material selection the primary defense against premature seizure.

During my years procuring components for seafood processing lines in Qingdao, I learned the hard way that standard carbon or chrome steel bearings simply cannot withstand daily high-pressure water blasting. I once sourced a batch of standard units for a filleting conveyor to cut costs, only to watch them rust solid and lock up within weeks. Upgrading to corrosion-resistant variants for the 2305 self-aligning ball bearing eliminates this catastrophic washdown failure mode. [NEED_CITE: corrosion-induced surface degradation in wet processing environments]

Matching the 2305 self-aligning ball bearing to Washdown and Misaligned Shafts

When shaft deflection is unavoidable in wet processing conveyors, the double-row design compensates for angular misalignment while the stainless steel option prevents washdown corrosion. Sourcing these specific configurations requires verifying the exact material grade to ensure it survives aggressive chemical cleaning agents. We consolidate these specialized variants alongside standard industrial lines to simplify your MRO inventory.

Operational Challenges in High-Moisture and Misaligned Systems

Washdown environments introduce severe contamination risks where water ingress strips away standard lubricants, leading to metal-on-metal contact. When combined with shaft misalignment from heavy agricultural or conveyor loads, the internal stress concentrates on the outer raceway. Selecting the appropriate seal or shield type becomes critical to retain grease, while the material must resist the corrosive effects of sanitizing chemicals. [NEED_CITE: lubrication washout mechanisms in high-pressure cleaning cycles]

Decoding Core Specifications and Material Options

The 25x62x24mm dimensions define the physical envelope, while the 12.7 kN dynamic load rating dictates its capacity for continuous radial loads on conveyor rollers. Because the standard high-carbon chrome steel is highly susceptible to rust in wet conditions, this model is available in stainless steel variants to ensure survival in food-grade washdowns. The double-row arrangement inherently provides the self-aligning capability needed to absorb static shaft deflection without edge-loading the balls.

The Hidden Costs of Incorrect Material Specification

Specifying standard chrome steel for a high-pressure washdown application inevitably leads to raceway pitting and sudden shaft lockups. According to failure analysis frameworks like ISO 15243, corrosion and contamination are primary drivers of surface distress and premature spalling. This unplanned downtime not only halts the entire processing line but also voids equipment warranties and drives up emergency freight costs for replacement parts. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Why Procure This Configuration Through Our Network

Verifying the exact material composition is the most frequent error when ordering washdown bearings, as standard and stainless variants often share the same basic designation. We resolve this by providing material test reports that confirm the alloy composition before shipment. Our spot inventory covers both the corrosion-resistant and standard chrome steel options, allowing us to consolidate mixed-brand MRO orders into a single shipment. Furthermore, our technical team cross-references the load ratings against your specific conveyor parameters to prevent under-sizing.

Documentation & Authenticity

• Material test reports verifying the exact stainless or chrome steel alloy grade.
• Batch traceability documents linking the production lot to the original manufacturer.
• Dimensional inspection records confirming the 25x62x24mm tolerances before dispatch.
• Certificate of Conformity validating the dynamic and static load rating compliance.

Storage, Handling & Mounting

• Keep stainless steel variants in original packaging to prevent cross-contamination from carbon steel tools.
• Store the double-row units in a climate-controlled area to prevent condensation inside the raceway.
• Use induction heaters for inner ring mounting to avoid damaging the corrosion-resistant surface finish.
• Verify the shaft misalignment angle before pressing the outer ring to preserve the self-aligning clearance.

Technical Review and Selection Guidance

To ensure the selected material and clearance class perfectly match your washdown or conveyor application, please share your operating parameters. Providing the specific radial and axial loads, operating speeds, and chemical exposure details allows our engineering team to verify the L10 life calculation. Additionally, sharing the OEM equipment model number helps us cross-reference the exact dimensional and material requirements.

Frequently Asked Questions

Q: How do I resolve material discrepancies when sourcing this bearing?

A: Always request a material test report from the supplier to verify whether the unit is manufactured from stainless steel or standard chrome steel. Visual inspection is insufficient, and relying solely on the basic designation can lead to receiving standard units that will quickly corrode in washdown environments. We provide certified alloy documentation for every batch.

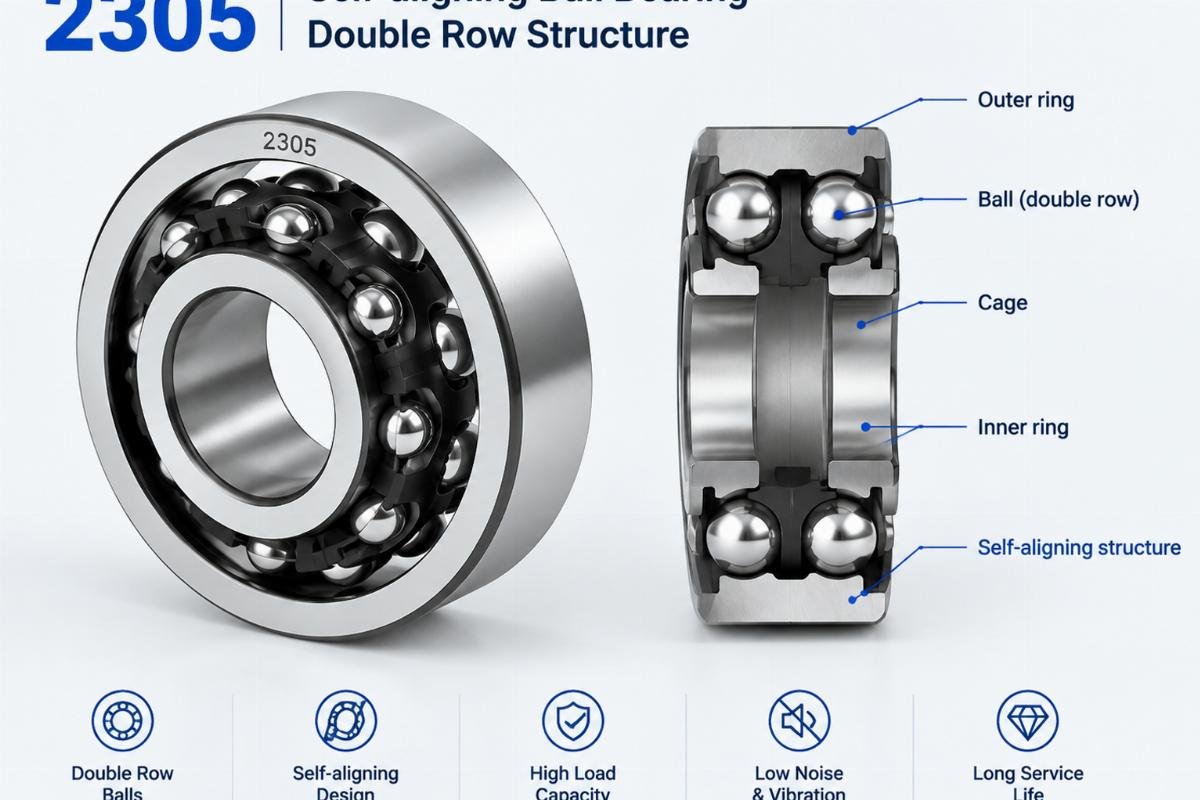

Q: How does the double-row design compensate for shaft misalignment?

A: The double-row configuration features a common spherical outer raceway that allows the inner ring and ball assemblies to pivot. This self-aligning capability absorbs static and dynamic shaft deflections caused by heavy loads or installation errors, preventing edge stresses and premature fatigue on the rolling elements.

Q: What are the cross-reference equivalents for this designation?

A: This basic designation is standardized across major global manufacturers, meaning it directly cross-references to equivalent models from SKF, FAG, NSK, and NTN. However, buyers must verify the specific material and clearance suffixes with each brand's catalog, as washdown and high-temperature variants often utilize proprietary suffix codes.

Q: How can I verify the genuine origin of mixed-brand MRO orders?

A: Authenticity is verified through complete batch traceability documentation, including original manufacturer certificates and material test reports. We consolidate mixed-brand packages while maintaining strict lot tracking, ensuring every unit can be traced back to its production facility and validated against official dimensional and load rating specifications.
