Self-Aligning Ball Bearing for Mechanical Equipment

Multi-Brand Sourcing Hub — Consolidate OZD, KOYO, NTN, and NSK self-aligning ball bearings into a single shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Misaligned Shafts Destroy Standard Bearings Before the Steel Fatigues

Self-aligning ball bearings compensate for angular misalignment, preventing edge loading that prematurely fractures standard deep-groove alternatives.

When shafts deflect under heavy agricultural loads or thermal expansion in textile machinery, rigid bearings experience severe localized stress. I once processed documentation for a shredder heading to Mexico where the suffix was missed, swapping a brass cage for pressed steel. Under high vibration, the cage snapped in days, halting the entire line and causing massive financial losses. When sourcing from a reliable self-aligning ball bearing supplier, verifying the exact cage material and internal clearance against the operational vibration profile is non-negotiable to avoid catastrophic downtime [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Ignoring these subtle engineering details inevitably turns a minor maintenance task into a complete assembly replacement.

Matching Internal Geometry to Angular Deflection

The double-row raceway design allows the inner ring and ball assembly to align freely with the outer ring, accommodating shaft deflections typical in agricultural and textile machinery. This unique geometry ensures that the load is distributed evenly across both rows of rolling elements, even when the shaft bends slightly under operational stress. Partnering with an experienced self-aligning ball bearing supplier ensures you receive units where the internal geometry is precisely matched to your equipment's misalignment tolerance. By carefully evaluating the specific deflection angles, procurement engineers can prevent localized stress concentrations that would otherwise accelerate raceway fatigue and compromise the structural integrity of the entire mechanical drive system.

Navigating Vibration, Dust, and Variable Loads

In material handling and harvesting environments, shafts endure combined radial and light axial loads alongside severe particulate contamination. Selecting the appropriate cage material—such as brass for high-vibration shredders or pressed steel for lighter conveyor duties—directly dictates fatigue resistance and operational longevity. Furthermore, adequate sealing or external lubrication protocols must be established to prevent abrasive dust from degrading the raceways and compromising the rolling elements [NEED_CITE: contamination impact on bearing life per ISO 281]. Temperature fluctuations also play a critical role, as thermal expansion can alter the internal clearance, necessitating a thorough evaluation of the operating environment to select the optimal configuration for sustained performance.

Decoding Material and Cage Selection for Misalignment

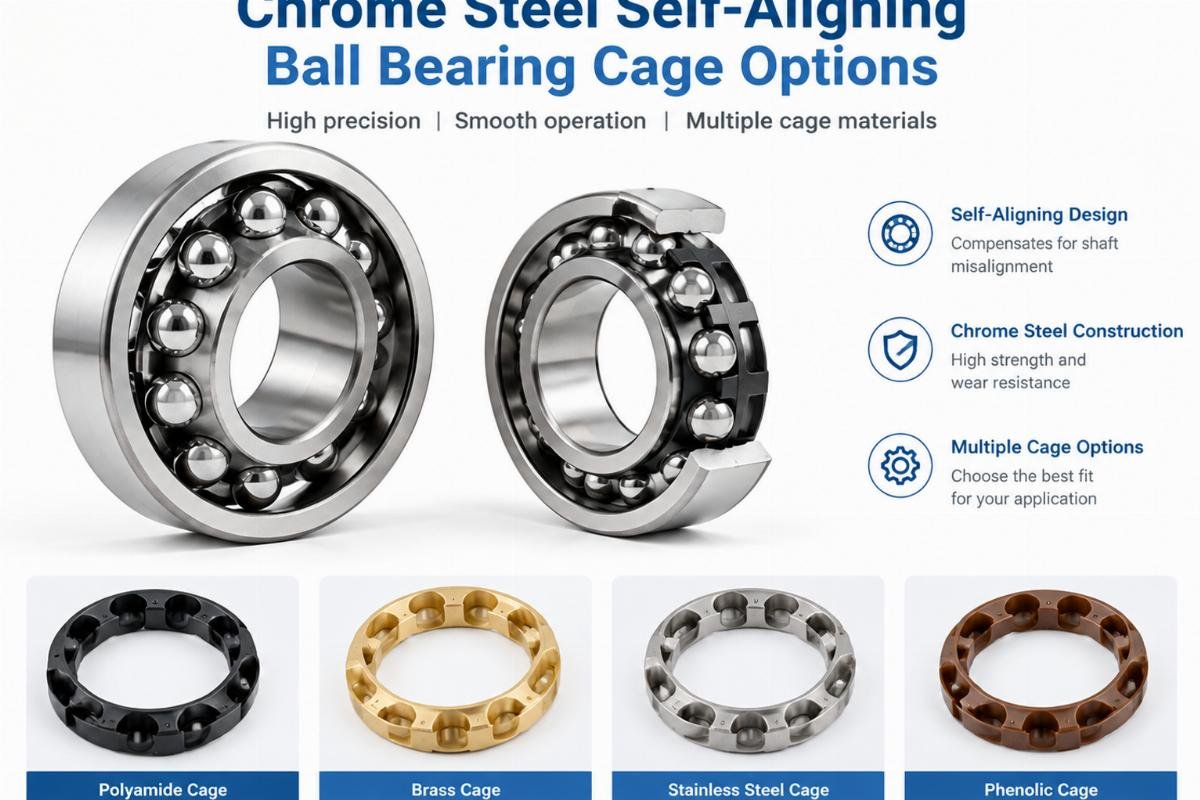

For application-oriented procurement, material and cage options define the operational ceiling and long-term reliability of the machinery. Units are typically available in Chrome Steel Gcr15 / 100cr6 variants, offering optimal wear resistance and fatigue strength for standard industrial environments. The cage design is equally critical; machined brass cages withstand severe vibrations and shock loads by maintaining precise ball spacing, whereas pressed steel cages suffice for steady, low-vibration conveyor applications. Selecting the correct configuration requires evaluating the specific misalignment angle and rotational speed to ensure the retainer maintains ball spacing without generating excessive friction heat. This precise alignment of material properties with operational demands ensures that the bearing performs reliably throughout its intended service life.

The Financial Drain of Ignoring Suffix Details

Overlooking cage material or clearance specifications inevitably leads to unplanned downtime and catastrophic damage to adjacent shaft components. When a pressed steel cage fails in a high-vibration textile machine, the resulting debris scores the inner ring, voiding any warranty and forcing a complete assembly replacement. Adhering to failure analysis frameworks highlights that incorrect component selection is a primary driver of premature mechanical degradation and excessive maintenance budgets [NEED_CITE: economic impact of unplanned machinery downtime]. Procurement teams must recognize that the initial cost savings of an incorrectly specified component are rapidly eclipsed by the massive expenses associated with emergency repairs, lost production hours, and secondary equipment damage.

Engineering Verification Beyond the Part Number

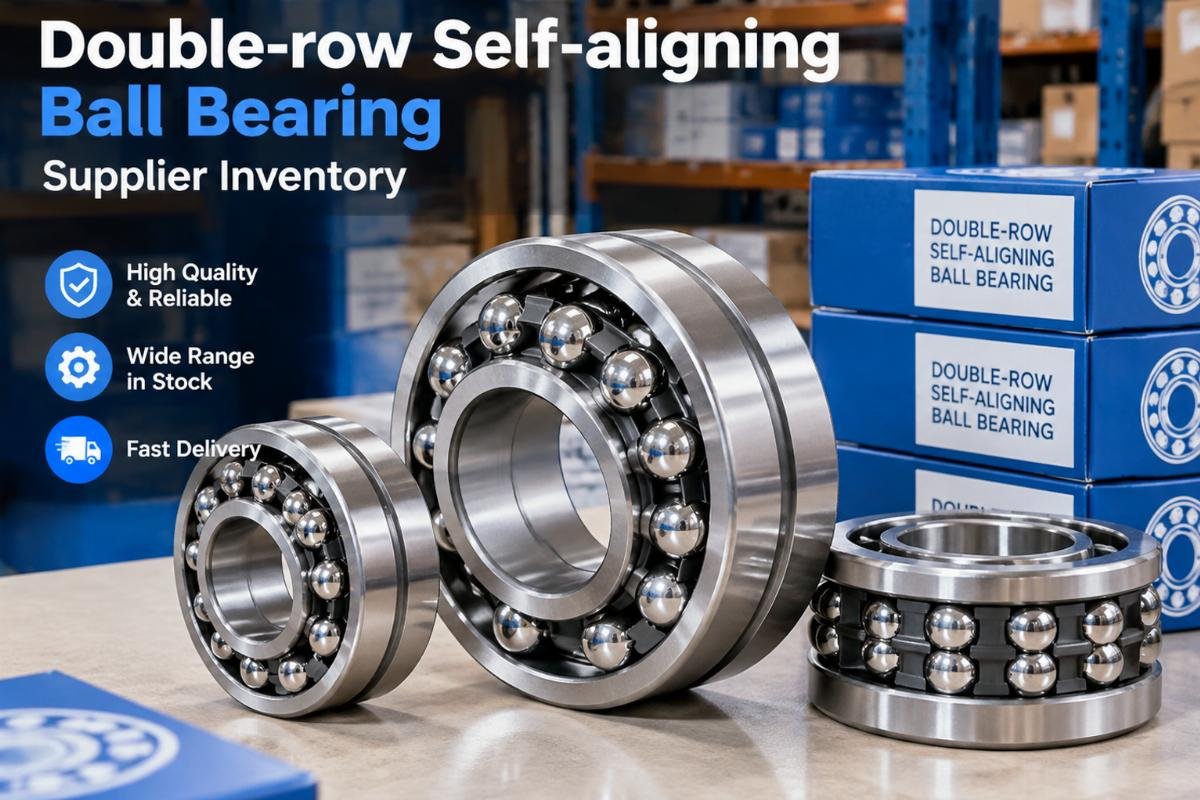

We cross-check every material certificate for Chrome Steel Gcr15 / 100cr6 against the manufacturer's original metallurgical data before dispatch, ensuring absolute material integrity. Our technical team verifies that the dynamic and static load capacities align perfectly with your specific machinery requirements, eliminating guesswork from the procurement process. We maintain massive spot inventory across premium global brands and reliable domestic lines, allowing flexible mixed-brand consolidation for urgent MRO projects without delaying critical operations. Furthermore, our pre-shipment inspection services confirm dimensional accuracy and running smoothness, ensuring each unit meets strict ISO-compliant standards. This rigorous validation process guarantees that the self-aligning ball bearing supplier you choose delivers components that perform exactly as engineered.

Documentation & Authenticity

• Certificate of Conformity validating the specific Chrome Steel Gcr15 / 100cr6 metallurgical composition.
• Original manufacturer batch traceability records linking the double-row bearing to its production date.
• Running accuracy inspection reports confirming smooth rotation prior to global shipment consolidation.
• Material test certificates verifying the hardness and fatigue strength of the selected cage material.

Storage, Handling & Mounting

• Retain the original vapor-phase inhibitor packaging until mounting to protect the Chrome Steel Gcr15 / 100cr6 surfaces from humidity.
• Use clean, lint-free gloves when handling the double-row bearing to prevent skin acids from initiating micro-corrosion on the raceways.
• For shafts with significant angular deflection, verify the housing bore alignment before pressing the outer ring to avoid distorting the self-aligning capability.
• Apply the recommended grease volume based on the specific cage type, ensuring brass cages receive adequate lubrication to dampen high-frequency vibrations.

Provide Equipment Parameters for Precision Selection

To determine the exact model, share your equipment specifications, including shaft diameter, housing dimensions, and the maximum expected angular misalignment during peak operational loads. Detail the operational environment—such as exposure to agricultural dust, textile lint, or corrosive elements—so our engineering team can recommend the optimal sealing and cage configuration. Providing the OEM machinery model number allows us to cross-reference and verify the precise load and speed requirements for your application. By supplying these comprehensive technical parameters, you enable our specialists to conduct a thorough selection analysis, ensuring the final configuration delivers maximum reliability and extends the maintenance intervals for your mechanical equipment.

Frequently Asked Questions

Q: How to determine the exact self-aligning ball bearing model based on equipment parameters?

A: Determining the precise model requires analyzing your shaft diameter, housing bore, and the maximum angular misalignment expected during operation. You must also provide the radial and axial load profiles alongside the rotational speed. Our engineering team uses these parameters to calculate the required dynamic load rating and select the appropriate internal clearance, ensuring the double-row configuration perfectly matches your mechanical equipment's operational demands without premature fatigue.

Q: What are the common failure modes of self-aligning ball bearings in misaligned shaft applications?

A: In misaligned applications, the most frequent failure modes include cage fracture, raceway smearing, and premature lubricant degradation. If the misalignment exceeds the bearing's compensating capacity, edge loading occurs, generating excessive friction heat and localized stress. Utilizing a machined brass cage instead of pressed steel often mitigates cage fatigue in high-vibration environments, while proper sealing prevents abrasive contaminants from accelerating wear on the Chrome Steel Gcr15 / 100cr6 raceways.

Q: How to choose between premium global brands and domestic lines for MRO replacements?

A: The choice depends on the criticality of the application and your maintenance cycle expectations. Premium global brands are typically specified for high-speed, heavily loaded, or hard-to-reach machinery where maximum fatigue life is paramount. Reliable domestic lines offer a highly competitive sourcing cost for general manufacturing, agricultural machinery, and non-critical conveyor systems, providing excellent performance when the correct material and cage specifications are rigorously verified during the procurement process.

Q: What is the standard maintenance and relubrication cycle for double-row self-aligning ball bearings?

A: The relubrication interval is not fixed; it depends heavily on the operating temperature, rotational speed, and environmental contamination levels. In dusty agricultural or material handling environments, the grease degrades faster and requires more frequent replenishment to flush out particulates. We recommend monitoring the bearing's operating temperature and acoustic signature to establish a condition-based maintenance schedule, ensuring the cage and rolling elements remain adequately protected against friction and wear.

Q: How do we handle custom size requests and mixed-brand consolidation shipments?

A: We specialize in comprehensive sourcing solutions, allowing you to consolidate various bearing types and brands into a single full-container shipment. For custom size requests or non-standard applications, our technical team provides cross-brand equivalent model consultation to identify the optimal alternative. Every unit in the mixed-brand package undergoes strict pre-shipment inspection and is accompanied by complete traceability documentation, ensuring uniform quality across your entire bulk project order.
