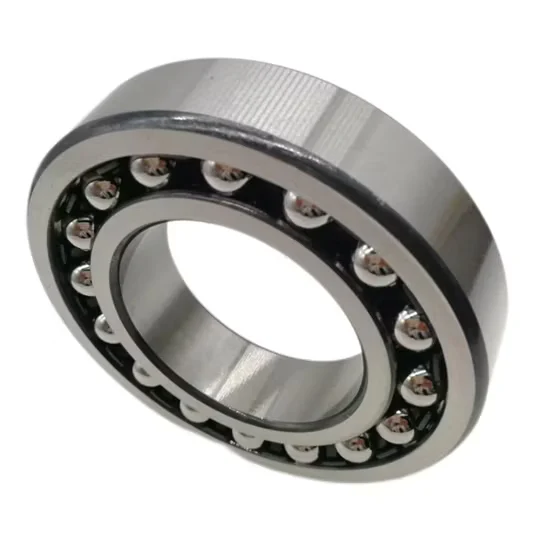

Self-Aligning Double Row Ball Bearing for Electric Motors and Pumps

Cross-Reference Alignment — We verify dimensional, load, and speed compatibility across mixed-brand packages before dispatch.

Technical Specifications

Application Suitability

Why Misalignment Destroys Standard Bearings in Motor and Pump Assemblies

Standard deep-groove bearings fail rapidly under shaft deflection, whereas self-aligning designs accommodate angular errors without edge-loading the raceways.

During a critical site inspection in Riyadh, I analyzed a completely seized bearing on a heavy-duty industrial pump where thermal expansion and severe sand ingress caused catastrophic raceway scoring. Misapplied internal clearances and inadequate sealing configurations turned a very minor housing offset into a complete mechanical lock, halting the entire production line. When procurement teams overlook these operational realities, the resulting friction and heat quickly destroy the rolling elements. Sourcing from a reliable self-aligning double row ball bearing supplier ensures the internal geometry and material specifications strictly match these harsh environmental conditions, preventing avoidable mechanical failures [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Internal Geometry to Motor and Pump Dynamics

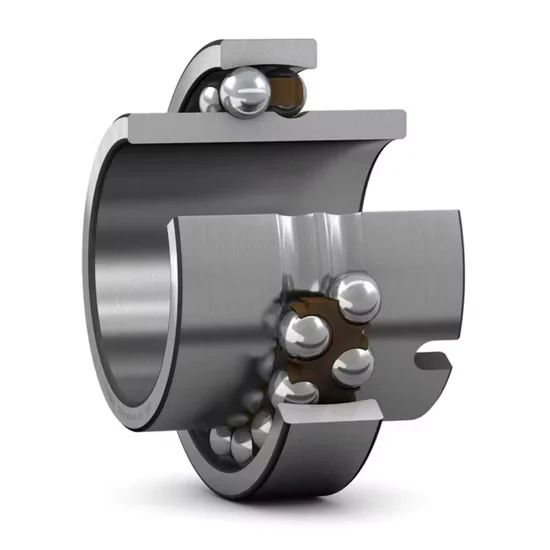

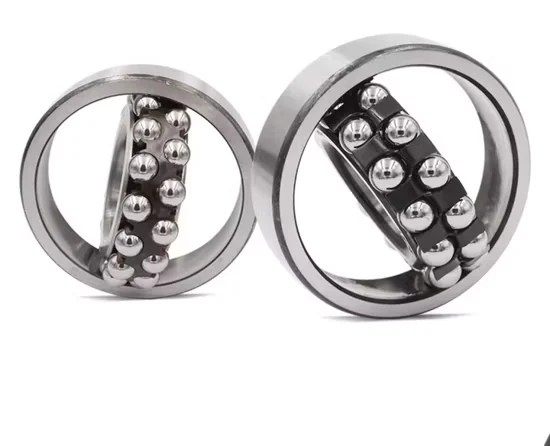

The spherical outer ring raceway allows the inner ring and ball assembly to align freely, effectively compensating for housing machining errors or dynamic shaft deflections that are incredibly common in electric motors and centrifugal pumps. As a specialized self-aligning double row ball bearing supplier, we provide comprehensive cross-brand equivalent model consultation to ensure the selected internal clearance perfectly accommodates your specific thermal gradients and operational speeds. This precise alignment capability prevents the premature fatigue and localized spalling often seen when rigid bearings are forced into flexible or poorly machined housings, ultimately extending the service life of the entire rotating assembly.

Managing Thermal Expansion and Contaminant Ingress

In high-temperature pump environments, standard radial clearances can completely disappear as the inner ring expands significantly faster than the outer housing, leading to excessive internal preload and rapid heat generation. Selecting the appropriate internal clearance class is absolutely critical to maintain a functional hydrodynamic lubricant film under these severe thermal shifts. Furthermore, exposed textile or conveyor applications demand highly effective sealing solutions to block abrasive dust particles without introducing excessive friction torque that could overload the drive motor. Proper installation practices must also be strictly followed to avoid brinelling the delicate raceways during press-fitting operations, ensuring the bearing reaches its intended operational lifespan [NEED_CITE: bearing installation and mounting guidelines per ISO 15243].

Evaluating Material and Clearance Options for Specific Duties

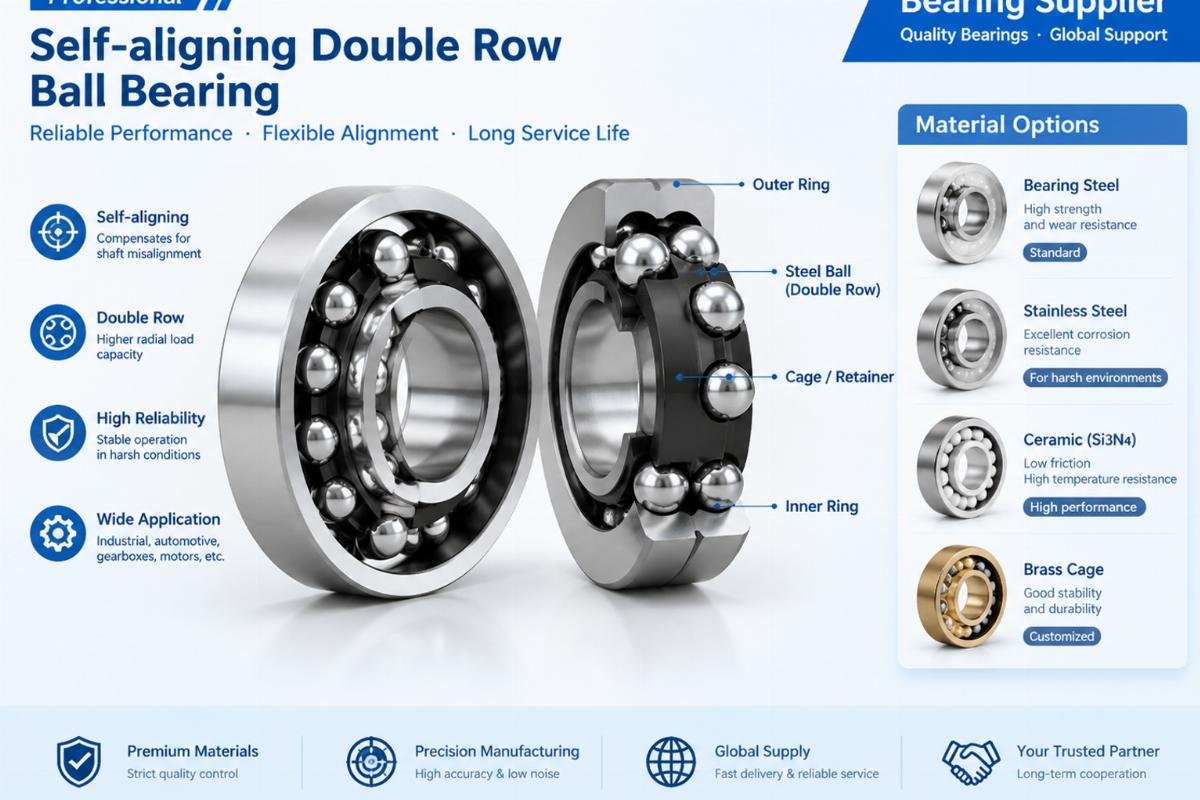

Chrome Steel Gcr15 / 100cr6 provides excellent structural integrity and outstanding fatigue resistance for standard industrial motor and pump applications operating under normal conditions. For environments involving persistent moisture, high humidity, or mild chemical exposure, specialized stainless steel variants are readily available to prevent surface corrosion and destructive pitting. The double-row configuration inherently supports noticeably higher radial loads compared to single-row alternatives, while the self-aligning feature effectively mitigates harmful moment loads caused by shaft bending under heavy operational stress. Selecting between open, shielded, or fully sealed variants depends entirely on the facility's maintenance schedule and the specific contamination level of the surrounding environment. Ensuring the chosen material and sealing options perfectly align with the operational environment is just as critical as verifying the basic dynamic load rating during the initial engineering phase.

The Financial Impact of Incorrect Clearance and Sealing Choices

Specifying a standard internal clearance in a high-temperature pump application frequently results in unplanned downtime due to thermal seizure, instantly voiding equipment warranties and halting critical production lines. Similarly, utilizing open bearings in dusty textile mills inevitably leads to severe abrasive wear that drastically shortens the calculated fatigue life of the component. These premature mechanical failures not only require frequent and costly replacements but also risk catastrophic damage to adjacent shafts, seals, and expensive machined housings. Adhering to established failure analysis frameworks helps maintenance teams identify these root causes early, preventing minor selection errors from escalating into systemic reliability issues across the plant [NEED_CITE: life calculation and reliability standards per ISO 281].

Procurement Advantages for Critical Rotating Equipment

As a dedicated self-aligning double row ball bearing supplier, we maintain a massive spot inventory covering thousands of standard and special part numbers, ensuring remarkably rapid dispatch for urgent MRO requirements and minimizing costly equipment downtime. Our authorized channel procurement guarantees complete traceability documentation for every single batch, entirely eliminating the risk of counterfeit components infiltrating your critical pump assemblies. We offer highly flexible order quantities ranging from single-unit emergency spare parts to full container consolidation shipments, significantly optimizing your overall procurement costs. Our dedicated engineering team provides expert technical selection support to verify cross-brand equivalents whenever your preferred manufacturer faces extended lead times or supply chain disruptions. Additionally, our comprehensive global shipping consolidation service simplifies complex logistics for mixed-brand, mixed-size bearing packages destined for your international facilities.

Documentation & Authenticity

• Certificate of Conformity verifying the specific Gcr15 / 100cr6 material grade for each batch.
• Original factory batch tracking numbers ensuring full traceability for pump and motor maintenance logs.
• Material inspection reports confirming the chemical composition of the chrome steel raceways.
• Dimensional and running accuracy inspection reports validating the spherical outer ring geometry.
• Origin documentation supporting customs clearance and compliance for international project shipments.

Storage, Handling & Mounting

• Store the double-row bearings in their original moisture-proof packaging until immediately before mounting to prevent surface corrosion.
• Use clean lint-free gloves when handling the spherical outer raceway to avoid transferring skin acids to the chrome steel.
• For pump shafts with tight tolerances, utilize induction heating for the inner ring rather than mechanical pressing to protect the raceways.
• Ensure the self-aligning feature is not restricted by adjacent housing shoulders or sealing components during the final assembly.
• Apply the specified lubricant volume based on the operating speed of the electric motor to prevent churning and overheating.

Required Parameters for Technical Verification

To ensure optimal selection and prevent costly operational errors, please provide the exact equipment model, precise installation dimensions, and the specific radial and axial loads encountered in your motor or pump application. Sharing the continuous operating speed, peak ambient temperature, and the level of exposure to environmental contaminants allows our engineering team to recommend the precise clearance class and sealing configuration. This thorough technical review guarantees the proposed bearing solution aligns perfectly with your unique operational demands, environmental challenges, and scheduled maintenance intervals.

Frequently Asked Questions

Q: How do we determine the exact designation for our specific motor shaft and housing parameters?

A: Determining the exact model requires analyzing the shaft diameter, housing bore, and the maximum allowable angular misalignment. By providing the operational loads, speeds, and thermal conditions, our engineering team calculates the required internal clearance and selects the appropriate cage and sealing design to ensure reliable performance in your specific application.

Q: What are the common failure modes in misaligned pump applications, and how do these bearings mitigate them?

A: Misalignment typically causes edge-loading, excessive heat generation, and premature cage failure in standard rigid bearings. The spherical outer raceway of this design allows the inner ring to pivot freely, equalizing the load distribution across both rows of rolling elements and preventing the localized stress concentrations that lead to early fatigue.

Q: How do we choose between standard chrome steel and specialized material variants for textile machinery?

A: Standard chrome steel offers excellent fatigue strength for dry, clean environments, while stainless steel variants provide superior corrosion resistance for areas exposed to moisture or washing chemicals. Evaluating the specific contamination level and maintenance washing frequency helps determine whether the enhanced corrosion protection justifies the material transition for your textile equipment.

Q: Can we order mixed-brand consolidation packages with flexible quantities for urgent MRO needs?

A: Yes, we support flexible order quantities ranging from single emergency replacement units to full container loads. Our mixed-brand consolidation service allows you to combine various bearing types and sizes into one shipment, reducing freight costs and simplifying the procurement process for your global maintenance and repair operations.

Q: What are the recommended maintenance cycles and lubrication practices for double-row self-aligning designs?

A: Maintenance intervals depend heavily on the operating temperature, speed, and environmental contamination level. For open or shielded variants, regular re-lubrication with a compatible grease is necessary to flush out debris and maintain the protective film, while sealed versions are typically maintenance-free for their calculated service life under normal conditions.
