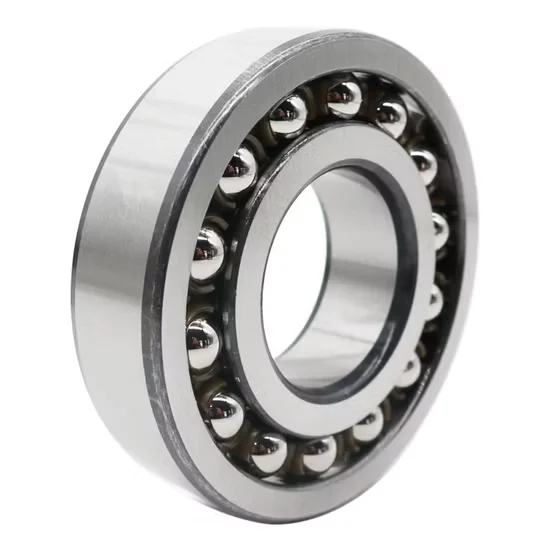

2322m 2322 Self-Aligning Ball Bearing 110x240x80 High Precision [WARN] draft identifier mismatch

Mixed-Brand Sourcing Covered — Consolidate your 2322m self-aligning ball bearing orders with other premium brands in a single shipment without juggling multiple suppliers.

Technical Specifications

Application Suitability

Why Standard Cages Fail in High-Temperature Textile and Conveyor Drives

Machined brass cages prevent catastrophic cage disintegration when thermal expansion exceeds stamped steel limits.

Years ago, I specified a standard stamped steel cage for a paper mill application similar to this 2322m self-aligning ball bearing, ignoring the elevated ambient heat near the drying cylinders. The cage fractured within months, locking the shaft and halting production entirely. Thermal degradation of lubricants combined with severe cage stress causes a significant share of premature failures in continuous manufacturing environments [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When operating temperatures rise, standard pressed cages lose their structural rigidity, leading to pocket wear and eventual disintegration. Upgrading to a machined brass design mitigates this exact risk by maintaining dimensional stability under thermal load. The solid brass construction absorbs vibration and dissipates heat away from the rolling elements, ensuring the lubricant film remains intact. This single specification change converts a high-maintenance liability into a reliable, long-lasting drive component.

Matching the 2322m Self-Aligning Ball Bearing to Demanding Drive Shafts

When shaft deflection or housing misalignment is unavoidable in heavy conveyor systems, the double-row self-aligning design compensates for these angular errors effectively. Sourcing this specific 2322m self-aligning ball bearing requires verifying the brass cage suffix to ensure it survives the operational heat generated by heavy radial loads. Our technical team cross-references equivalent models across global brands to secure the exact variant your maintenance schedule demands. By analyzing the specific deflection angles and load vectors of your machinery, we ensure the selected configuration provides optimal contact stress distribution across the spherical raceway.

Managing Thermal and Radial Loads in Continuous Operations

Continuous operation in industrial gearboxes and centrifugal pumps generates substantial radial loads alongside moderate axial forces. Elevated temperatures thin out standard greases, making the excellent heat dissipation of a machined brass cage critical for maintaining the hydrodynamic lubricant film. Without adequate thermal clearance, inner ring expansion can eliminate internal clearance, leading to excessive friction and accelerated fatigue. Proper relubrication intervals must be established based on the specific operating temperature and environmental contamination levels [NEED_CITE: bearing lubrication and maintenance guidelines per ISO 281]. Furthermore, the double-row arrangement distributes the radial burden across a wider cross-section, reducing the localized Hertzian stress on the raceways. This structural advantage is particularly vital in textile spinning frames where uninterrupted high-speed rotation is mandatory for production yield.

Decoding the Brass Cage and Dimensional Profile

The 'm' suffix denotes a machined brass cage, which offers superior structural integrity and heat dissipation compared to pressed steel alternatives, especially under heavy vibration or thermal stress. The 110x240x80 mm dimensional profile provides a broad load-carrying cross-section suitable for medium-to-heavy radial duties in power transmission systems. Double-row arrangements inherently allow the inner ring and ball assembly to align freely with the outer ring's spherical raceway. This self-aligning capability protects the rolling elements from edge loading when the shaft bends under operational weight or when housing tolerances are less than perfect. The solid brass pockets guide the balls precisely, minimizing skidding during rapid acceleration or deceleration phases. Consequently, the friction torque remains consistently low, contributing to overall energy efficiency in electric motor applications.

The Operational Toll of Incorrect Cage Selection

Selecting a standard stamped steel cage for high-temperature or high-vibration environments often results in unplanned downtime and catastrophic damage to the shaft and housing. Premature cage wear generates metallic debris that contaminates the lubricant, accelerating surface fatigue across the raceways and rolling elements. Such failures void equipment warranties and inflate maintenance budgets far beyond the initial component cost. Adhering to failure analysis frameworks helps identify these hidden risks before deployment [NEED_CITE: tribological analysis of bearing failures per ISO 15243]. When a cage fractures, the balls cluster together, causing immediate seizure and potentially shearing the shaft. The financial impact of replacing a ruined gearbox housing dwarfs the marginal cost of specifying a machined brass cage from the outset.

Securing Traceable Quality for Critical MRO Replacements

Procuring the correct brass-caged variant is challenging when local distributors only stock pressed-steel equivalents to cut costs. We maintain massive spot inventory covering thousands of part numbers, ensuring you receive the exact 2322m configuration without waiting for typical multi-week factory lead times. Our cross-brand equivalent consultation guarantees dimensional and performance alignment if your preferred brand is currently unavailable. Every shipment includes complete traceability documentation, protecting your facility from the severe risks of counterfeit components. We also provide long-term after-sales technical support for failure analysis if your operating conditions shift or if unexpected vibration signatures emerge during commissioning. This comprehensive approach ensures your maintenance team has the exact engineering backing required to keep critical machinery running.

Documentation & Authenticity

• Certificate of Conformity verifying the exact 2322m designation and brass cage suffix.
• Original manufacturer batch traceability linking the specific heat number to production records.
• Material inspection reports confirming Gcr15 / 100cr6 chemical composition and hardness.
• Dimensional and running accuracy inspection reports validating the 110x240x80 mm tolerances.

Storage, Handling & Mounting

• Store the 2322m in its original unopened packaging to prevent humidity from corroding the Gcr15 steel rings.
• Use clean cotton gloves when handling the machined brass cage to avoid acidic sweat residue.
• Apply induction heating for the 110 mm cylindrical bore mounting, strictly avoiding open flames that degrade the brass.
• Verify the internal clearance post-mounting, as thermal expansion of the 240 mm outer ring can alter the fit.
• Ensure proper alignment of the housing before pressing the bearing to preserve the self-aligning capability.

Engineering Review for Your Specific Application

To confirm this configuration suits your machinery, please share the exact radial and axial loads, operational speeds, and ambient temperatures. Providing the OEM equipment serial numbers allows our team to perform precise cross-reference verification and confirm the required internal clearance class. If your environment involves excessive moisture, chemical exposure, or heavy particulate contamination, specify these conditions so we can evaluate alternative material options or external sealing arrangements. Our goal is to deliver a fully validated sourcing solution that aligns perfectly with your operational realities.

Frequently Asked Questions

Q: What does the 'm' suffix indicate on this bearing?

A: The lowercase 'm' suffix specifies a machined brass cage. This design provides enhanced durability, better heat dissipation, and superior resistance to vibration compared to standard stamped steel cages, making it ideal for demanding industrial applications like conveyors and gearboxes where thermal stability is crucial.

Q: How do I verify the authenticity of the 2322m bearing?

A: Authenticity is confirmed through comprehensive traceability documentation, including a Certificate of Conformity and original manufacturer batch records. We also provide material inspection reports verifying the Gcr15 steel composition and dimensional checks ensuring the 110x240x80 mm specifications strictly match official catalog tolerances.

Q: Can this bearing accommodate shaft misalignment?

A: Yes, the double-row self-aligning design features a spherical outer ring raceway. This allows the inner ring and ball assembly to pivot freely, compensating for static or dynamic angular misalignment caused by shaft deflection or housing mounting errors, thereby preventing edge loading on the rolling elements.

Q: How do I cross-reference equivalent models across different brands?

A: Share your current OEM part number or operational parameters with our technical team. We utilize comprehensive cross-reference databases to identify exact dimensional and performance equivalents from premium global brands, ensuring the replacement matches the required load capacity and brass cage configuration.

Q: What lubrication practices are recommended for the brass cage design?

A: Machined brass cages operate well with both oil and grease lubrication. For high-speed or high-temperature applications, oil lubrication or circulating oil systems are preferred to maximize heat dissipation. Always follow the manufacturer's relubrication intervals based on your specific operating temperature and contamination levels.
