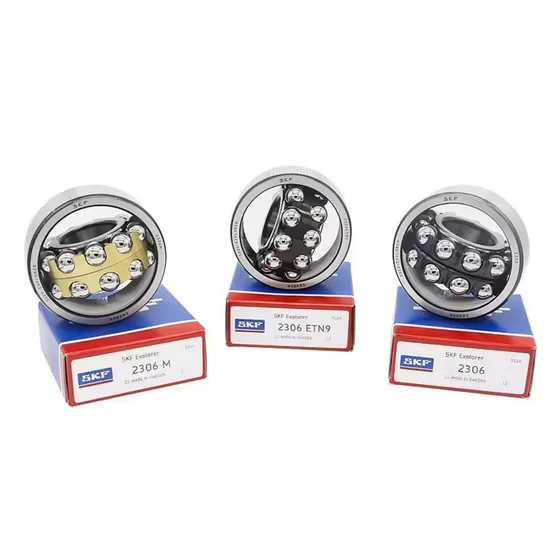

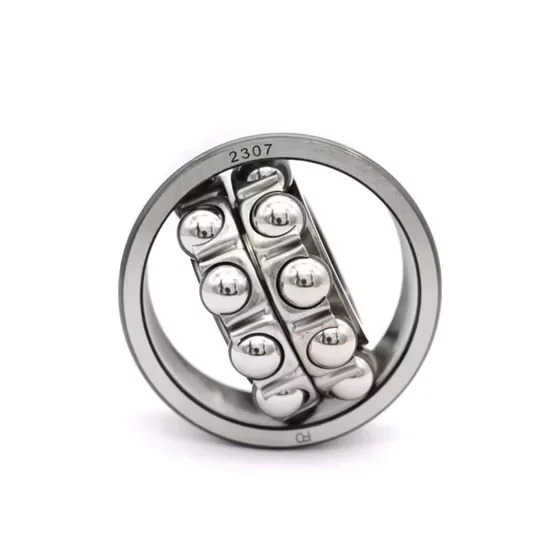

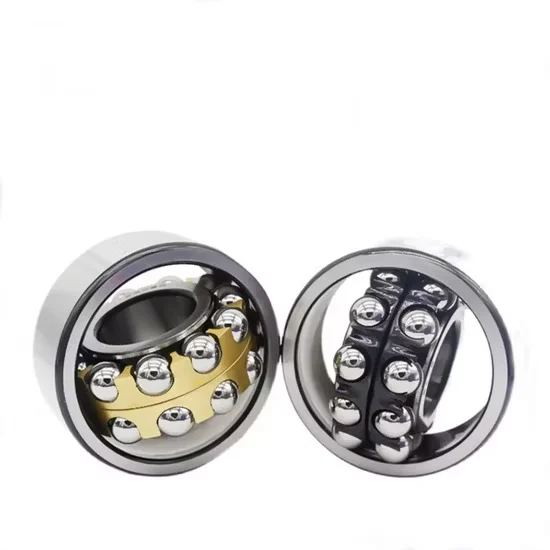

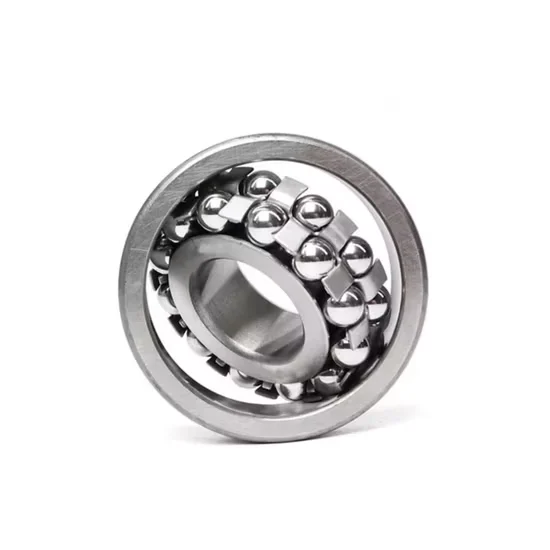

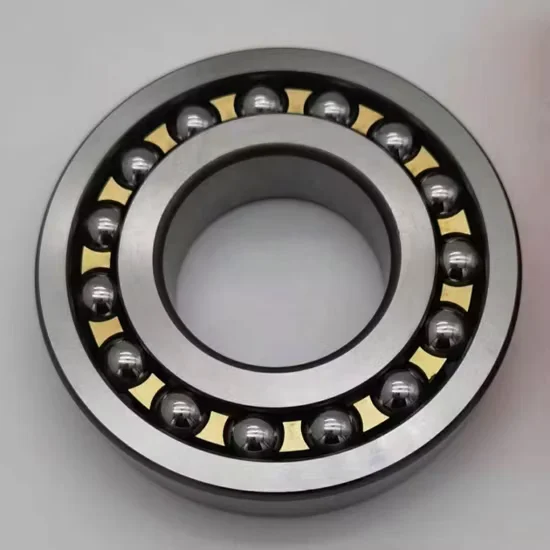

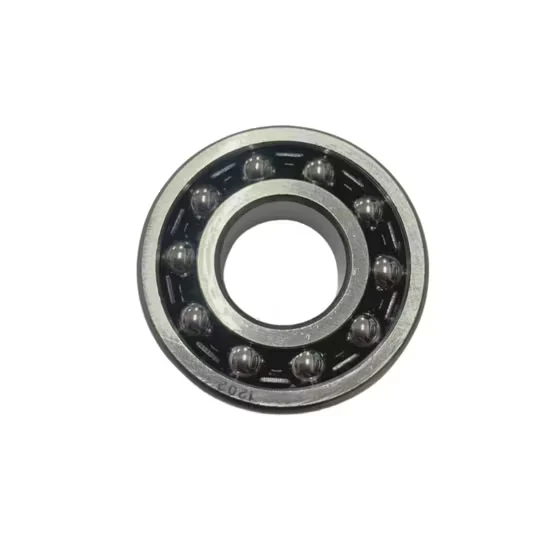

Self Aligning Ball Bearing 2304K-2311K for Food Packaging Fast Rotation

Cross-Reference Alignment — We verify dimension, load rating, and suffix equivalence when substituting across KOYO, NTN, and NSK catalogs for your packaging lines.

Technical Specifications

Application Suitability

Why Suffix Oversight Causes Thermal Seizure in the OZD KOYO NTN NSK 2304K 2305K 2306K 2307K 2308K 2309K 2310K 2311K self-aligning ball bearing

Missing the C3 clearance on a K-tapered bore invites catastrophic thermal expansion during continuous high-speed operation.

Early in my career handling a major food packaging line project, I shipped a standard clearance unit instead of specifying C3 for a high-speed rotary filler. The resulting thermal expansion caused immediate seizure and halted the entire production floor for days. Overlooking internal clearance alongside the tapered adapter sleeve fit remains a primary cause of unplanned downtime in fast-rotation environments. When the inner ring expands faster than the outer ring due to friction heat, the rolling elements bind, leading to severe raceway damage. Correcting this requires a deep understanding of how thermal gradients interact with specific clearance classes [NEED_CITE: bearing failure modes related to thermal expansion and clearance loss].

Matching Tapered Bore Geometry to Packaging Line Shafts

When integrating the OZD KOYO NTN NSK 2304K 2305K 2306K 2307K 2308K 2309K 2310K 2311K self-aligning ball bearing into food processing equipment, the 1:12 tapered bore ensures secure locking on adapter sleeves. This specific mounting method compensates for minor shaft deflections typical in long conveyor spans where structural flexing occurs under load. The double-row configuration inherently accommodates angular misalignment, protecting the shaft from excessive bending stresses. Our engineering team cross-references OEM shaft tolerances to guarantee the sleeve drive-up distance leaves adequate residual internal clearance, ensuring smooth rotation even when the housing bore is slightly out of square.

Navigating Washdowns and High-Speed Thermal Loads

Food packaging environments demand rigorous attention to lubrication and sealing, especially when high rotational speeds generate significant friction heat. Standard grease formulations may wash out during routine sanitation cycles, necessitating specialized food-grade lubricants or external relubrication setups for open variants. Furthermore, continuous operation elevates inner ring temperatures, making the selection of appropriate radial internal clearance critical to prevent the rolling elements from binding under thermal growth. If the equipment undergoes frequent high-pressure washdowns, specifying shielded or sealed variants prevents moisture ingress, though this introduces additional friction that must be factored into the thermal management strategy [NEED_CITE: thermal management in high-speed rotating machinery].

Decoding the K Suffix and Load Capacities

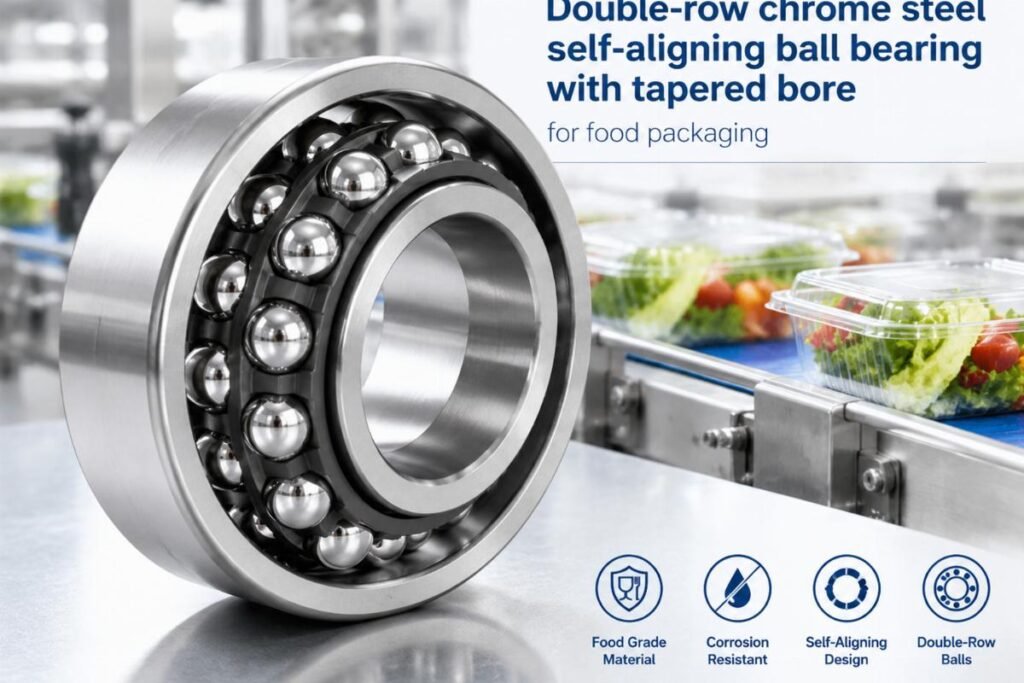

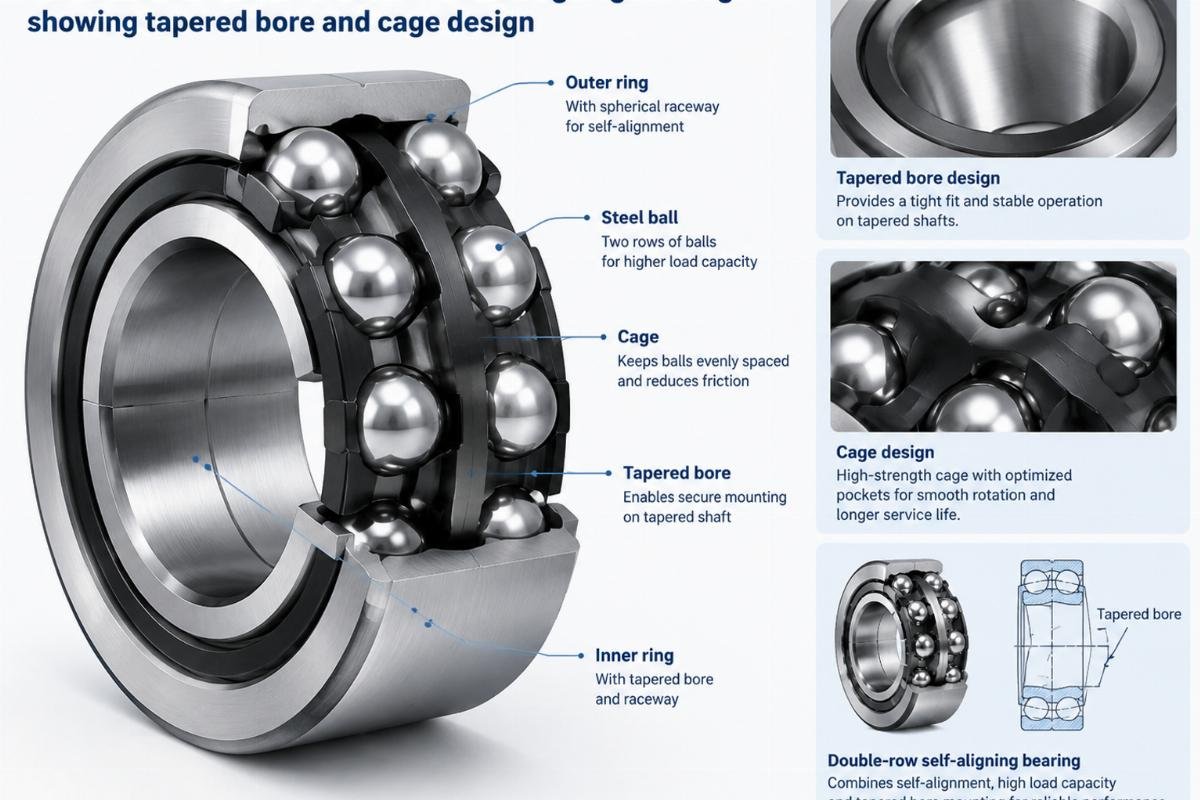

The K suffix explicitly denotes a 1:12 tapered bore, requiring precise calculation of the drive-up distance on the adapter sleeve to achieve the correct residual clearance. With a dynamic load rating of 12.7 kN and a static load rating of 3.7 kN, these double-row units handle moderate radial loads while accommodating angular misalignment. The Chrome Steel Gcr15 / 100cr6 material provides reliable wear resistance for standard operating temperatures, though alternative materials are available for highly corrosive washdown zones. The self-aligning capability stems from the spherical outer ring raceway, allowing the inner ring and ball assembly to pivot freely relative to the outer ring, which is essential for shafts that experience dynamic deflection during operation.

The Financial Impact of Clearance and Suffix Mismatches

Deploying a standard clearance bearing in a high-speed thermal environment inevitably leads to premature fatigue and catastrophic raceway spalling. According to ISO 15243 frameworks, inadequate internal clearance ranks among the top failure modes for continuously rotating shafts. The resulting unplanned downtime on a continuous packaging line far exceeds the initial component cost, often voiding equipment warranties and damaging adjacent drive components. Furthermore, ignoring the ISO 281 life calculation parameters by misjudging the operating temperature will result in overly optimistic maintenance schedules. This forces maintenance teams into reactive firefighting rather than executing planned, cost-effective replacements during scheduled sanitation breaks [NEED_CITE: ISO 15243 rolling bearing damage classification].

Securing Traceability and Technical Alignment

Sourcing genuine multi-brand inventory requires more than just matching part numbers; it demands verifying the exact suffix and clearance codes across different manufacturer catalogs. We provide complete traceability documentation for every KOYO, NTN, or NSK unit shipped, ensuring the metallurgical origin matches your quality protocols. Our technical team actively reviews your equipment OEM requirements to prevent the exact clearance oversights that derail high-speed packaging operations. By consolidating mixed-brand and mixed-size orders into single shipments, we eliminate the logistical friction of coordinating multiple suppliers. This approach guarantees that every unit, from the smallest emergency spare to full container loads, meets the exact technical specifications your maintenance schedule demands.

Documentation & Authenticity

• Certificate of Conformity verifying the exact 2304K to 2311K designation and origin.
• Original manufacturer batch traceability records for Chrome Steel Gcr15 material verification.
• Official brand app QR codes for instant authenticity checks on NTN and NSK cartons.
• Dimensional inspection reports confirming the 1:12 tapered bore angle before dispatch.
• Running accuracy test certificates validating double-row alignment performance.

Storage, Handling & Mounting

• Store the K-tapered units in original packaging to prevent humidity ingress on the Gcr15 steel surfaces.
• Use induction heaters for mounting the adapter sleeves, avoiding open flames that alter the chrome steel metallurgy.
• Calculate the exact drive-up distance for the 1:12 taper to preserve the specified internal clearance.
• Apply food-grade grease immediately after unsealing open variants destined for washdown environments.
• Keep matched sets of adapter sleeves and lock nuts sealed until the exact moment of installation.

Preparing Your Technical Requirements

To ensure accurate cross-referencing and L10 life calculations, please share your specific radial and axial loads, operating speeds, and ambient temperature profiles. Providing the OEM equipment model numbers allows our team to verify the exact adapter sleeve dimensions and clearance requirements. Detail any exposure to caustic cleaning agents so we can recommend the appropriate sealing or material configuration for your packaging line. Supplying these operational parameters enables our engineers to validate the dynamic load rating against your actual duty cycle, ensuring the selected units deliver optimal service life without premature degradation.

Frequently Asked Questions

Q: How do I verify the authenticity of KOYO, NTN, and NSK bearings?

A: We supply original manufacturer batch traceability documents and official QR verification codes for every shipment. You can scan the carton labels using the respective brand's official mobile application to confirm the metallurgical origin and production facility. This ensures the OZD KOYO NTN NSK 2304K 2305K 2306K 2307K 2308K 2309K 2310K 2311K self-aligning ball bearing units meet strict quality protocols.

Q: What does the K suffix mean for mounting these bearings?

A: The K suffix indicates a 1:12 tapered bore designed to mount securely on adapter sleeves. This configuration requires calculating the precise drive-up distance to lock the inner ring without eliminating the internal radial clearance. Proper installation ensures the double-row design maintains its self-aligning capability under dynamic loads.

Q: How do I ensure clearance classes align when cross-referencing models?

A: Cross-referencing requires matching not just the base dimension, but the exact internal clearance and tolerance classes across different brand catalogs. Our engineering team reviews your operating temperatures and speeds to specify the correct C3 or C4 clearance, preventing the thermal seizure issues common in high-speed food packaging applications.

Q: What lubrication is recommended for high-speed food packaging applications?

A: High-speed rotary fillers generate significant friction heat, requiring lubricants with high thermal stability and mechanical shear resistance. For open bearing variants, we recommend regular relubrication intervals using food-grade synthetic greases that withstand routine sanitation washdowns without degrading the chrome steel raceways or cage components.
