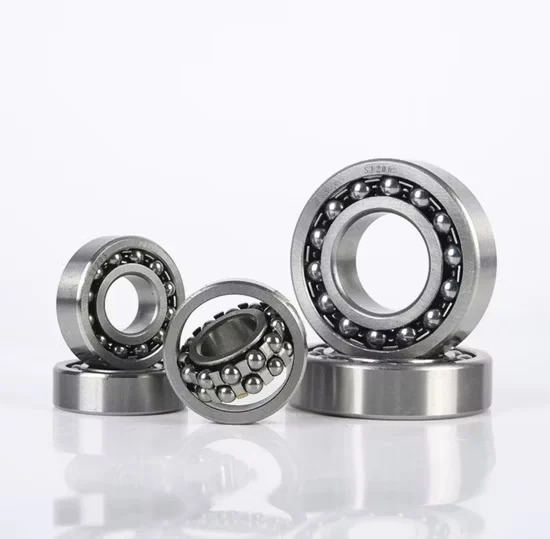

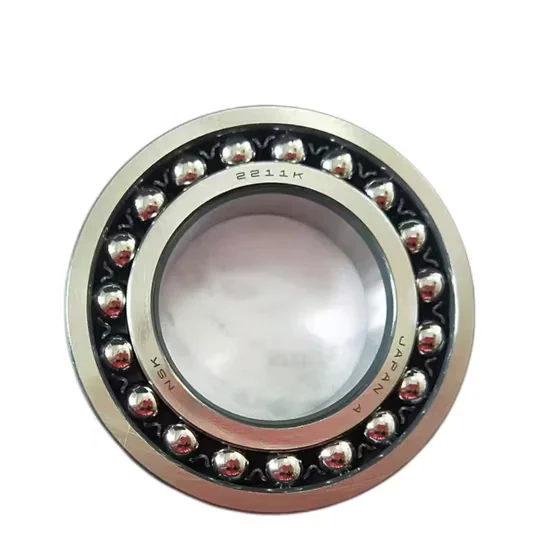

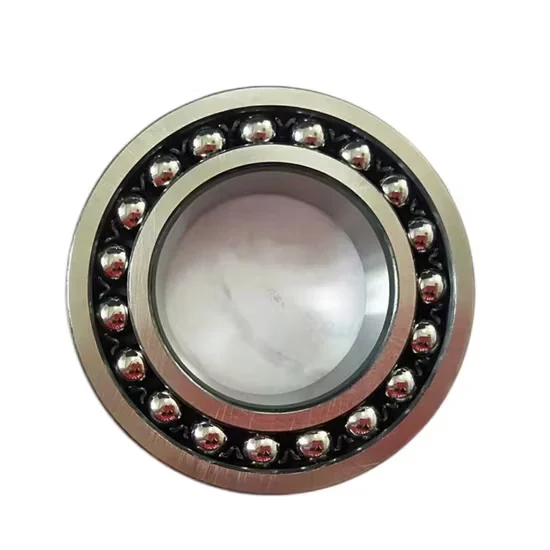

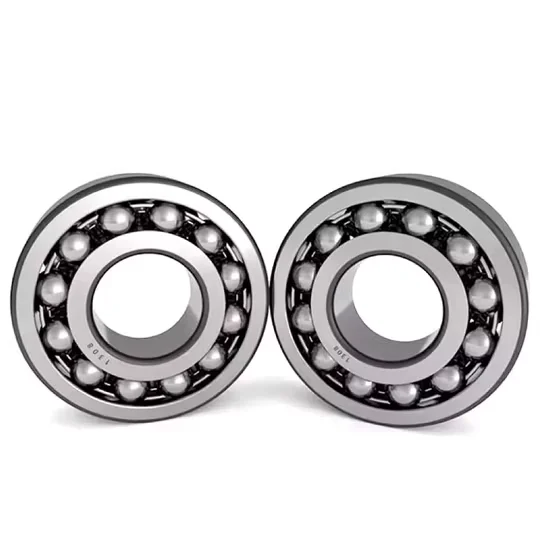

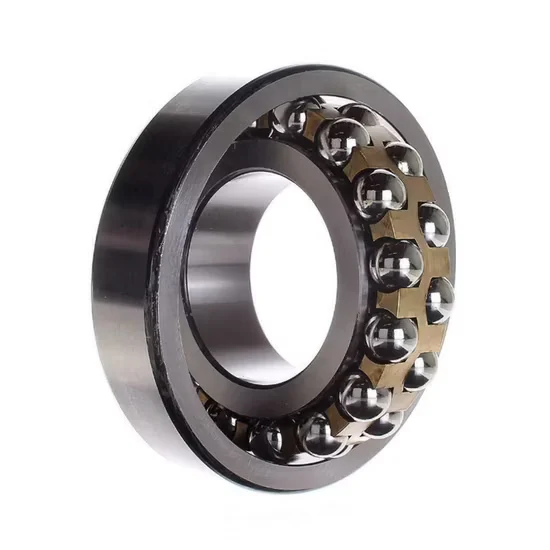

2205 E 2RS1tn9 Self Aligning Double Row Ball Bearings Chrome Steel [WARN] draft identifier mismatch

Consolidated Multi-Brand Sourcing — Procure the 2205 E 2RS1tn9 alongside SKF, FAG, or domestic equivalents in a single mixed-brand shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Open Bearings Fail in Textile and Agricultural Environments

Sealed designs prevent fiber and dust ingress that rapidly destroys internal raceways.

Early in my career sourcing for a Vietnamese textile mill, I ordered basic 2205 bearings but missed the sealing suffix. The open variants quickly ingested cotton fly waste, seizing the drafting rollers and halting production entirely. Contaminated environments demand strict suffix verification to avoid catastrophic downtime and secondary mechanical damage [NEED_CITE: bearing failure modes caused by solid particle contamination per ISO 15243]. Ignoring the seal specification transforms a minor procurement oversight into a major operational crisis.

Matching the 2205 E 2RS1tn9 Self-Aligning Ball Bearing to Misaligned Shafts

Textile spinning frames and agricultural harvesters frequently suffer from shaft deflection, housing distortion, and thermal expansion. The 2205 E 2RS1tn9 self-aligning ball bearing accommodates these inevitable angular errors while the reinforced internal geometry handles moderate radial loads effectively. Our engineering team cross-references OEM specifications to ensure this exact configuration matches your machinery's operational envelope, preventing premature edge loading on the raceways.

Navigating Contamination and Friction in Fiber-Heavy Facilities

Yarn fly, seed dust, and agricultural chaff easily penetrate standard metal shields, turning lubricants into a highly abrasive paste. Double contact seals provide a tight elastomeric lip seal against fine particulates, though they introduce slightly higher friction than non-contact shields. Proper selection carefully balances the absolute exclusion of contaminants with the thermal limits of the polyamide cage during continuous high-speed operation [NEED_CITE: friction torque comparison between contact seals and shields].

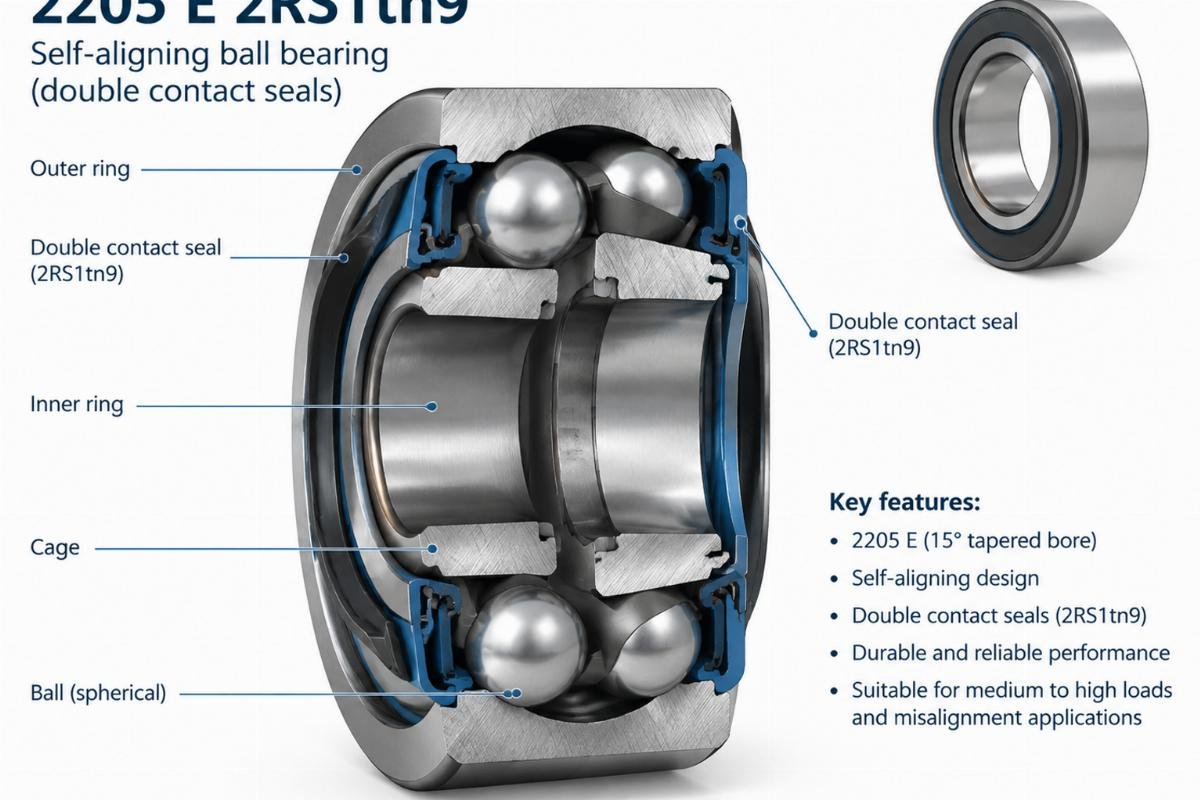

Decoding the E, 2RS1, and tn9 Suffixes for Operational Reliability

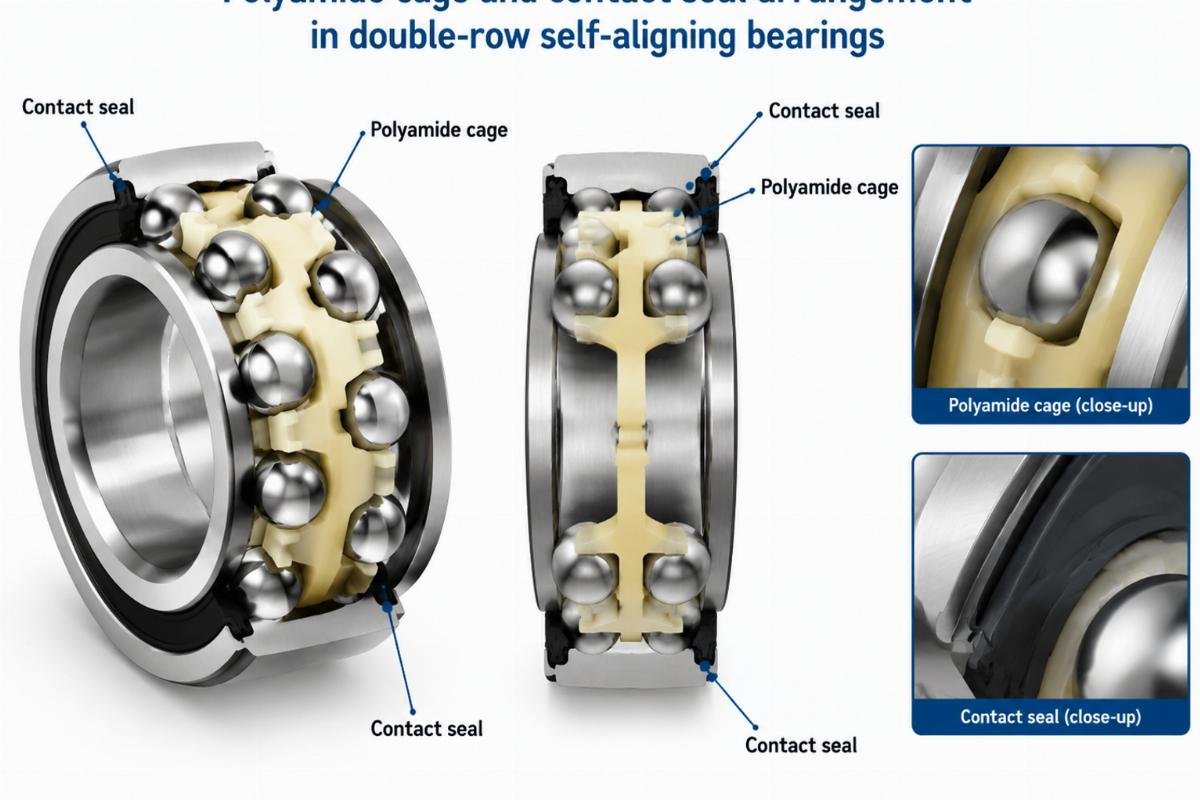

The 'E' suffix denotes a reinforced internal design with an optimized ball complement, noticeably increasing load-carrying capacity compared to the standard series. The '2RS1' indicates double contact seals that retain factory grease and block moisture ingress, making it a strictly non-relubricatable unit. Meanwhile, the 'tn9' glass fiber reinforced polyamide cage offers exceptionally low friction and high-speed capability. However, it requires careful monitoring in elevated temperature zones beyond standard grease limits to prevent cage degradation.

The Hidden Financial Impact of Incorrect Seal and Cage Selection

Specifying an open bearing in a dusty textile mill inevitably leads to premature seizure, causing unplanned downtime and secondary damage to drive belts, motors, and gearboxes. Similarly, selecting a heavy brass cage where lightweight polyamide is required can alter operating clearances and increase rotational noise. Such specification mismatches routinely result in warranty voidance, recurring maintenance costs, and compromised product quality [NEED_CITE: economic impact of unplanned machinery downtime in manufacturing].

Securing Traceable Inventory and Accurate Suffix Matching

We maintain massive spot inventory of the 2205 E 2RS1tn9 self-aligning ball bearing, effectively eliminating typical multi-week lead times for urgent maintenance. Our technical team strictly verifies suffix combinations to prevent the costly open-versus-sealed mistakes I witnessed firsthand in Vietnam. We provide flexible consolidation, allowing you to mix this specific double-row unit with heavy-duty spherical roller bearings in a single container, backed by full batch traceability and comprehensive documentation.

Documentation & Authenticity

• Original batch traceability documentation confirming the exact 2RS1 seal and tn9 cage configuration from the manufacturer's production facilities.
• Material inspection reports verifying Gcr15 / 100cr6 chrome steel chemistry, hardness, and microstructure before final assembly.
• Dimensional and running accuracy inspection reports ensuring ISO-compliant tolerances and smooth rotation before dispatch.
• Certificate of Conformity matching the specific reinforced 'E' internal design parameters and load ratings.

Storage, Handling & Mounting

• Keep the 2RS1 sealed units in original packaging until mounting to protect the elastomeric contact lips from ambient dust.
• Avoid heating the tn9 polyamide cage beyond its thermal limit during induction mounting processes to prevent polymer deformation.
• Do not wash the pre-lubricated 2205 E variants, as solvent exposure degrades the factory-filled grease behind the seals.
• Support the inner ring during press-fitting to prevent transferring mounting forces through the delicate glass fiber cage.

Technical Data Required for Precision Selection

To verify the suitability of this configuration, share your radial and axial load profiles, operating speeds, and ambient temperature ranges. Providing the OEM equipment model number allows our engineers to perform cross-reference alignment and confirm the L10 life calculation for your specific textile or agricultural application.

Frequently Asked Questions

Q: What does the tn9 suffix indicate for this self-aligning bearing?

A: The tn9 suffix specifies a glass fiber reinforced polyamide cage. This material reduces friction and supports higher speeds compared to pressed steel cages, making it ideal for textile drafting rollers. However, its operating temperature is limited by the thermal boundaries of the polymer and the factory-filled grease.

Q: Can I relubricate the 2RS1 sealed version in the field?

A: No, the 2RS1 designation means the bearing features double contact seals designed to retain factory lubrication and exclude contaminants. Attempting to force new grease past these tight lips will damage the seal structure. For relubricatable setups, an open or shielded variant must be specified instead.

Q: How does the E suffix affect the load capacity?

A: The E suffix denotes a reinforced internal design with an optimized ball complement. This configuration noticeably increases the dynamic load rating compared to standard non-E variants. It is highly recommended for agricultural conveyors where moderate radial loads and shaft deflections are constantly present during operation.

Q: What information do you need to cross-reference this bearing?

A: Please provide the OEM equipment model, the original bearing part number, and the specific operating environment. This allows our team to verify clearance, seal type, and cage material compatibility, ensuring the replacement matches the exact mechanical requirements of your textile or agricultural machinery.
