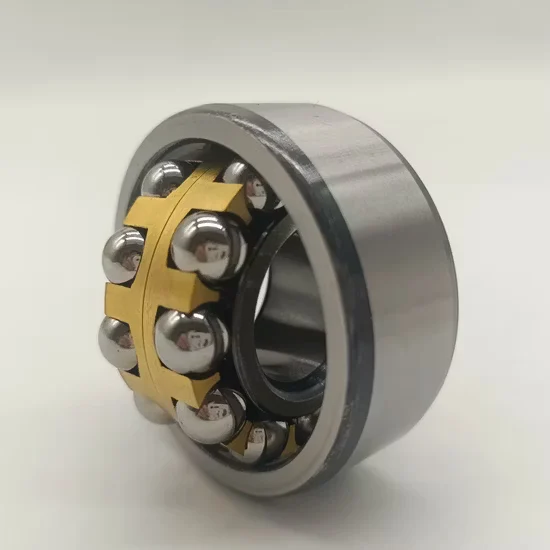

1204 2RS Tn9 C3 Self-Aligning Ball Bearing Double Row Sealed

Cross-Reference Alignment Verified — We validate cage material, clearance class, and seal type against OEM equivalents before dispatching this double-row unit.

Technical Specifications

*The 2RS suffix indicates contact seals but remains an unverified designation requiring manufacturer catalog confirmation for exact seal geometry.

Application Suitability

Why Dust Ingress Destroys the 1204 2RS Tn9 C3 Self-Aligning Ball Bearing Before Fatigue Does

Non-contact shields fail in fine particulate environments, making sealed variants essential for agricultural and textile survival.

Back at the Suzhou agricultural machinery plant, I watched harvesters tear through non-contact shielded bearings in weeks. Fine crop dust bypassed the metal shields, turning the grease into an abrasive paste. Relying on contact seals and proper internal clearance prevents this catastrophic contamination, extending service intervals significantly [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Seal Geometry to Particulate Exposure

When shaft misalignment combines with heavy dust, the 1204 2RS Tn9 C3 self-aligning ball bearing relies on its contact seals to block ingress. Our sourcing network ensures these specific sealed variants are available alongside open or shielded alternatives, allowing maintenance teams to swap failing configurations without redesigning the entire housing assembly. We frequently see facilities struggle with mixed-brand packages, so we consolidate exact suffix matches to keep your inventory standardized.

Managing Thermal Expansion and Misalignment

Agricultural and conveyor shafts often deflect under uneven crop loads or belt tension. This misalignment generates localized heat, which standard internal clearances cannot accommodate. Furthermore, fine textile lint or soil dust demands physical barriers rather than simple grease purging. Selecting the right seal friction balance and thermal clearance prevents the rolling elements from skidding or seizing inside the raceway. Ignoring these operational variables often leads to rapid degradation in demanding field conditions [NEED_CITE: thermal expansion effects on bearing internal clearance].

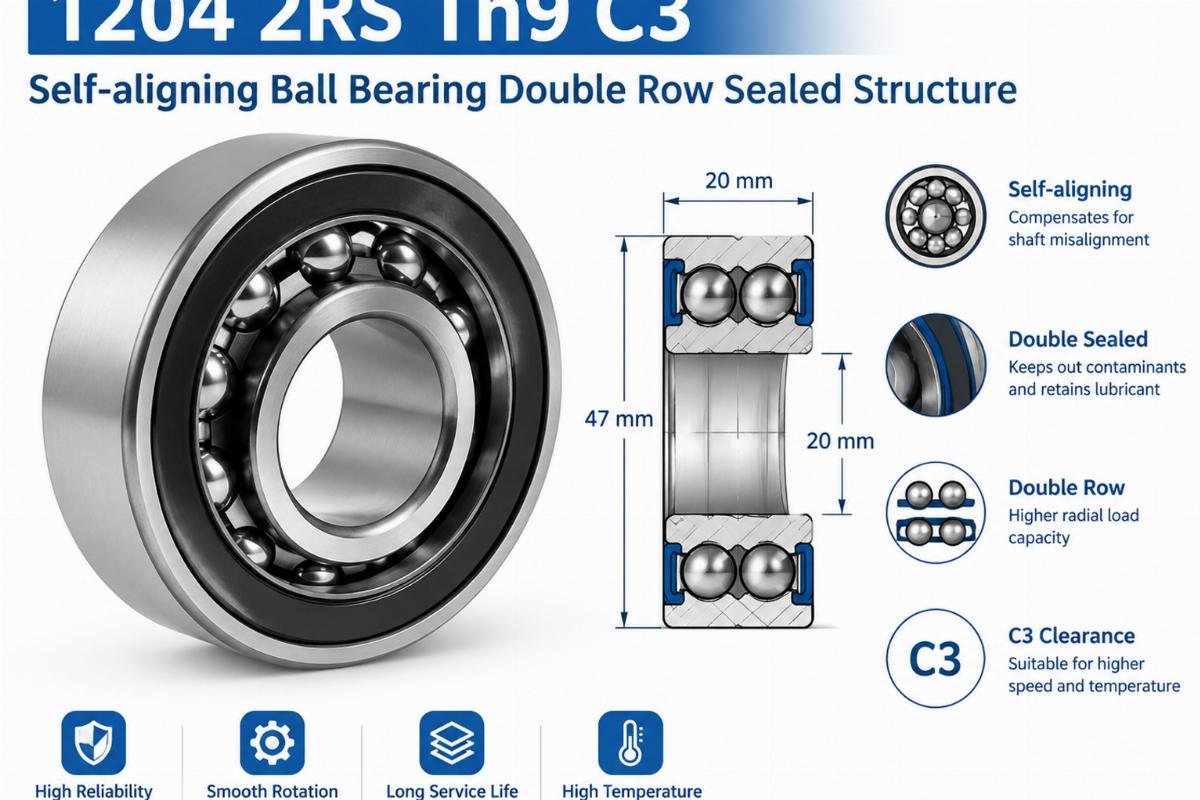

Decoding the Suffix Stack for Field Reliability

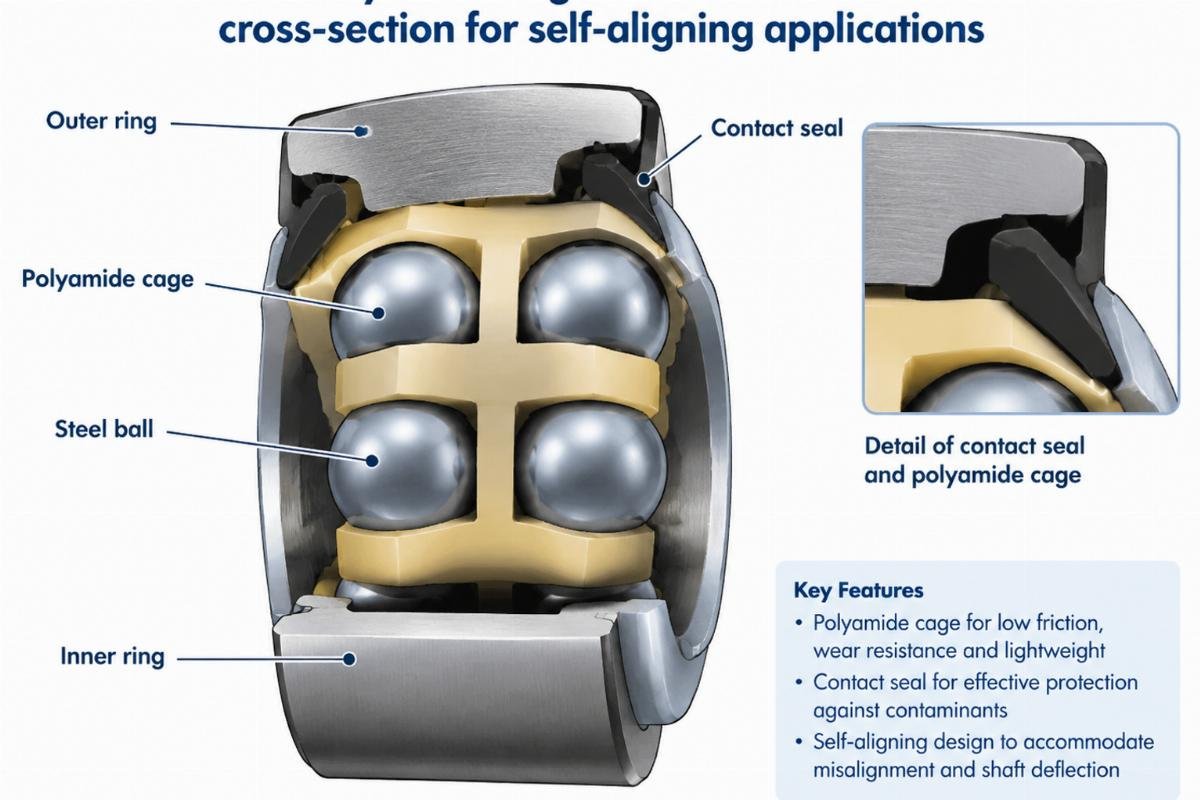

The Tn9 cage utilizes glass fiber reinforced polyamide, which maintains structural integrity and reduces friction at higher rotational speeds compared to stamped steel. Meanwhile, the C3 clearance provides the necessary thermal buffer when the inner ring expands due to friction or ambient heat. Together with the double-row self-aligning geometry, these features allow the bearing to tolerate angular misalignment without binding the rolling elements against the raceway shoulders. This specific combination is vital for equipment experiencing both shaft deflection and thermal cycling.

The Downtime Penalty of Ignoring Suffix Details

Installing a standard clearance bearing in a high-temperature conveyor application leads to rapid preload buildup and premature seizure. Similarly, substituting contact seals with open bearings in dusty fields voids any expected lifespan. These mismatches trigger unplanned downtime and catastrophic damage to adjacent shaft components, violating the operational boundaries defined in ISO 281 for dynamic load capacity. Maintenance teams often overlook these suffix nuances, resulting in repeated failures that disrupt entire production lines [NEED_CITE: ISO 281 dynamic load rating calculation methods].

Securing Exact Suffix Configurations Across Brands

Sourcing a specific cage and clearance combination often results in compromised substitutes from local distributors. We maintain massive spot inventory covering thousands of part numbers, ensuring the exact polyamide cage and C3 clearance you specified arrives without substitution. Our technical team cross-references equivalent models across premium global brands, guaranteeing the seal geometry and dimensional tolerances match your original equipment requirements perfectly. This prevents the frustrating delays caused by receiving incorrect variants during urgent maintenance shutdowns.

Documentation & Authenticity

• Original factory batch traceability linking the polyamide cage material to specific production runs.

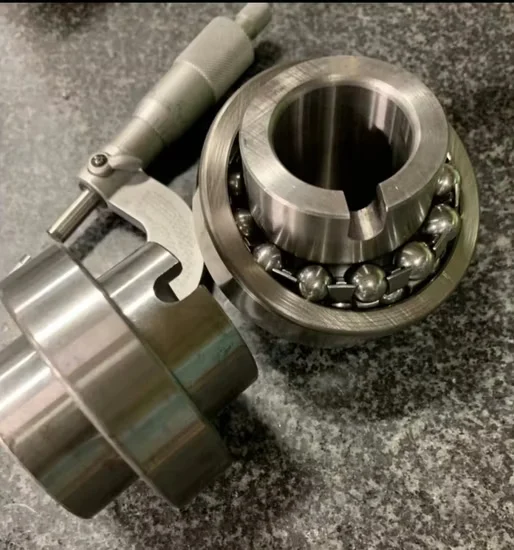

• Dimensional inspection reports verifying C3 internal clearance before the sealed units leave the warehouse.
• Certificate of Conformity confirming the chrome steel metallurgy meets international bearing standards.
• Cross-reference alignment documents validating the seal type against your OEM part numbers.

Storage, Handling & Mounting

• Keep the contact seals intact in original packaging to prevent dust from compromising the lip geometry before installation.
• Use induction heating for the inner ring to preserve the C3 clearance and avoid damaging the polyamide cage.
• Store in a climate-controlled environment to prevent condensation from degrading the grease behind the 2RS seals.
• Avoid using carbon steel tools near the exposed polyamide cage during mounting to prevent particulate contamination.

Preparing Your Technical Parameters for Verification

To ensure this exact 1204 2RS Tn9 C3 self-aligning ball bearing configuration suits your machinery, share your radial and axial load profiles, operating speeds, and ambient temperature ranges. Providing the OEM equipment number allows our engineering team to perform a cross-reference check and validate the L10 life calculation. We will confirm whether the polyamide cage and C3 clearance align with your specific misalignment and thermal conditions.

Frequently Asked Questions

Q: How does C3 clearance differ from standard clearance in this self-aligning bearing?

A: Standard clearance suits normal operating temperatures, but C3 provides extra internal space to accommodate thermal expansion from friction or hot environments. This prevents the rolling elements from binding when the inner ring expands, which is critical for conveyors and agricultural shafts experiencing temperature fluctuations.

Q: Can I replace a shielded bearing with this contact-sealed version?

A: Yes, contact seals offer superior protection against fine dust and moisture compared to non-contact metal shields. However, they generate slightly more friction. If your application involves heavy particulate contamination like agricultural dust, the sealed variant significantly extends service life by keeping abrasives out of the grease.

Q: What are the limits of the glass fiber reinforced polyamide cage?

A: This cage material reduces friction and handles higher speeds well, but it has temperature limits. It performs excellently in standard industrial and agricultural environments but should not be used in applications exceeding its thermal threshold or where aggressive chemical solvents are present.

Q: How do you verify the exact suffix configuration before shipping?

A: We cross-reference the cage material, clearance class, and seal type against manufacturer catalogs and OEM equivalents. Our inspection process includes checking the internal clearance and verifying the seal geometry to ensure the dispatched unit matches the exact 1204 2RS Tn9 C3 specification you ordered.
