Double Row Nylon Self Aligning Ball Bearing 2317 Supplier

Authenticity via QR Verification — Every shipment includes scannable manufacturer QR codes to validate batch origin and material traceability directly on site.

Technical Specifications

Application Suitability

Why Cage Material Dictates Survival in High-Vibration Textile Mills

Nylon cages absorb shock loads that shatter pressed steel alternatives.

When sourcing replacement parts for continuous-operation machinery, selecting the wrong internal component leads to catastrophic cage fragmentation. I learned this the hard way after shipping standard steel-caged units to a US paper mill, only to see them fail prematurely under high-vibration conditions. A reliable double row nylon self aligning ball bearing supplier understands that polymer cages dampen impact forces, preventing the early fatigue fractures that plague metallic retainers in misaligned shafts [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Polymer Retainers to Dynamic Misalignment

Choosing the right double row nylon self aligning ball bearing supplier ensures your equipment handles moderate radial loads while accommodating shaft deflection. The self-aligning capability compensates for housing machining errors, while the nylon retainer reduces friction during continuous rotation. Our engineering team cross-references your operational parameters to ensure the selected polymer grade withstands the specific thermal and chemical environment of your textile or agricultural machinery.

Managing Thermal and Contamination Challenges

Shaft misalignment generates localized heat, which degrades standard lubricants and accelerates wear. In agricultural and material handling environments, airborne dust infiltrates the rolling elements, acting as an abrasive paste. Nylon retainers operate quietly and generate less friction heat, but they require careful monitoring of ambient temperatures to avoid thermal softening. Proper sealing selection is critical to block particulate ingress without introducing excessive drag that could compromise the self-aligning function [NEED_CITE: bearing contamination impact on fatigue life per ISO 281].

Material and Cage Selection for Specific Environments

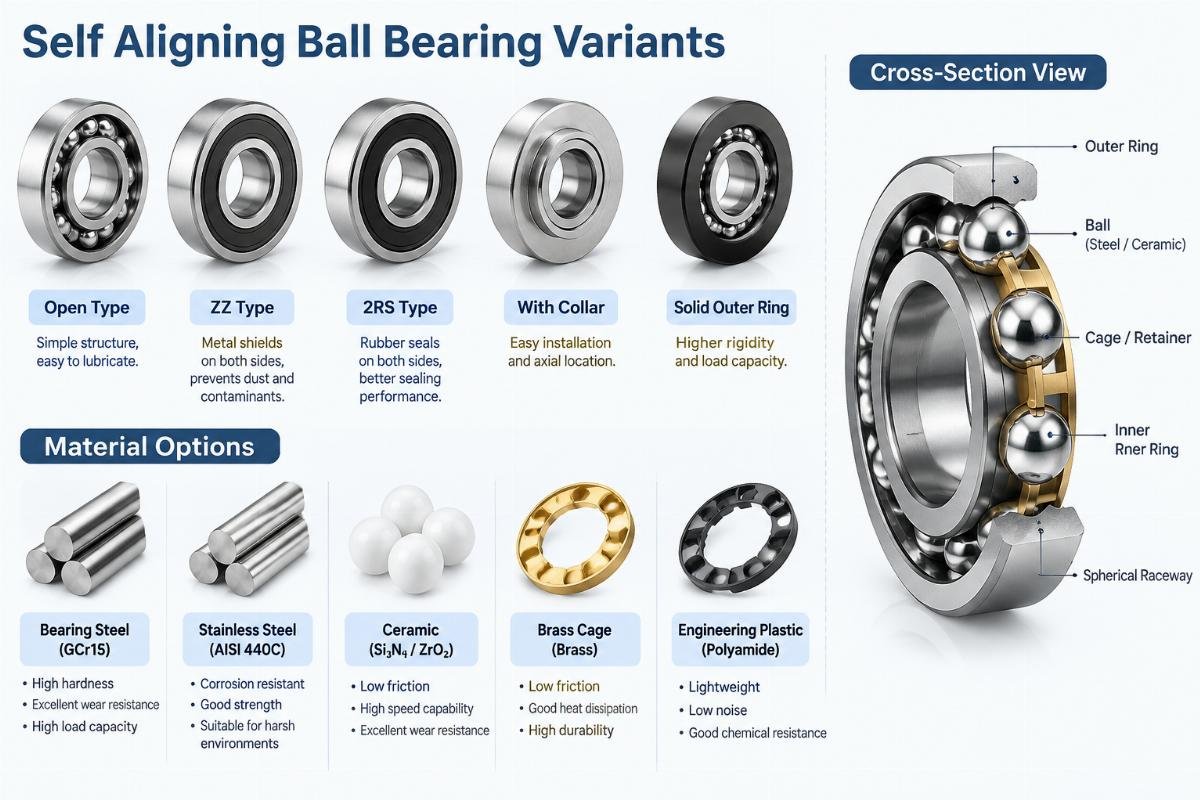

While chrome steel GCr15 provides excellent hardness and fatigue resistance for standard industrial applications, corrosive environments demand stainless steel variants. The choice of cage material fundamentally alters the operational envelope. Pressed steel cages fail under severe vibration, whereas brass retainers handle higher speeds but add weight. Nylon cages offer the optimal balance of shock absorption and low-friction performance for moderate-temperature applications, ensuring the rolling elements remain correctly spaced even when the inner ring tilts relative to the outer ring.

The Financial Impact of Premature Cage Fragmentation

Ignoring the interaction between cage material and operational vibration results in unplanned downtime and secondary equipment damage. When a pressed steel cage fractures under shock loading, the rolling elements cluster together, causing immediate seizure and shaft scoring. This catastrophic failure mode voids warranty claims and forces complete assembly replacements rather than simple component swaps. Aligning material specifications with actual dynamic loads prevents these compounding maintenance costs [NEED_CITE: financial impact of unplanned downtime in heavy machinery].

Procurement Advantages for Mixed-Fleet Maintenance

Sourcing from a specialized double row nylon self aligning ball bearing supplier eliminates the guesswork in cross-referencing obsolete OEM part numbers. We consolidate mixed-brand and mixed-size packages into single shipments, reducing freight complexity for global MRO projects. Every unit undergoes strict dimensional verification to ensure the self-aligning curvature matches your housing tolerances. Our technical team provides failure analysis support, helping you transition from failing steel-caged designs to durable nylon alternatives based on actual field vibration data.

Documentation & Authenticity

• Batch-specific material certificates confirming GCr15 or stainless steel chemistry
• Dimensional inspection reports verifying self-aligning outer ring curvature tolerances
• Scannable QR codes linking to original manufacturer production records
• Cage material validation reports confirming nylon thermal limits
• Certificate of Conformity detailing ISO-compliant manufacturing standards

Storage, Handling & Mounting

• Store nylon-caged units away from direct UV exposure to prevent polymer degradation
• Maintain original packaging until installation to protect the self-aligning outer ring raceway
• Use induction heaters for inner ring mounting to avoid damaging the nylon retainer
• Avoid aggressive solvents during cleaning that could compromise the polymer cage structure
• Verify shaft and housing tolerances to ensure the self-aligning feature functions correctly

Engineering Data Required for Precise Selection

To determine the exact model and clearance class, provide your equipment's operational parameters, including radial and axial loads, rotational speed, and ambient temperature range. Specify the housing bore and shaft diameters to verify dimensional compatibility. Detailing the environmental exposure, such as moisture or chemical agents, allows our team to recommend the appropriate material variant and sealing configuration for your specific application.

Frequently Asked Questions

Q: How do I determine the exact bearing model for my conveyor system?

A: Provide the shaft diameter, housing bore, rotational speed, and estimated radial loads. Our engineering team uses these parameters to calculate the required dynamic load rating and select the appropriate internal clearance. We also evaluate the misalignment angle to ensure the self-aligning capacity matches your specific conveyor structural deflection.

Q: What are the common failure modes in misaligned shaft applications?

A: Misalignment typically causes edge loading on the rolling elements, leading to premature fatigue and cage wear. If the cage material cannot absorb the resulting vibration, it fractures and causes bearing seizure. Upgrading to a nylon cage mitigates this by dampening shock loads and accommodating the angular displacement without excessive friction.

Q: Should I choose chrome steel or stainless steel for agricultural machinery?

A: Chrome steel offers superior load capacity and fatigue life for standard dry environments. However, agricultural machinery frequently encounters moisture, fertilizers, and washdown procedures. In these corrosive conditions, stainless steel variants provide substantially higher corrosion resistance, preventing raceway pitting and extending the operational lifespan despite a slight reduction in dynamic load capacity.

Q: How does a nylon cage compare to pressed steel in high-vibration environments?

A: Nylon cages are noticeably lighter and possess inherent damping properties that absorb shock loads and reduce operational noise. Pressed steel cages are prone to fatigue cracking under continuous high-frequency vibration. For applications like textile machinery or vibrating screens, the polymer retainer prevents cage fragmentation and maintains proper rolling element spacing.

Q: What documentation is provided to verify bearing authenticity?

A: Each shipment includes a Certificate of Conformity, original batch traceability records, and material inspection reports. We also provide scannable QR codes that link directly to the manufacturer's production database, allowing you to verify the exact chemical composition and dimensional tolerances of the specific units received.
