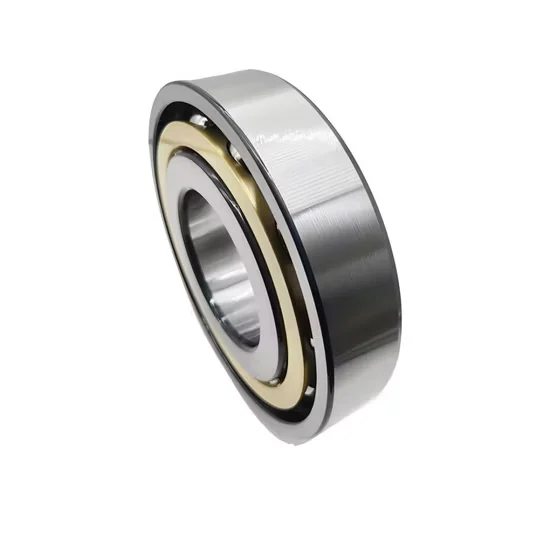

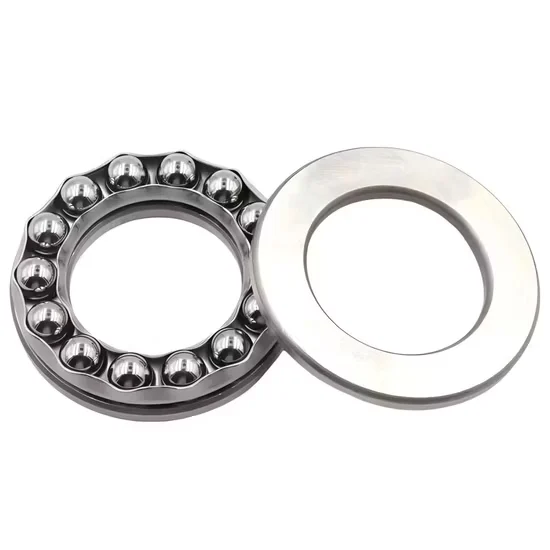

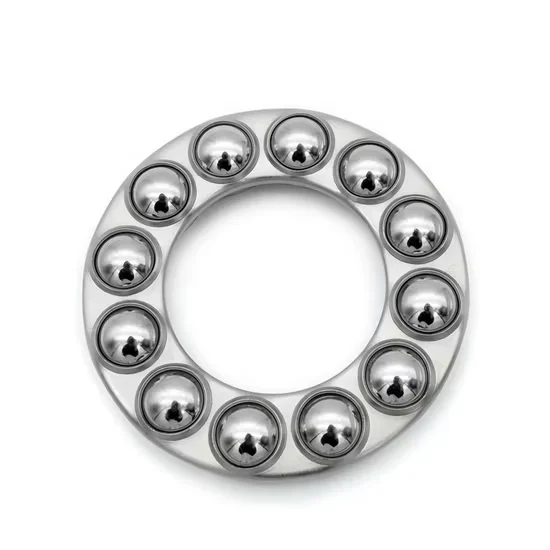

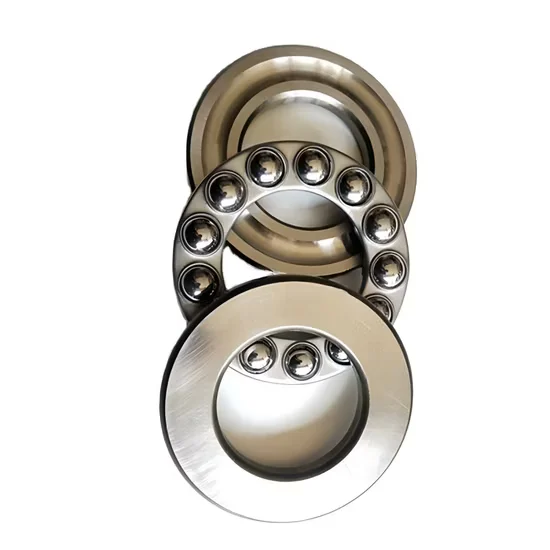

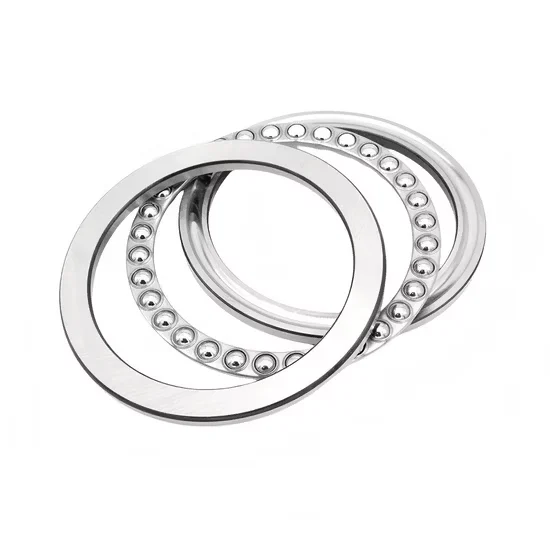

Composite Thrust Angular Contact Ball Combination Bearing Lfr Lr Series

Original Factory Batch Traceability — Every shipment includes verifiable mill certificates linking the GCr15 steel heat number to the final precision grinding records.

Technical Specifications

Application Suitability

Preventing Axial Drift: What a Reliable composite thrust angular contact ball bearing supplier Actually Delivers

Precision axial positioning demands more than just nominal load ratings; it requires strict control over manufacturing tolerances and material consistency.

Early in my career analyzing field failures in Riyadh, I dismantled a composite thrust arrangement where the inner ring showed severe wear. The root cause was not the load, but thermal expansion mismatch due to incorrect clearance selection under high-temperature operation, leading to complete seizure [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. This experience dictates how we evaluate manufacturing consistency before dispatch.

Matching Material Options to Axial Load Profiles

When specifying components for high-speed pumps or robotic joints, the axial load profile dictates the optimal internal geometry. As a dedicated composite thrust angular contact ball bearing supplier, we provide configurations in GCr15 (SUJ2) bearing steel, which offers excellent contact fatigue strength for sustained unidirectional thrust loads. Selecting the appropriate row arrangement ensures the rigidity matches the specific reversing or continuous axial forces of your application.

Managing Thermal Expansion and Lubrication Boundaries

In machine tool ball screws, continuous operation generates significant heat, directly impacting internal clearance and lubricant viscosity. An open seal design facilitates optimal oil-air or oil-jet lubrication, preventing the friction heat buildup that sealed variants might trap. If the thermal expansion of the shaft and housing is not compensated by the correct initial clearance, the rolling elements can experience excessive preload, accelerating surface fatigue [NEED_CITE: thermal displacement effects on bearing internal clearance]. Proper cage selection further stabilizes the rolling element guidance under these fluctuating thermal conditions.

Decoding Precision Classes and Cage Configurations

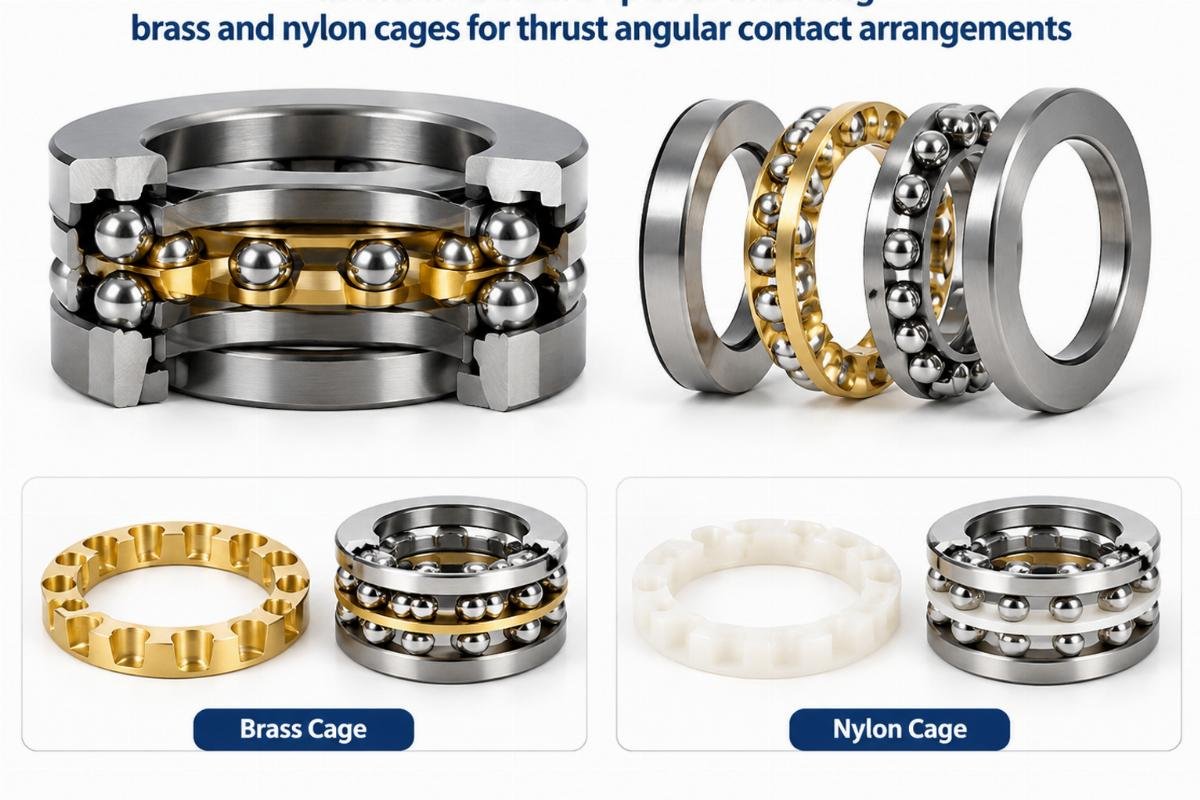

The transition from P0 to P2 precision fundamentally alters the axial runout and dimensional tolerances, which is critical for optical measurement stages. While standard grades suffice for general industrial pumps, ultra-precision machine tools require P4 or P2 classes to maintain sub-micron positioning accuracy. Furthermore, cage material selection defines the operational envelope: machined brass cages handle higher speeds and heavy vibrations, polyamide cages offer quieter operation with lower friction, and pressed steel cages provide a balanced cost-to-performance ratio for moderate duty cycles.

The Cascading Impact of Incorrect Clearance Selection

Overlooking the thermal dynamics of the application often results in unplanned downtime and catastrophic damage to the surrounding precision mechanics. When a bearing seizes due to thermal expansion eliminating the internal clearance, the resulting friction can destroy the ball screw nut and damage the motor coupling. Such premature failures not only void equipment warranties but also halt entire production lines, emphasizing the need for rigorous application analysis rather than relying solely on catalog load ratings [NEED_CITE: ISO 281 framework for bearing life and failure analysis].

Engineering Support Beyond the Catalog

Procuring precision components from a verified composite thrust angular contact ball bearing supplier requires more than just inventory; it demands technical validation. We cross-reference your equipment parameters to recommend the exact precision class and cage material, preventing the clearance mismatches I witnessed in the field. Our flexible sourcing allows mixed-brand consolidation, meaning you can secure both premium international lines and reliable domestic alternatives in a single shipment. Every order includes full traceability documentation, ensuring the material properties meet your exact metallurgical requirements.

Documentation & Authenticity

• Material test reports verifying GCr15 (SUJ2) chemical composition and hardness.
• Dimensional inspection certificates confirming P4 or P2 axial runout tolerances.
• Original factory batch traceability linking heat numbers to final grinding records.
• Certificate of Conformity validating the specified single or double row arrangement.
• Surface roughness and precision class verification documents prior to dispatch.

Storage, Handling & Mounting

• Store open-type bearings in original packaging to prevent particulate contamination on the precision-ground raceways.
• Use clean, lint-free gloves when handling P2 class components to avoid skin acid corrosion on the GCr15 steel surfaces.
• Maintain strict temperature control in the storage area to prevent condensation inside the unsealed single or double row configurations.
• Apply the specified precision spindle oil immediately before mounting to protect the brass or nylon cage assemblies.
• Verify the mounting direction of the unseparated rings to ensure the thrust load is correctly transferred to the housing shoulder.

Defining Your Application Parameters

To ensure the selected configuration perfectly aligns with your machine tool or robotic system, please provide the specific axial and radial load profiles, operating speeds, and thermal conditions. Share the available installation space and the required positioning accuracy so our engineering team can determine the exact precision class and cage material. Detailing the operating environment allows us to finalize the optimal internal clearance and lubrication strategy.

Frequently Asked Questions

Q: How do I determine the specific model and precision class for my ball screw application?

A: Determining the exact configuration requires analyzing the axial load, maximum rotational speed, and required positioning accuracy. Share your equipment specifications and thermal operating conditions with our engineering team. We will calculate the required dynamic load rating and recommend the appropriate P-class tolerance and internal clearance to prevent thermal seizure and ensure long-term rigidity.

Q: What are the selection boundaries for brass, nylon, and steel cages in these applications?

A: Machined brass cages are ideal for high-speed operations and heavy vibration environments due to their structural strength. Polyamide nylon cages offer lower friction and quieter operation, suitable for precision equipment with moderate speeds. Pressed steel cages provide a reliable, cost-effective solution for standard industrial pumps where extreme speeds or heavy shock loads are not present.

Q: How do P4 and P2 precision classes differ in axial runout and dimensional control?

A: The P2 class represents the highest standard precision, offering extremely tight control over axial runout and bore tolerances, which is essential for ultra-precision optical stages. P4 precision provides excellent accuracy for standard CNC machine tool ball screws, ensuring minimal axial play. The choice depends on the sub-micron positioning requirements of your specific linear motion system.

Q: How should composite or combination configurations be handled regarding preload adjustment?

A: Combination arrangements require precise preload adjustment to achieve the desired axial rigidity without generating excessive friction heat. The mounting process must strictly follow the manufacturer's torque specifications and sequence. Our technical team provides detailed guidance on measuring the friction torque during assembly to ensure the internal clearance is correctly eliminated, securing optimal performance for the thrust load application.
