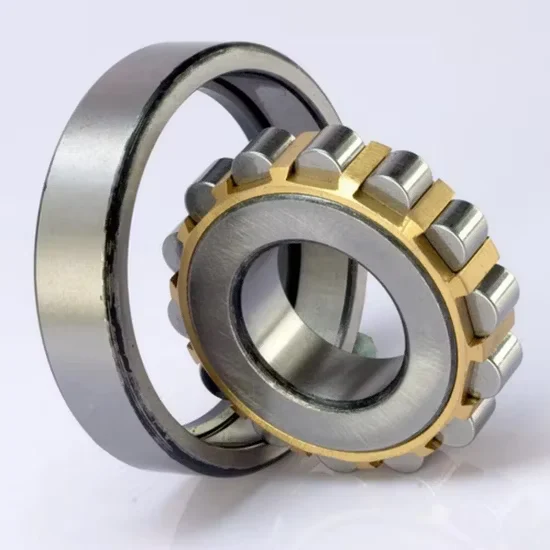

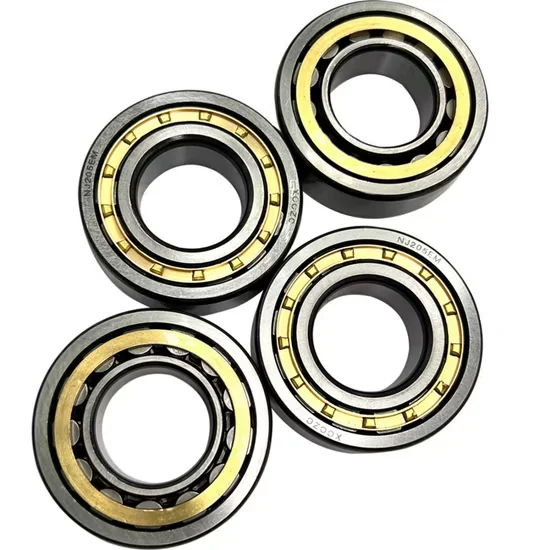

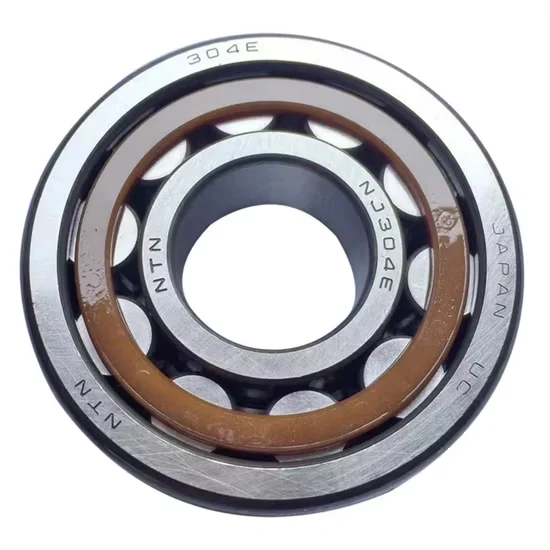

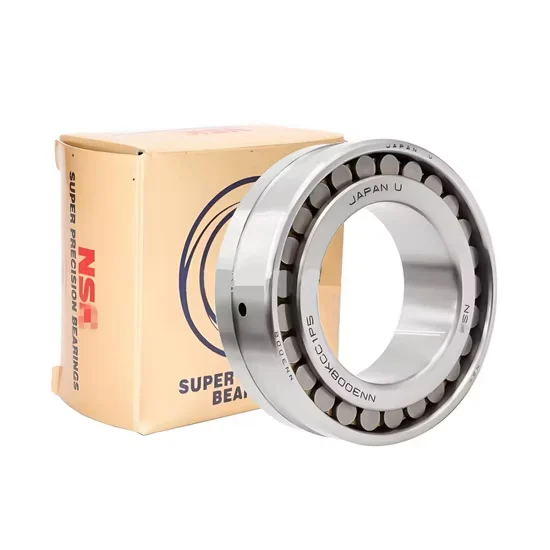

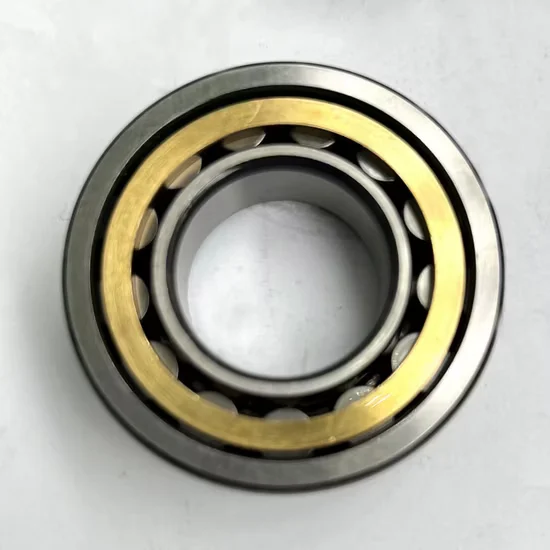

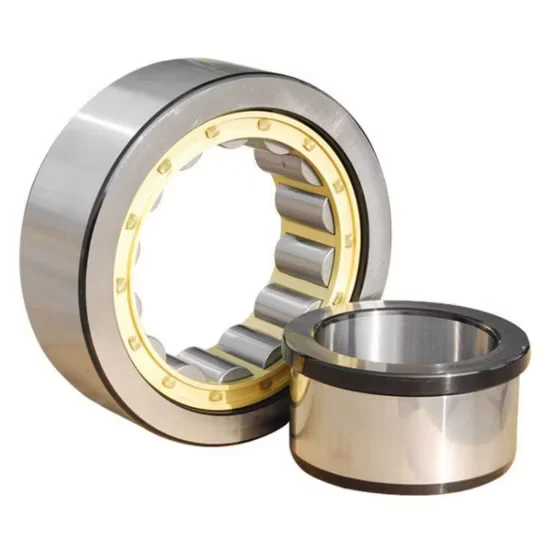

Nup311tud Cylindrical Roller Bearing 55x120x29mm for Automotive Transmission Gearbox

Full Batch Traceability — Every Nup311tud cylindrical roller bearing ships with unbroken manufacturer lot records linking directly to the forging and heat-treatment origins.

Technical Specifications

tud: unverified suffix — requires manufacturer catalog confirmation.

Application Suitability

Why Gearbox Bearings Seize Before the Gears Fail

Clearance mismatch and lubrication starvation destroy transmission bearings long before gear teeth wear out.

When inspecting failed automotive gearboxes in the field across West Africa, I frequently find inner rings welded directly to the shafts. The Nup311tud cylindrical roller bearing operates in high-speed environments where thermal expansion rapidly closes internal gaps. If the initial clearance is too tight or the oil splash doesn't reach the cage pockets, the rollers skid and generate extreme friction heat. This leads to catastrophic shaft scoring and total drivetrain lockup. Many maintenance crews assume the gears failed first, but the root cause is almost always a seized bearing that transferred massive shock loads to the meshing teeth [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the Nup311tud cylindrical roller bearing to Drivetrain Loads

Automotive transmissions and heavy-duty industrial gearboxes demand components that handle intense radial forces while accommodating slight axial shaft movements. The Nup311tud cylindrical roller bearing provides the necessary radial rigidity for gearbox shafts, keeping gear meshing perfectly aligned under heavy torque fluctuations. Our sourcing network ensures these units arrive with the exact dimensional tolerances required for precise transmission housing fits. This precision prevents the micro-misalignments that accelerate cage wear and cause premature roller spalling in demanding traction motor and rolling mill applications.

Thermal Expansion and Lubrication in High-Speed Gearboxes

Inside a sealed gearbox, churning oil creates a hot, turbulent environment that tests the limits of any rolling element. The single-row non-aligning design of this bearing relies on a steady flow of clean lubricant to separate the rollers from the raceways. At elevated operating temperatures, the chrome steel rings expand, drastically reducing the internal radial clearance. If the selected clearance class does not account for this thermal growth, the rollers will bind and skid. Furthermore, microscopic gear wear particles circulating in the oil can indent the raceways, making proper filtration and oil viscosity critical for longevity [NEED_CITE: effect of lubricant contamination on bearing fatigue life per ISO 281].

Decoding the Gcr15 Steel and Non-Aligning Geometry

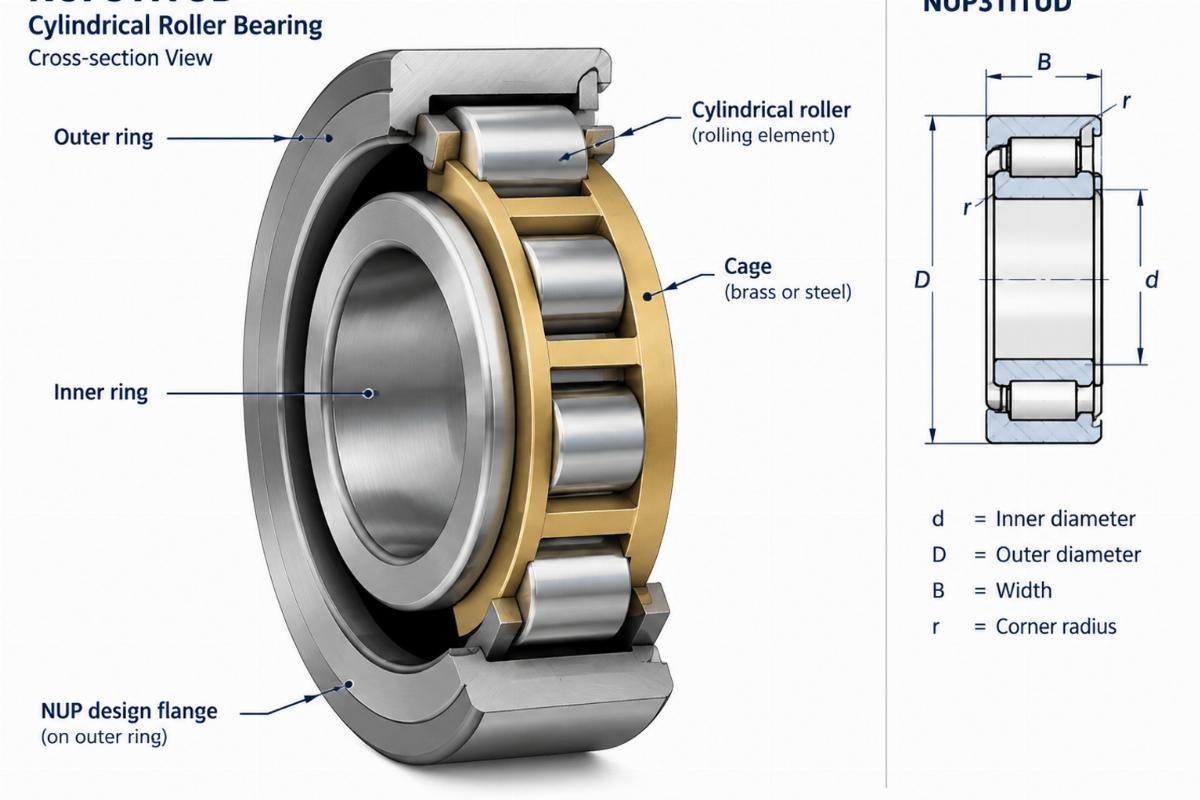

The use of Gcr15 / 100cr6 chrome steel provides a hard, wear-resistant raceway capable of sustaining the high contact stresses found in transmission shafts. Because this is a non-aligning bearing, it requires the housing and shaft to be machined with strict coaxiality; it cannot compensate for angular misalignment like a spherical roller bearing would. The single-row configuration with an NUP design typically includes a loose collar on one side, allowing it to locate the shaft axially in one direction while accommodating thermal expansion. This specific geometry makes it ideal for fixing the shaft position in heavy-duty gearboxes without over-constraining the system, ensuring smooth power transfer even under heavy shock loads.

The Downtime Cost of Ignoring Suffix and Clearance Details

Specifying a standard clearance when a C3 or C4 is required for a high-speed gearbox results in immediate thermal seizure once the oil reaches operating temperature. This unplanned downtime halts the entire production line or disables a critical vehicle, leading to massive warranty claims and expensive replacement costs. Misinterpreting unverified suffixes or ignoring the exact OEM tolerance requirements turns a minor scheduled maintenance task into a catastrophic drivetrain rebuild. Following proper selection protocols ensures the bearing survives the harsh thermal cycles typical of automotive and industrial power transmission systems [NEED_CITE: financial impact of unplanned machinery downtime].

Securing Authentic Transmission Components for Your Fleet

Sourcing genuine parts for mixed-brand gearboxes often involves facing a complex web of counterfeit risks and incomplete documentation. We supply the Nup311tud cylindrical roller bearing with complete traceability, ensuring the chrome steel metallurgy matches the original equipment specifications. Our technical team cross-checks the exact dimensional profiles against your OEM manuals to prevent the disastrous clearance mismatches I have witnessed in the field. We consolidate mixed-size orders into single shipments, reducing your procurement overhead while maintaining strict quality control over every single unit, ensuring your maintenance crew always has the right part on the shelf.

Documentation & Authenticity

• Certificate of Conformity verifying Gcr15 / 100cr6 material chemistry for this specific batch.
• Dimensional inspection reports confirming 55x120x29mm tolerances before dispatch.
• Original manufacturer lot traceability linking the bearing to its heat-treatment records.
• Running accuracy test certificates validating the non-aligning geometry and radial play.

Storage, Handling & Mounting

• Store the Nup311tud cylindrical roller bearing in its original anti-corrosion packaging to protect the Gcr15 steel from humidity.
• Use induction heaters for the inner ring installation to avoid damaging the 55 mm bore surface.
• Keep the bearing sealed until mounting to prevent gearbox assembly dust from entering the roller paths.
• Verify the axial location collar orientation during installation to ensure proper shaft fixing in the transmission.

Engineering Data Required for Technical Verification

To ensure this bearing perfectly matches your specific gearbox application, please provide the exact radial and axial load profiles along with the maximum operating speed and temperature. Sharing the OEM equipment manual part numbers allows our engineering team to perform a precise cross-reference check and confirm the required internal clearance class. This technical review prevents the costly installation errors associated with incorrect thermal expansion allowances.

Frequently Asked Questions

Q: What does the unverified suffix mean for this specific bearing designation?

A: The trailing suffix on this designation is currently unverified and requires direct confirmation against the specific manufacturer's engineering catalog. We strongly recommend consulting the OEM manual or providing the exact application parameters so our technical team can verify if it indicates a specific cage design, clearance class, or dimensional tolerance required for your gearbox.

Q: What are the cross-reference equivalents for this bearing across premium brands?

A: While the base dimension of 55x120x29mm aligns with standard NU311 or NUP311 series across major global brands, the specific suffix configuration dictates exact interchangeability. We can cross-reference this unit to SKF, FAG, NSK, or NTN equivalents by analyzing your specific load, speed, and clearance requirements to ensure the replacement matches the original transmission specifications perfectly.

Q: How to select the right clearance for high-speed gearbox applications?

A: High-speed automotive transmissions generate significant friction heat, causing the inner and outer rings to expand at different rates. Selecting a standard clearance often leads to thermal seizure, whereas a C3 or C4 clearance accommodates this thermal growth. Provide your operating temperature and speed data so we can calculate the exact residual clearance needed to prevent roller skidding.

Q: How to verify the authorization and traceability of the supplied bearings?

A: Every unit we ship includes a comprehensive documentation package featuring a Certificate of Conformity, material test reports for the Gcr15 chrome steel, and original manufacturer batch traceability records. These documents link the physical bearing directly to its forging and heat-treatment origins, ensuring complete authenticity and allowing you to verify the material integrity for critical automotive applications.
