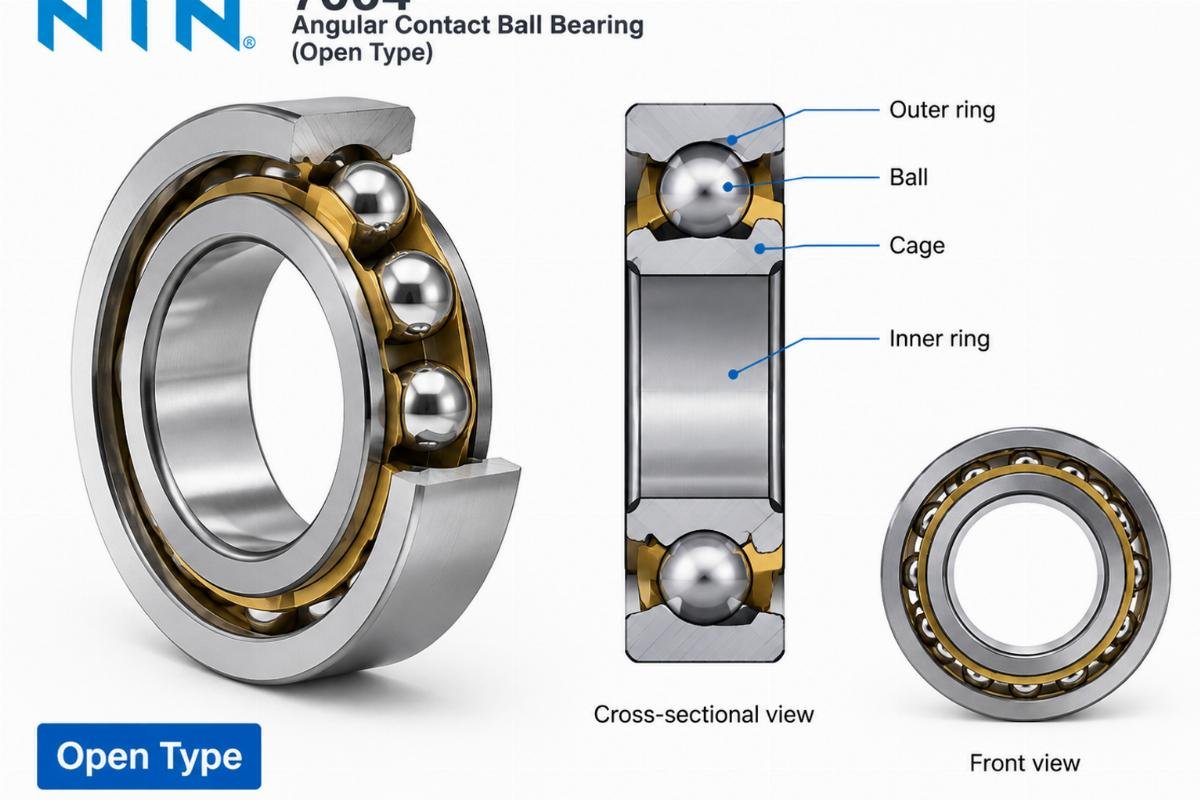

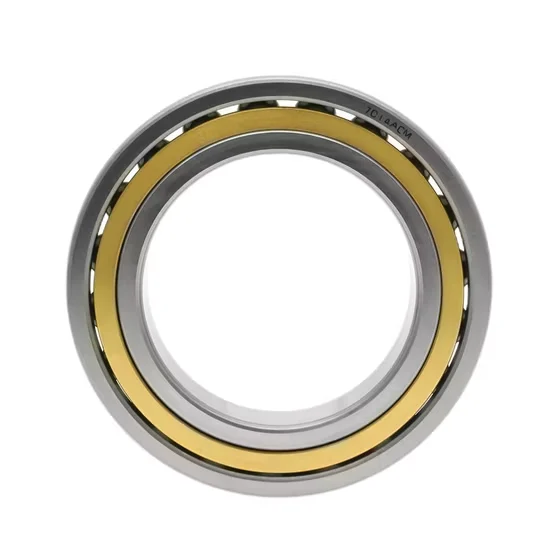

NTN 7004 Angular Contact Ball Bearing High Speed Low Noise Open Type [WARN] draft identifier mismatch

Mixed-Brand Sourcing — Consolidate NTN, SKF, and FAG orders into a single shipment without juggling multiple suppliers.

Technical Specifications

Application Suitability

Why Standard Tolerances Cause Spindle Seizures in High-Speed Machining

Precision suffixes dictate thermal stability under extreme RPM.

Early in my career sourcing for machine tool plants in Qingdao, I installed a standard unit without verifying the precision suffix. The resulting vibration and noise exceeded acceptable limits, leading to thermal expansion and complete spindle seizure. This painful lesson highlighted how minor specification oversights cause massive financial losses. [NEED_CITE: thermal seizure mechanisms in high-speed spindles per ISO 15243].

Aligning Open Designs with Custom Spindle Lubrication

An open NTN 7004 angular contact ball bearing allows direct integration with specialized oil-air or oil-mist lubrication systems required for high-speed machining. Our engineering team cross-references your spindle housing dimensions to ensure the open type matches your custom cooling strategies, avoiding the friction heat generated by sealed alternatives. We also evaluate your specific contamination risks to determine if external labyrinth seals are necessary to protect the open raceways.

Managing Radial Loads and Thermal Expansion in Precision Equipment

High-speed spindles subject bearings to combined radial and axial loads while generating significant internal heat. Selecting the appropriate clearance class, such as C3 or C4, compensates for thermal expansion and prevents internal preload loss during continuous operation. Proper lubrication intervals are critical to flush out microscopic debris and maintain the polyamide cage's structural integrity at elevated rotational speeds. Furthermore, precise mounting alignment is mandatory to avoid inducing unintended axial loads that accelerate fatigue. [NEED_CITE: clearance selection guidelines for thermal compensation in rolling bearings].

Decoding Material and Cage Configurations for Rotational Stability

The Gcr15 bearing steel provides the necessary fatigue strength to withstand continuous cyclic loading in precision equipment. A polyamide cage significantly reduces rotational friction compared to brass alternatives, enabling the higher limiting speeds demanded by modern machine tool spindles. Furthermore, the availability of multiple vibration classes, from V1 to V3, allows procurement teams to specify the exact dynamic smoothness required for sensitive robotic applications. Choosing the correct clearance from C0 to C5 ensures the internal geometry accommodates specific shaft and housing tolerances without inducing excessive preload. The single or double row configurations offer flexibility depending on the axial load capacity required by your specific machinery design.

The Financial Impact of Overlooking Vibration and Clearance Specs

Specifying a standard clearance in a high-temperature environment often leads to premature failure and unplanned downtime due to internal binding. Ignoring vibration class requirements can cause catastrophic damage to adjacent precision components through transmitted harmonic resonance. According to failure mode classifications, improper internal geometry selection remains a primary driver of early bearing degradation [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Overlooking the specific cage material limitations can also result in sudden structural collapse if the operational temperature exceeds the polyamide threshold.

Securing Traceable Inventory for Critical Machining Operations

We maintain massive spot inventory of standard and special part numbers, ensuring you receive this exact open-type configuration without typical multi-week lead times. Our team verifies the precision suffix and clearance class on every shipment, preventing the costly mismatch errors I witnessed early in my procurement career. We provide competitive sourcing costs compared to direct official channels while delivering complete traceability documentation for every unit. Whether you need a single emergency spare or a full container consolidation, our flexible MOQ adapts to your maintenance schedules. Additionally, our technical support team assists with failure analysis to optimize your long-term replacement strategies.

Documentation & Authenticity

• Certificate of Conformity validating the specific clearance and vibration class.
• Original batch traceability records linking the steel to the manufacturer's production facilities.
• Official app QR verification confirming the authenticity of the polyamide cage components.
• Dimensional and running accuracy inspection reports confirming open-type tolerances before dispatch.

Storage, Handling & Mounting

• Keep the original packaging sealed to protect the open bearing races from ambient humidity and particulate contamination.
• Use clean, lint-free gloves during handling to prevent skin oils from compromising the Gcr15 steel surfaces.
• Induction heating is recommended for inner ring mounting to preserve the precise C0 to C5 clearance settings.
• Flush the bearing with clean lubricant immediately before installation to remove any long-term storage preservatives.

Preparing Your Technical Parameters for Selection Review

Share your specific radial and axial load profiles for the NTN 7004 angular contact ball bearing, operational RPM, and spindle housing dimensions so our engineers can verify the L10 life and optimal clearance class. Provide the original equipment manufacturer part numbers to facilitate accurate cross-reference validation. Detailing your environmental conditions, such as coolant exposure or ambient temperature fluctuations, ensures we recommend the correct open-type configuration for your application.

Frequently Asked Questions

Q: How can I verify the authenticity of the NTN 7004 angular contact ball bearing upon delivery?

A: You can scan the QR code on the packaging using the official manufacturer application to confirm its origin. Additionally, we provide original batch traceability documentation and a Certificate of Conformity that detail the specific clearance class, vibration rating, and material certifications for your records.

Q: What is the practical difference between C0, C3, and C4 clearances for high-speed spindles?

A: C0 represents standard internal clearance suitable for normal operating temperatures. C3 and C4 offer greater internal space to accommodate thermal expansion generated at high rotational speeds. Selecting the correct expanded clearance prevents internal binding and ensures smooth operation when the spindle reaches its maximum thermal equilibrium.

Q: Why is an open-type design preferred over sealed variants for machine tool spindles?

A: Open designs eliminate the friction and heat generated by physical seal lips, which is critical for high-speed applications. They also allow direct integration with the spindle's custom oil-air or oil-mist lubrication systems, ensuring continuous cooling and contaminant flushing that sealed bearings cannot accommodate in precision machining environments.

Q: How do I select the appropriate vibration class for precision robotics equipment?

A: Vibration classes indicate the dynamic smoothness of the bearing during rotation. V1 is standard, while V2 and V3 represent progressively stricter limits on velocity and acceleration variations. For sensitive robotic joints requiring minimal harmonic transmission, specifying a higher vibration class ensures smoother operation and protects adjacent delicate components.

Q: What lubrication practices are recommended for polyamide cage angular contact bearings?

A: Polyamide cages operate efficiently with both grease and oil, but high-speed spindles typically require oil-air or oil-mist systems. Ensure the lubricant is compatible with polyamide to prevent chemical degradation. Regular filtration is essential to keep the oil clean, as microscopic debris can damage the cage pockets and reduce operational lifespan.
