F-236120.03 Angular Contact Ball Bearing for Auto Differential Wheel Hub [WARN] draft identifier mismatch

Unified Sourcing Coverage — Consolidate mixed-brand differential and wheel hub bearing orders through a single supply chain without juggling multiple vendors.

Technical Specifications

Note: Suffixes F-, 236120, and .03 remain unverified and require manufacturer catalog confirmation.

Application Suitability

Overlooking Suffix Details on the F-236120.03 angular contact ball bearing Causes Differential Whine

A missing or misread suffix alters internal clearance, turning a precision component into a noise generator.

Back when I was procuring for a Qingdao assembly line, ignoring the exact suffix on an F-236120 variant led to incorrect clearance matching. The differential whined loudly during test runs, causing massive rework delays and frustrating the workshop technicians. Sourcing the correct F-236120.03 angular contact ball bearing means verifying every character against OEM specifications to avoid catastrophic NVH (Noise, Vibration, and Harshness) failures. When procurement teams treat suffixes as mere administrative details rather than critical engineering parameters, the entire drivetrain suffers. The resulting acoustic anomalies not only fail quality inspections but also indicate underlying stress concentrations that drastically shorten the service life of the gear set. [NEED_CITE: impact of incorrect internal clearance on gear whine and vibration]

Aligning the F-236120.03 angular contact ball bearing with Drivetrain Demands

Automotive differentials and wheel hubs subject bearings to complex combined loads and high rotational speeds, demanding exact geometric precision. By cross-referencing exact OEM part numbers and validating suffix meanings, we ensure the selected variant handles the specific axial and radial forces of your drivetrain. Our technical team maps your operational requirements to the precise clearance and vibration class needed for smooth power transmission. Whether the application involves the pinion shaft of a heavy-duty differential or the hub assembly of a passenger vehicle, matching the contact angle and cage design to the actual load spectrum prevents premature edge loading and ensures consistent torque delivery across varying speed ranges.

Navigating Thermal Expansion and Lubrication in Wheel Hubs

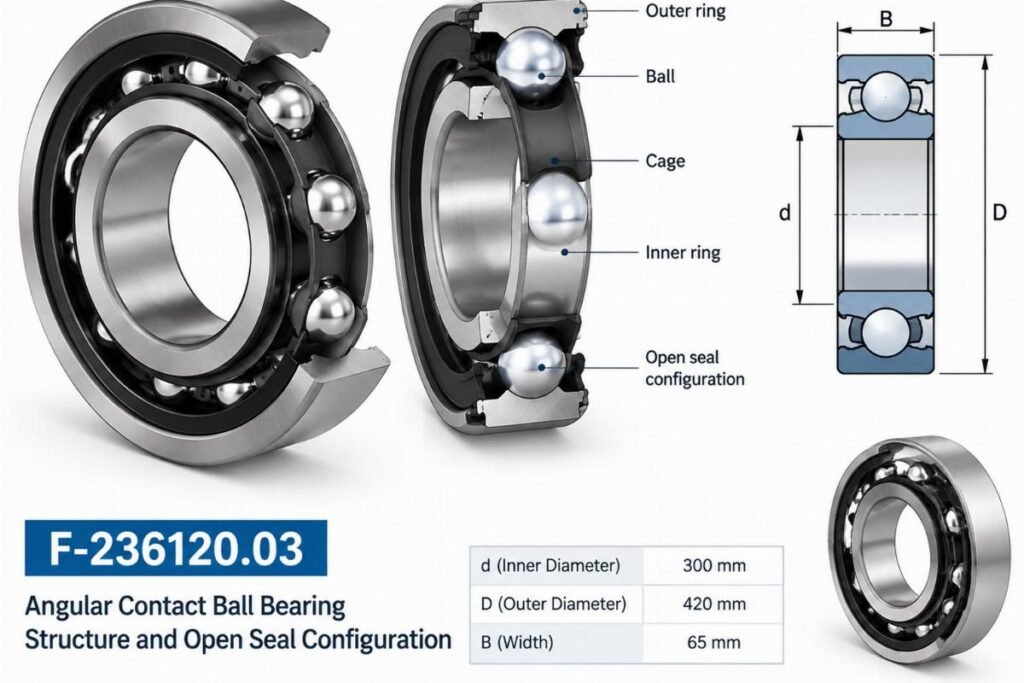

Wheel hub and differential environments generate significant heat, which directly impacts internal clearance and lubricant viscosity during prolonged operation. An open seal configuration allows for customized oil bath or grease lubrication strategies adapted to the specific thermal profile of the assembly. Selecting the appropriate clearance class, such as C3 or C4, compensates for thermal expansion during continuous high-speed operation, preventing premature binding. Furthermore, the open design facilitates efficient heat dissipation, allowing the lubricant to flow freely through the rolling elements and carry away frictional heat. This dynamic thermal management is essential for maintaining the structural integrity of the raceways and preventing lubricant degradation in demanding automotive environments. [NEED_CITE: thermal expansion effects on bearing internal clearance in automotive drivetrains]

Decoding Material and Cage Dynamics for High-Speed Stability

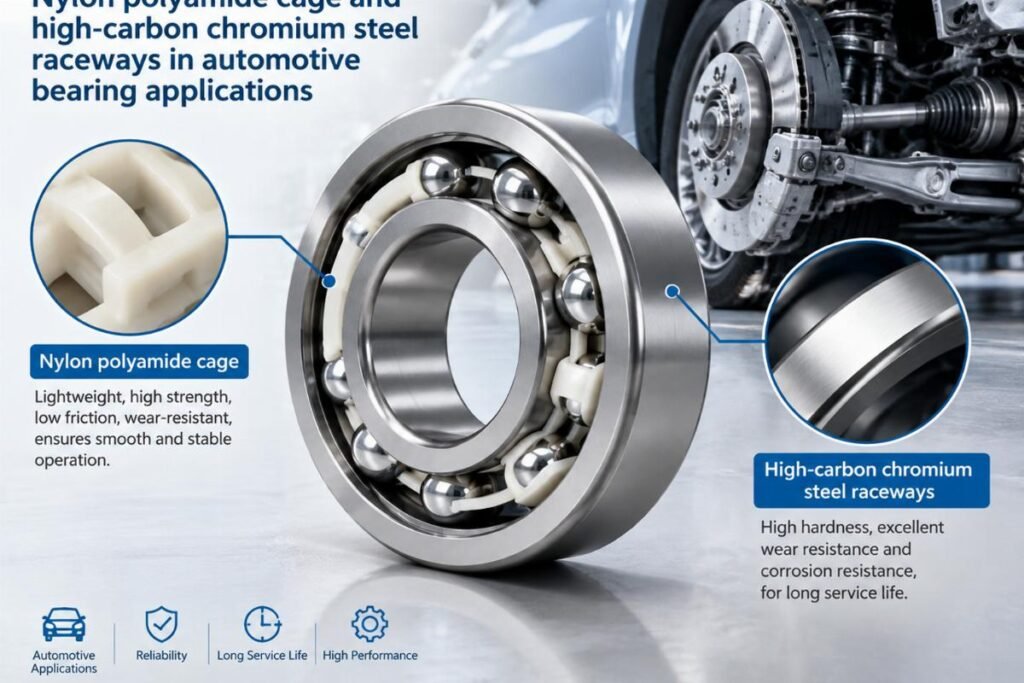

Available in Gcr15 bearing steel or equivalent high-carbon chromium variants, the construction provides the necessary core hardness and fatigue resistance for demanding automotive applications, ensuring the rings withstand repeated Hertzian contact stresses. Paired with a nylon polyamide cage, the assembly achieves reduced friction and improved high-speed stability compared to traditional brass alternatives. The availability of multiple contact angles, including 15° (C) and 25° (AC), allows engineers to optimize the load distribution between radial and axial forces depending on the specific differential gear geometry. A steeper contact angle increases axial load capacity, which is crucial for handling the thrust loads generated by helical or hypoid gears, while the polyamide cage minimizes inertia, allowing for rapid acceleration without cage slip.

The Downtime Penalty of Mismatched Vibration Grades

Installing a bearing with an inadequate vibration grade in a high-speed differential leads to accelerated raceway spalling and cage fatigue. According to ISO 15243 failure mode classifications, surface initiated fatigue often stems from microscopic geometric deviations that amplify vibration under load. Specifying the correct V2 or V3 grade prevents unplanned downtime and avoids the catastrophic damage associated with seized wheel hubs or destroyed differential gears. When vibration limits are exceeded, the microscopic surface asperities break through the elastohydrodynamic lubrication film, leading to metal-to-metal contact. This progressive degradation not only generates excessive heat but also contaminates the surrounding gear oil with metallic debris, ultimately compromising the entire transmission system. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Securing Traceability for Critical Automotive Components

We maintain strict batch traceability for every F-series automotive variant, ensuring you receive genuine components with verifiable origin documentation. Our massive spot inventory covers thousands of standard and special part numbers, eliminating the typical multi-week lead times for hard-to-find differential bearings. Furthermore, our engineering team provides cross-brand equivalent model consultation, helping you identify reliable alternatives without compromising the precise clearance and tolerance requirements of your wheel hub assemblies. By rigorously inspecting incoming batches and verifying manufacturer production facilities, we eliminate the risk of counterfeit parts entering your supply chain. This comprehensive approach guarantees that every component meets the stringent durability expectations of the automotive aftermarket and heavy equipment sectors.

Documentation & Authenticity

• Certificate of Conformity verifying Gcr15 or equivalent material composition and heat treatment protocols.
• Original manufacturer batch codes tracked for full lifecycle traceability of differential components.
• Dimensional inspection reports confirming exact bore and outside diameter tolerances before dispatch.
• Running accuracy validation ensuring vibration grades meet V1, V2, or V3 specifications.
• Origin documentation supporting customs clearance for global automotive aftermarket shipments.

Storage, Handling & Mounting

• Store the open-type bearings in original packaging to prevent moisture ingress on the high-carbon chromium steel raceways.
• Use clean lint-free gloves during handling to avoid contaminating the nylon polyamide cage structure.
• Apply the specified differential gear oil immediately after unsealing to protect the open seal configuration.
• Verify the exact C0 to C5 clearance class marking on the box before pressing into the wheel hub housing.
• Avoid using carbon steel tools directly on the bearing rings to prevent localized stress concentrations.

Engineering Review for Drivetrain Integration

To ensure optimal performance, please share your specific radial and axial load profiles, operating temperatures, and rotational speeds for L10 life calculation. Providing the original equipment manufacturer part numbers allows our team to perform precise cross-reference verification and confirm the exact suffix requirements for your differential or wheel hub application. Additionally, detailing your housing tolerances and shaft fitment conditions helps us recommend the most suitable clearance class to accommodate assembly interference. This collaborative technical review ensures that the final selection perfectly aligns with your mechanical design parameters, preventing costly field failures and warranty claims.

Frequently Asked Questions

Q: How do I verify the exact suffix meaning for this automotive component?

A: Since specific suffixes like the dot-zero-three designation require manufacturer catalog confirmation, we cross-reference your OEM equipment numbers with official technical databases. This ensures the internal clearance, contact angle, and tolerance classes perfectly match your differential or wheel hub requirements before shipment.

Q: What clearance class is optimal for high-temperature differential applications?

A: Differentials generate substantial heat during continuous operation, which reduces internal clearance. Selecting a C3 or C4 clearance class compensates for this thermal expansion, preventing the rolling elements from binding against the raceways and ensuring smooth rotation under elevated thermal conditions.

Q: How does the nylon cage perform compared to brass in wheel hubs?

A: The nylon polyamide cage offers significantly lower friction and reduced weight, which minimizes heat generation at high rotational speeds. It also provides excellent damping characteristics, making it highly suitable for wheel hub and differential applications where noise reduction and smooth operation are critical.

Q: Can you supply cross-reference equivalents from other premium brands?

A: Yes, our engineering team routinely maps automotive bearing requirements to equivalent models from premium global manufacturers. By analyzing your specific load, speed, and dimensional constraints, we can identify compatible alternatives that maintain the exact performance standards required for your drivetrain assemblies.
