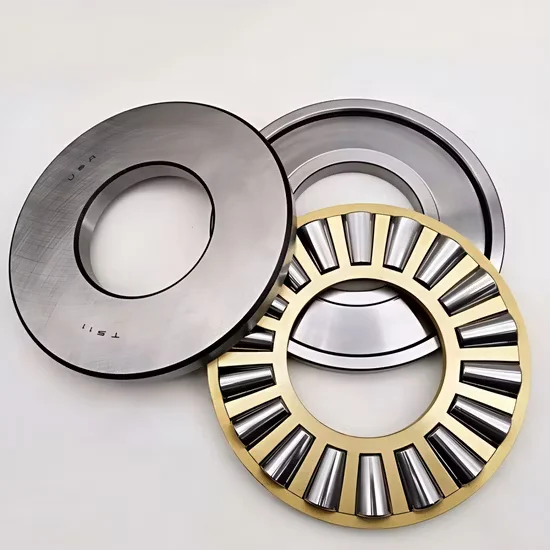

350980c Thrust Tapered Roller Bearing 170x240x84mm for Rolling Mill Machinery

Cross-Reference Triad Alignment — We verify dimensional, load, and clearance equivalence across OEM catalogs before dispatching this specific thrust unit.

Technical Specifications

Application Suitability

Why Flame Heating Destroys the 350980c Thrust Tapered Roller Bearing Before It Turns

Uncontrolled thermal expansion during mounting permanently alters the chrome steel microstructure, leading to rapid spalling under heavy axial loads.

Rolling mill screw-down systems generate immense, continuous axial forces that demand precise load distribution. I once investigated a catastrophic failure in a Vietnamese steel plant where maintenance crews used open torches to heat the inner ring for assembly. The localized overheating destroyed the hardened raceway, causing the thrust tapered roller bearing to seize within weeks. Such field shortcuts bypass the engineered tolerances of the 350980c thrust tapered roller bearing and void any reliability expectations, leading to massive production losses. [NEED_CITE: thermal damage mechanisms in bearing mounting per ISO 15243]

Matching Axial Capacity to Rolling Mill Demands

Rolling mill screw-down systems generate immense, continuous axial forces that demand precise load distribution. Our sourcing network secures genuine 350980c thrust tapered roller bearing units with verified single-row geometries optimized for these exact heavy-duty profiles. By cross-referencing application parameters with manufacturer specs, we ensure the selected open-type design accommodates the high-volume oil circulation typical in mill stands.

Navigating Contamination and Lubrication in Heavy Industry

The open seal configuration is deliberately chosen for rolling mill environments where continuous oil mist or circulating oil systems flush away metallic debris. While this lack of integrated seals reduces friction, it demands rigorous external filtration to prevent scale and coolant ingress. The single-row tapered geometry handles extreme unidirectional thrust but remains vulnerable to momentary reverse loading or misalignment. Maintaining the correct oil viscosity at elevated operating temperatures is critical to prevent cage starvation and subsequent roller skidding. [NEED_CITE: lubrication failure modes in open thrust bearings]

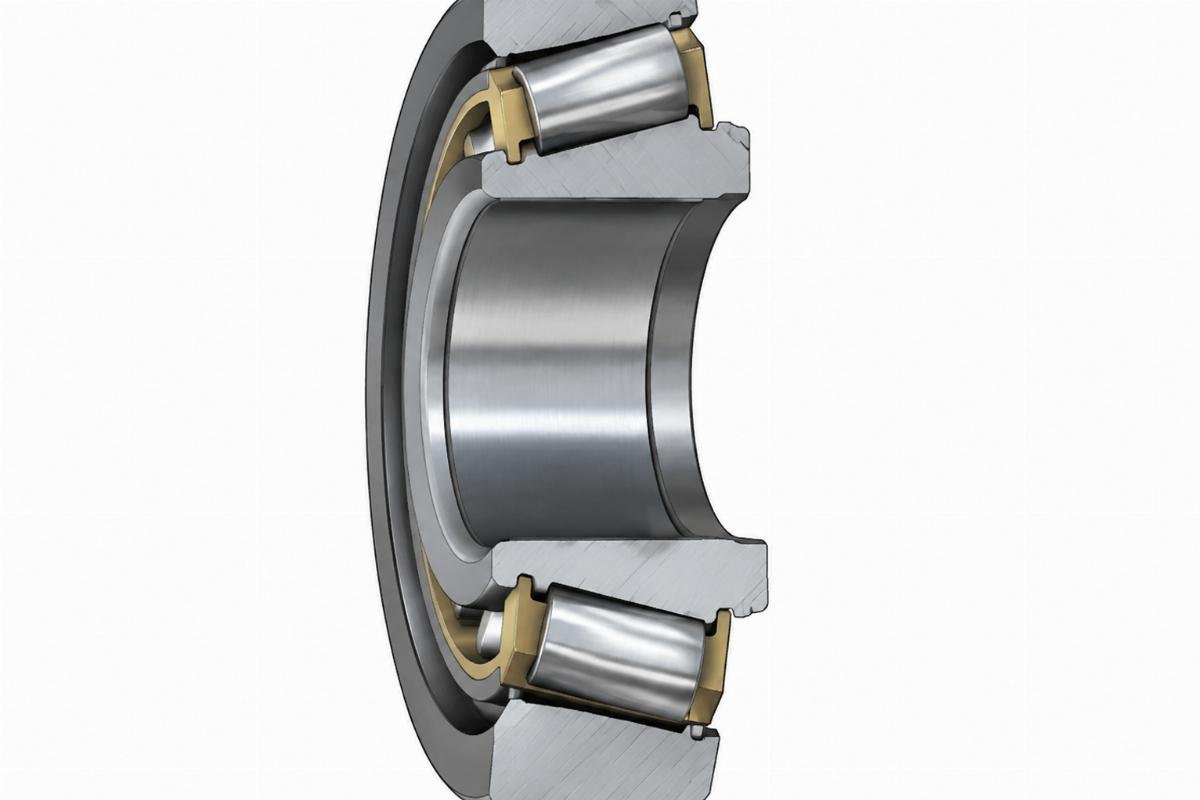

Decoding the P0 Tolerance and Open Architecture

The P0 precision class provides the standard dimensional and running accuracy required for general heavy machinery, balancing cost and performance without over-engineering for ultra-high-speed spindles. Chrome steel construction delivers the necessary core hardness and wear resistance for continuous axial loading. The open design eliminates seal drag, allowing the bearing to operate at higher limiting speeds when paired with forced lubrication. Furthermore, the single-row arrangement focuses entirely on absorbing thrust loads, meaning radial support must be managed by adjacent radial bearings in the housing. The "c" suffix appears in the designation, though its exact internal clearance or design modification requires direct confirmation from the specific manufacturer's current catalog to avoid assembly interference.

The Cascading Impact of Improper Mounting and Sourcing

Procuring non-traceable replacements often results in dimensional deviations that cause uneven load sharing across the rollers. When combined with improper heating methods during installation, the resulting micro-cracks lead to premature spalling and catastrophic housing damage. This unplanned downtime halts the entire rolling line, multiplying the financial impact far beyond the component cost. Adhering to mounting guidelines outlined in ISO 281 is essential to preserve the calculated fatigue life of the assembly and prevent secondary damage to the mill stand chocks. [NEED_CITE: mounting induced failures classification per ISO 15243]

Securing Traceability for Critical Thrust Applications

Sourcing heavy-duty thrust units requires more than just matching part numbers; it demands verifying the exact internal geometry and heat treatment. We provide complete batch traceability documentation for every 350980c unit, ensuring the chrome steel meets original metallurgical standards. Our flexible consolidation allows you to mix this specific thrust bearing with radial counterparts in a single shipment, optimizing freight costs. Furthermore, our technical team reviews your housing dimensions to confirm the open-type clearance requirements before dispatch. This prevents the costly mistake of installing a mismatched suffix variant that could alter the internal load distribution.

Documentation & Authenticity

• Certificate of Conformity confirming P0 dimensional tolerances for the 170x240x84mm footprint.
• Original batch traceability logs linking the chrome steel heat number to the manufacturer.
• Material test certificates verifying the core hardness and microstructure of the thrust components.
• Running accuracy inspection reports validating the single-row roller alignment prior to export.

Storage, Handling & Mounting

• Store the open-type bearing in its original vapor-phase inhibitor packaging to prevent humidity ingress on the exposed raceways.
• Use controlled induction heaters rather than open flames to expand the 170mm bore, preserving the chrome steel microstructure.
• Keep the single-row roller and cage assembly perfectly horizontal during lifting to prevent deformation of the thrust profile.
• Apply the specified circulating oil immediately after mounting to protect the unsealed contact surfaces from oxidation.

Preparing Your Technical Parameters for Verification

To ensure optimal performance, please share the exact axial load profiles, operating temperatures, and housing dimensions of your rolling mill stand. Providing the original equipment manufacturer's assembly drawings allows our engineering team to verify the clearance requirements and confirm the suffix interpretation. This technical review ensures the selected thrust configuration perfectly aligns with your specific lubrication and mounting constraints.

Frequently Asked Questions

Q: What does the "c" suffix indicate in the 350980c bearing designation?

A: The "c" suffix typically denotes a specific internal design modification, clearance class, or cage variant depending on the manufacturer. Because suffix conventions vary across brands, we always cross-reference the exact meaning with the official catalog to ensure the internal geometry matches your rolling mill housing requirements before shipment.

Q: How to select the appropriate lubrication method for open-type thrust tapered roller bearings?

A: Open designs rely entirely on external lubrication systems, making them ideal for rolling mills with continuous oil circulation or oil mist setups. The choice between circulating oil and oil mist depends on the operating speed and heat generation. We recommend reviewing the mill's existing filtration capacity to ensure metallic debris is effectively removed from the unsealed raceways.

Q: What are the common failure modes of thrust bearings in rolling mill applications?

A: Premature failures in mill screw-down mechanisms usually stem from improper mounting, such as flame heating, which destroys the raceway hardness. Other common issues include lubrication starvation, contamination from mill scale, and misalignment causing uneven roller loading. Adhering to ISO 15243 maintenance standards significantly reduces the risk of these catastrophic spalling events.

Q: How to verify the authenticity and traceability of branded thrust bearings?

A: Authenticity verification requires examining the original packaging, laser-etched part numbers, and accompanying Certificate of Conformity. We supply comprehensive batch traceability documentation that links the physical bearing to the manufacturer's production records. This ensures the chrome steel metallurgy and P0 precision tolerances strictly comply with the original equipment specifications for heavy-duty applications.

Q: What installation tools and heating methods are recommended for 170mm bore bearings?

A: For a 170mm bore, controlled induction heating is the only acceptable method to expand the inner ring without damaging the chrome steel microstructure. Open torches or localized flame heating create thermal gradients that lead to premature spalling. We strongly advise using calibrated induction heaters with automatic demagnetization cycles to ensure a safe, uniform interference fit.
