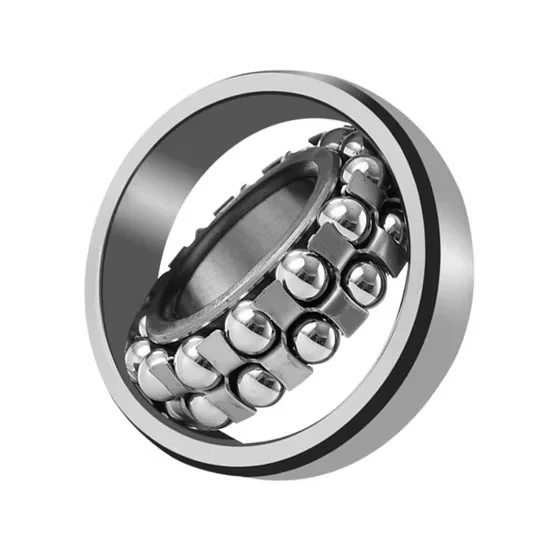

1206 1207 1208 1209 Self-Aligning Ball Bearing for Machinery Industries

Multi-Brand Sourcing — Consolidate KOYO, NTN, and NSK equivalents for your 1206 requirements in a single shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Misalignment Tolerance vs. Thermal Seizure in Double-Row Designs

Thermal expansion easily overrides standard internal clearance when ambient heat and friction combine.

When sourcing a 1206 self-aligning ball bearing for agricultural or textile machinery, engineers often assume the default configuration handles all operational variables. However, in environments with heavy dust and elevated temperatures, standard radial internal clearance paired with a basic pressed steel cage can lead to rapid thermal seizure. I witnessed this firsthand when a Thai agricultural plant experienced repeated jamming on their 1208 units due to identical default specification mismatches in high-heat zones. The inner ring expanded, eliminating the operational gap and causing the rolling elements to bind catastrophically. [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the 1206 self-aligning ball bearing to Your Operational Environment

Selecting the right configuration requires looking beyond basic dimensional cross-references. We supply this 1206 self-aligning ball bearing across multiple premium and domestic brands, ensuring you get the exact internal geometry needed for your specific machinery. Our technical team reviews your operational parameters to confirm whether the standard open design suffices or if specific clearance adjustments are mandatory for your thermal profile.

Navigating Dust, Heat, and Shaft Deflection Challenges

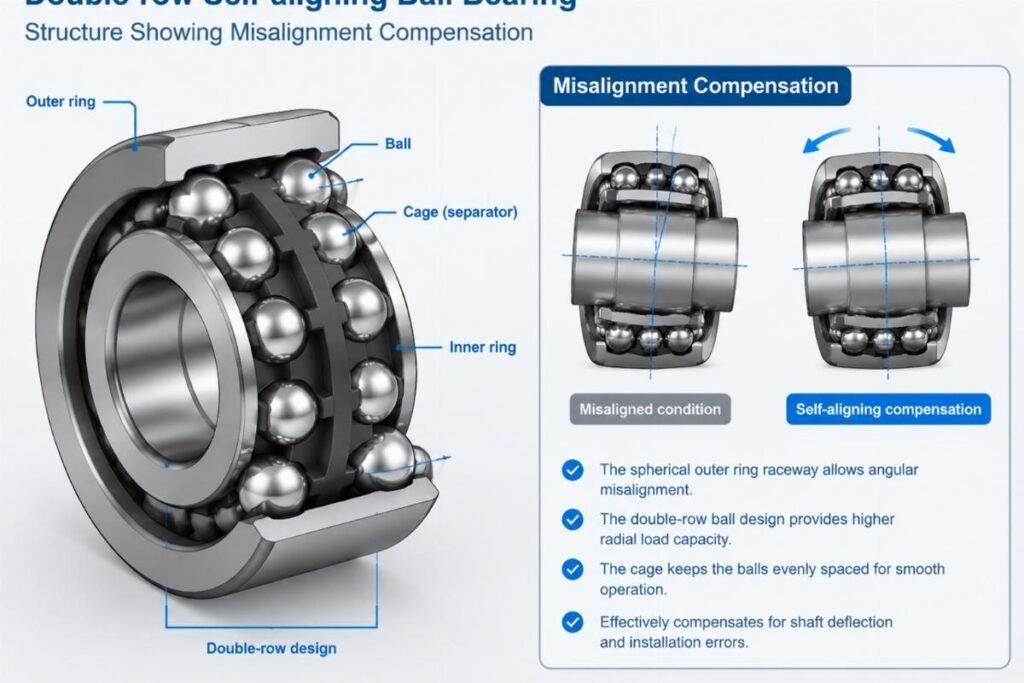

Agricultural and conveyor applications frequently expose components to severe particulate contamination and fluctuating thermal loads. Standard stamped steel cages might struggle with vibration-induced fatigue over extended periods, while normal clearance classes risk disappearing entirely when the inner ring expands under friction heat. Proper lubrication intervals become absolutely critical to prevent abrasive dust from mixing with degraded grease, which rapidly accelerates raceway wear and surface fatigue. [NEED_CITE: impact of particulate contamination on bearing fatigue life per ISO 281]. Furthermore, shaft deflection in long conveyor systems demands the self-aligning capability to prevent edge loading on the rolling elements, ensuring the load is distributed evenly across both rows.

Decoding the Default 1206 Configuration and Clearance Limits

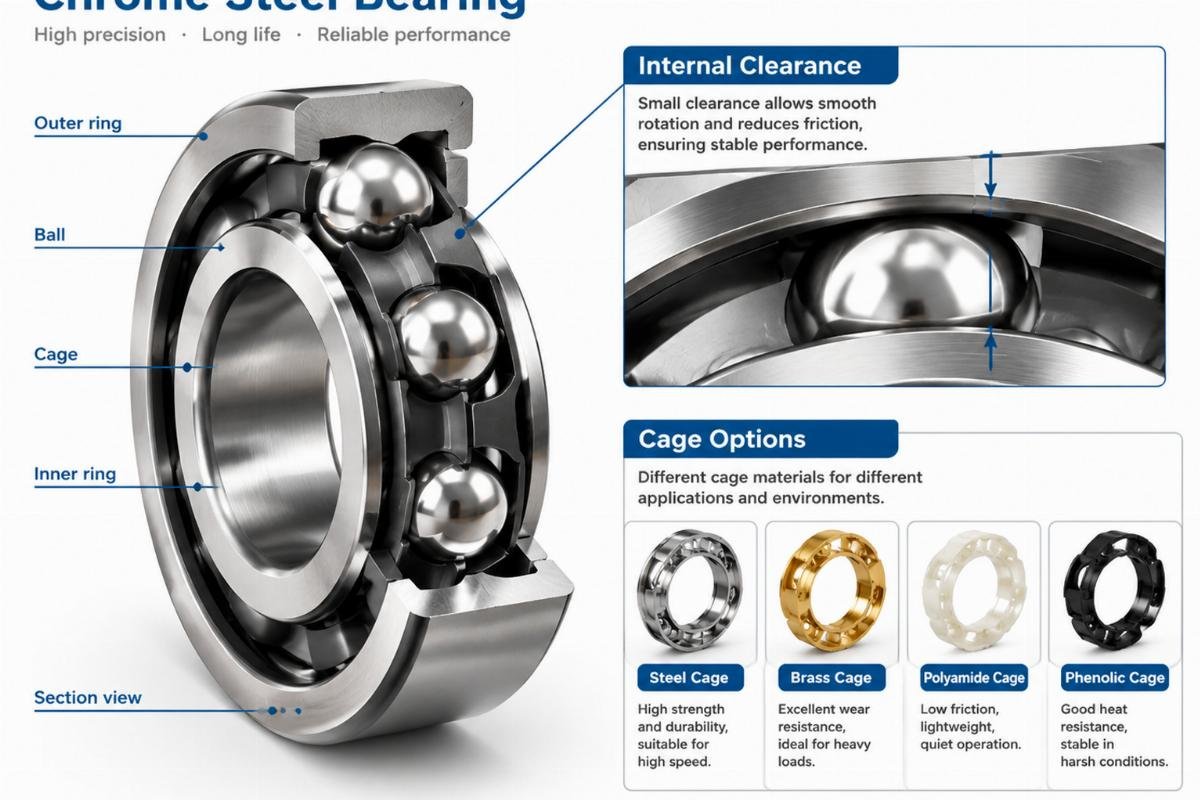

The base 1206 designation without any suffix indicates standard radial internal clearance and typically a pressed steel cage. While this setup works perfectly for general machinery industries operating at moderate speeds and stable temperatures, it lacks the thermal buffer needed for hotter zones. If your equipment runs hotter, upgrading to a C3 clearance class provides the necessary expansion room to prevent the rolling elements from binding under load. Similarly, evaluating cage materials—such as switching to a machined brass cage—can significantly improve durability under heavy vibration or poor lubrication conditions. This ensures the bearing survives the harsh realities of field operations without suffering from premature cage fracture or rolling element skidding.

The Hidden Toll of Ignoring Suffix Variations

Overlooking internal clearance and cage specifications during cross-referencing often results in catastrophic operational disruptions across your facility. A standard clearance bearing forced into a high-temperature application will experience premature failure, leading to unplanned downtime and extensive collateral damage to the housing and shaft. According to ISO 15243 frameworks, such thermal seizure falls under severe surface damage and material smearing, destroying the raceway geometry. Replacing these components frequently voids equipment warranties and forces maintenance teams into emergency procurement cycles, drastically inflating the total cost of ownership and disrupting production schedules. [NEED_CITE: economic impact of unplanned machinery downtime].

Securing Traceable 1206 to 1209 Replacements

Sourcing mixed-brand packages for urgent maintenance requires strict adherence to original traceability and quality assurance. We verify every batch of 1206, 1207, 1208, and 1209 bearings through authorized channels, eliminating the risk of counterfeit internal geometries that plague the aftermarket. Because cross-referencing between KOYO, NTN, and NSK equivalents can obscure subtle differences in default clearance or cage designs, our engineering support manually validates the exact suffix requirements for your specific machinery. This ensures the replacement unit perfectly matches the thermal and mechanical demands of your application, backed by full material and dimensional inspection reports before it ever leaves our warehouse.

Documentation & Authenticity

• Original manufacturer batch traceability codes linking directly to the production facility.
• Dimensional and running accuracy inspection reports confirming standard tolerance limits.
• Material certification verifying the use of genuine Chrome Steel Gcr15 / 100cr6.
• Official brand authentication via QR codes or proprietary anti-counterfeit applications.
• Certificate of Conformity detailing the exact origin and manufacturing specifications.

Storage, Handling & Mounting

• Retain the original factory packaging until installation to protect the open Chrome Steel Gcr15 surfaces from ambient humidity and corrosion.
• Use clean, lint-free gloves when handling the double-row bearing to prevent skin oils from degrading the initial rust-preventative coating.
• Apply induction heating for inner ring mounting to preserve the standard internal clearance without causing localized thermal distortion.
• Ensure the shaft and housing seats are thoroughly cleaned of agricultural dust before seating the self-aligning outer ring.
• Verify shaft alignment limits during installation to prevent the double-row balls from exceeding the design misalignment tolerance.

Preparing Your Technical Data for Precision Selection

To ensure the selected 1206 self-aligning ball bearing configuration perfectly matches your machinery, please provide detailed operational parameters including radial and axial loads, operating speeds, and ambient temperature ranges. Sharing the original OEM equipment number or the specific housing dimensions allows our engineering team to perform accurate cross-reference validation and L10 life recalculations. This technical review guarantees that any necessary clearance or cage modifications are identified before the shipment is dispatched.

Frequently Asked Questions

Q: How do I verify the authenticity of KOYO, NTN, or NSK 1206 bearings?

A: Authenticity is confirmed by scanning the official QR codes on the packaging using the manufacturer's proprietary application and cross-checking the batch traceability codes. We also provide original Certificates of Conformity and material inspection reports that link the specific Chrome Steel Gcr15 components directly back to the authorized production facility, ensuring complete supply chain transparency.

Q: What cross-reference considerations apply when replacing standard 1206 bearings?

A: When cross-referencing between brands like KOYO, NTN, or NSK for the 1206, 1207, 1208, or 1209 series, you must verify that the internal clearance and cage materials match your actual operating environment. A direct dimensional equivalent might still carry a default normal clearance that could fail in high-temperature agricultural applications, requiring a specific suffix upgrade to prevent thermal seizure.

Q: How do ISO and ABEC precision standards affect self-aligning ball bearings?

A: Self-aligning ball bearings typically operate under ISO 492 Normal class tolerances, which are sufficient for accommodating shaft misalignment in general machinery. While higher ABEC or ISO precision classes reduce running noise and vibration, they do not alter the fundamental self-aligning capability. Selecting a higher precision class is usually only necessary for high-speed textile machinery spindles where rotational accuracy is critical.

Q: What are the recommended lubrication intervals for these double-row bearings?

A: Lubrication intervals depend heavily on the operating speed, ambient temperature, and exposure to agricultural dust or conveyor particulates. For open bearings without seal suffixes, regular relubrication with a high-quality lithium-complex grease is essential to flush out contaminants. The exact schedule should be calculated based on the bearing's dynamic load rating of 12.7 kN and the specific environmental contamination levels.

Q: How should I choose between domestic and Japanese brands for MRO replacement?

A: The choice depends on your maintenance budget, lead time requirements, and the criticality of the machinery. Premium Japanese brands often offer superior metallurgical consistency for continuous heavy-duty operations, while reliable domestic Chinese lines provide a highly cost-effective solution for non-critical conveyor or general manufacturing applications. We supply both options with full traceability to match your specific MRO strategy.
