Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier

A higher limiting speed does not guarantee better high-temperature performance.

Reference speed dictates thermal equilibrium while limiting speed defines material fatigue boundaries; correct application requires matching both to actual operating conditions to prevent premature failure.

I still remember the chill in a Chicago exhibition hall, not from the air conditioning, but from the panic of a machine tool buyer. He held a bearing catalog open to the technical specifications page, his finger trembling over two distinct numbers: reference speed and limiting speed. His supplier had treated them as interchangeable marketing figures. The result? A batch of high-speed angular contact ball bearings that seized after only a few hours of operation, the spindle temperature rising excessively due to ignored thermal limits. That moment clarified a critical gap in industrial procurement. Many buyers focus on the maximum rotational capability listed in brochures, missing the physical reality that heat generation often kills a bearing long before mechanical fatigue sets in. Understanding the distinction between these two ratings is not just academic; it is the difference between a reliable production line and costly unplanned downtime. [NEED_CITE: fundamental principles of bearing thermodynamics and friction]

To source effectively, you must look beyond the headline number. The right Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier will help you decode these parameters against your specific load, lubrication, and cooling conditions.

What Exactly Are Reference and Limiting Speeds?

Reference speed is a thermal benchmark, while limiting speed is a mechanical ceiling.

In every major manufacturer’s catalog, you will find these two values side by side, yet they represent entirely different physical phenomena. Reference speed is derived from the bearing’s ability to dissipate heat generated by internal friction. It assumes standard operating conditions, including a specific load ratio and adequate lubrication. When a bearing operates at its reference speed, it reaches a thermal equilibrium where the heat generated equals the heat dissipated. Exceeding this value does not mean immediate failure, but it signals that the temperature will rise continuously unless external cooling or improved lubrication is applied. [NEED_CITE: ISO standards for bearing thermal rating calculations]

Limiting speed, on the other hand, is determined by the mechanical integrity of the bearing components. It is the maximum speed at which the bearing can operate without risking catastrophic failure due to centrifugal forces, cage deformation, or rolling element skidding. This limit is absolute. Operating above the limiting speed, even for a short duration, can cause the cage to fracture or the rolling elements to lose contact with the raceways, leading to instant destruction.

For a Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier, distinguishing these two is the first step in proper selection. A buyer might request a bearing with a high limiting speed for a hot environment, not realizing that the reference speed is the true bottleneck. If the application generates significant heat, a bearing with a high limiting speed but poor thermal characteristics will fail prematurely due to grease breakdown or seal damage, long before the cage reaches its mechanical limit.

Why Do Bearings Fail at “Allowable” Speeds?

Catalog speeds assume ideal laboratory conditions, not the harsh reality of your factory floor.

It is a common misconception that if a bearing is rated for a certain speed, it will perform reliably at that speed in any application. However, the reference and limiting speeds listed in catalogs are based on standardized test conditions. These include ideal lubrication, perfect alignment, moderate loads, and efficient heat dissipation. In real-world scenarios, these conditions are rarely met. Friction increases due to misalignment, heavy loads, or contaminated lubricant, causing the actual operating temperature to exceed the predicted thermal equilibrium. [NEED_CITE: tribology studies on real-world bearing friction factors]

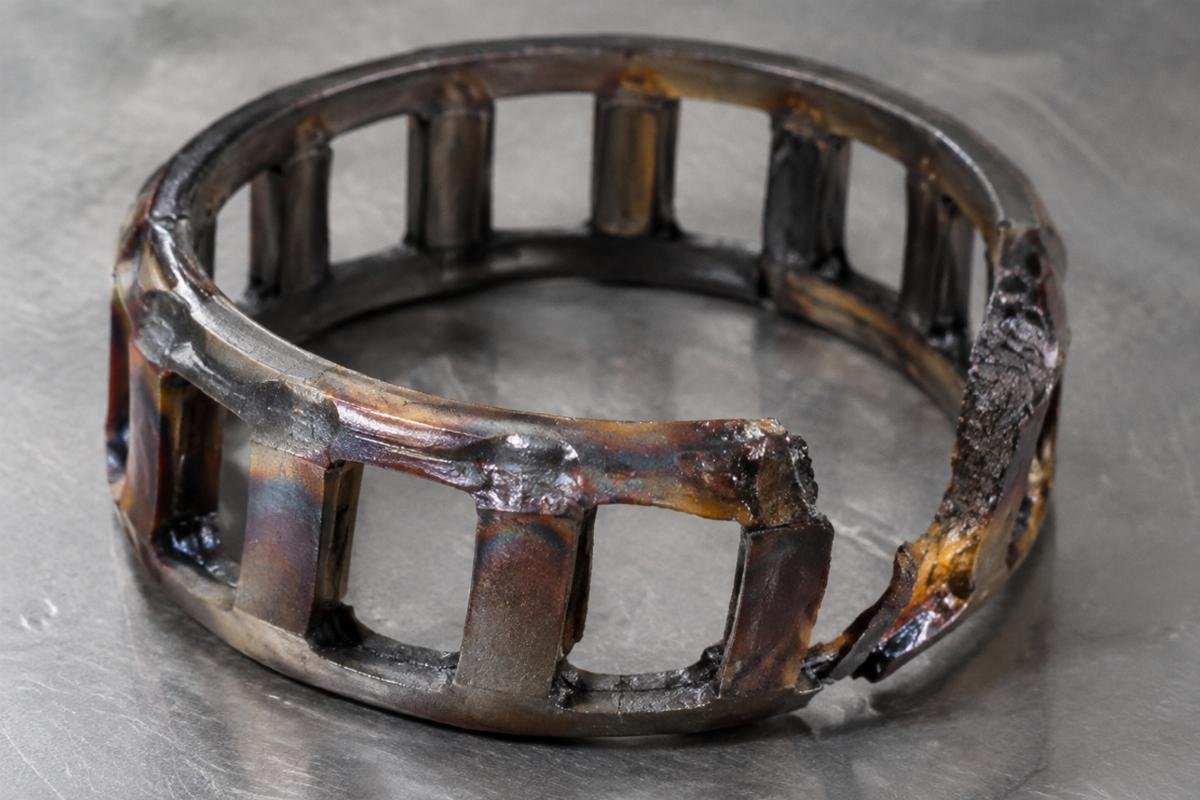

Consider a heavy-duty conveyor system in a mining operation. The selected cylindrical roller bearing had a limiting speed well above the operational requirement. However, the combined loads and poor ventilation in the housing caused the temperature to spike. The reference speed was exceeded, leading to rapid grease oxidation. The lubricant lost its viscosity, increasing friction further, which created a vicious cycle of heating. Eventually, the cage failed, not because the mechanical limit was reached, but because the thermal environment degraded the structural integrity of the lubricant and the cage material.

Another frequent issue arises in automotive gearboxes. Deep groove ball bearings operating near their reference speed without adequate cooling can experience seal melting. The heat generated by the rubbing seals adds to the internal friction, pushing the total heat generation beyond the dissipation capacity. The seal degrades, allowing contaminants to enter and lubricant to escape, leading to premature wear. This is why a knowledgeable Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier will always ask about the cooling method and housing design, not just the shaft RPM.

How to Calculate the True Safe Operating Speed?

Apply derating factors for lubrication, load, and sealing friction to find the real limit.

Determining the safe operating speed requires a step-by-step adjustment of the catalog reference speed. You cannot simply take the listed value and apply it directly. Instead, you must account for the specific conditions of your application. This process involves applying correction factors that reduce the theoretical speed to a practical, safe operating limit.

1. Assess the Load Ratio: Heavy loads increase internal friction and heat generation. If the equivalent dynamic load exceeds a certain percentage of the basic dynamic load rating, the reference speed must be derated significantly. Light loads allow for higher speeds, but too light a load can cause skidding, which also generates heat. [NEED_CITE: manufacturer engineering manuals for load-based speed derating]
2. Evaluate Lubrication Type: Oil lubrication generally allows for higher reference speeds than grease because it facilitates better heat removal and reduces churning losses. If you are using grease, consider the base oil viscosity and the thickener type. High-speed greases with synthetic base oils can maintain film strength at higher temperatures, allowing for a less aggressive derating.
3. Account for Sealing Friction: Contact seals generate significant friction, especially at high speeds. If your application uses contact seals, you must apply a substantial derating factor to the reference speed. Non-contact seals or shields generate much less heat and allow for higher operational speeds.
4. Consider Cooling Efficiency: If the bearing housing has forced cooling, such as an oil mist system or external fan, you can potentially operate closer to or even above the standard reference speed. Without active cooling, natural convection may be insufficient, requiring a lower operating speed to maintain thermal equilibrium.

A common mistake is ignoring the dN value (bore diameter in mm multiplied by speed in rpm). While useful for quick checks, it does not account for the specific thermal characteristics of the bearing design. A more rigorous approach involves calculating the thermal balance based on the specific friction torque of the bearing type. For complex applications, consulting with a technical expert is essential. A reliable Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier can provide these derating calculations, ensuring that the selected bearing will not overheat in your specific setup.

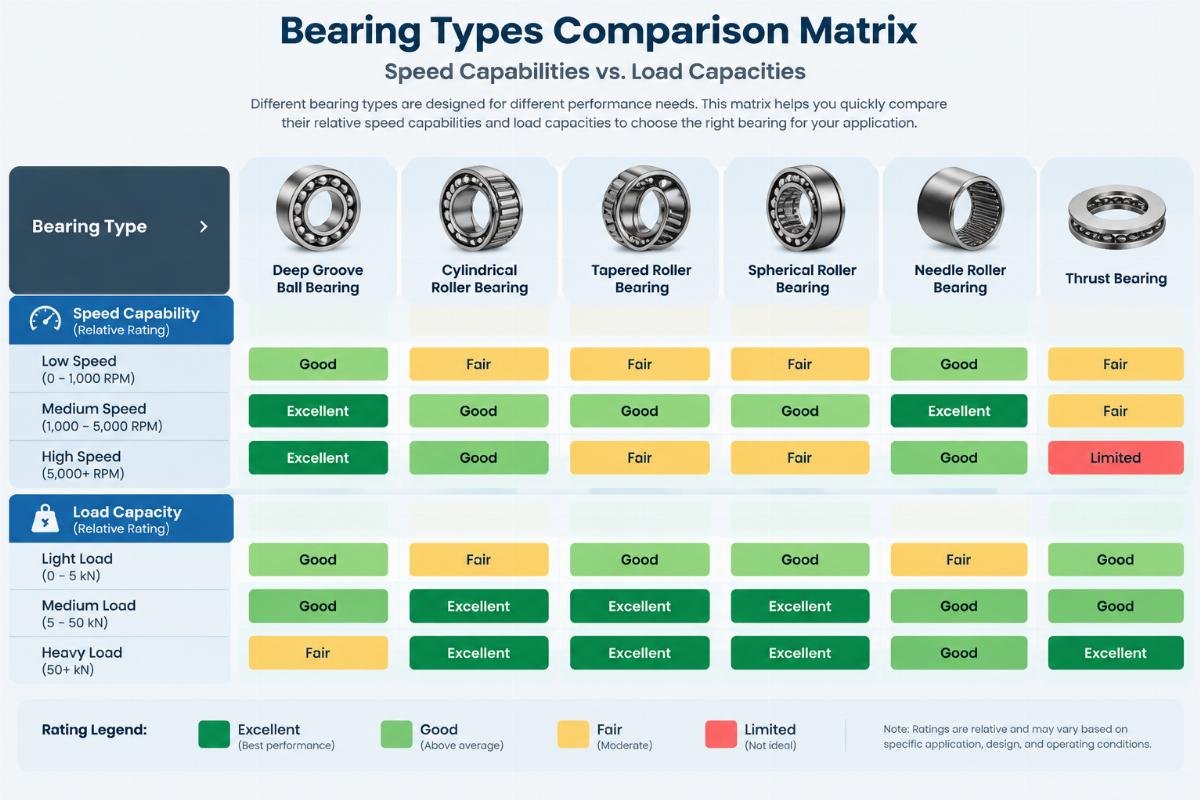

Which Bearing Type Suits Your High-Speed Application?

Ball bearings generally offer higher speed capabilities than roller bearings due to lower friction.

When selecting a bearing for high-speed applications, the type of rolling element and the cage design are critical. Ball bearings, such as deep groove ball bearings and angular contact ball bearings, typically have higher reference and limiting speeds than roller bearings. This is because balls have a smaller contact area, resulting in lower friction and less heat generation. Roller bearings, while capable of handling heavier loads, generate more friction and are therefore more limited in speed.

The cage material also plays a pivotal role. Standard steel cages may not withstand the centrifugal forces at very high speeds. Polyamide or phenolic resin cages are often used in high-speed applications because they are lighter and have better damping properties. In extreme cases, bronze or specialized composite cages are required. The choice of cage affects both the limiting speed (mechanical strength) and the reference speed (friction and heat generation).

For a machine tool spindle, angular contact ball bearings with ceramic rolling elements might be chosen to reduce weight and centrifugal force, thereby increasing the limiting speed. However, the reference speed must still be managed through precise oil-air mist lubrication. In contrast, a heavy-duty gearbox might use cylindrical roller bearings, where the speed is limited by the reference speed due to the higher friction of the line contact. Understanding these trade-offs is vital. A proficient Bearing Speed Ratings: Reference vs Limiting Speed Wholesale Supplier will guide you toward the right type, balancing load capacity with speed requirements to ensure optimal performance.

Conclusion

Match thermal and mechanical limits to your real-world conditions.

Reference speed governs heat, while limiting speed governs mechanical survival. Ignoring either leads to failure. By applying proper derating factors and selecting the right bearing type, you ensure reliability. Partner with a technical partner who understands these nuances to avoid costly downtime.
