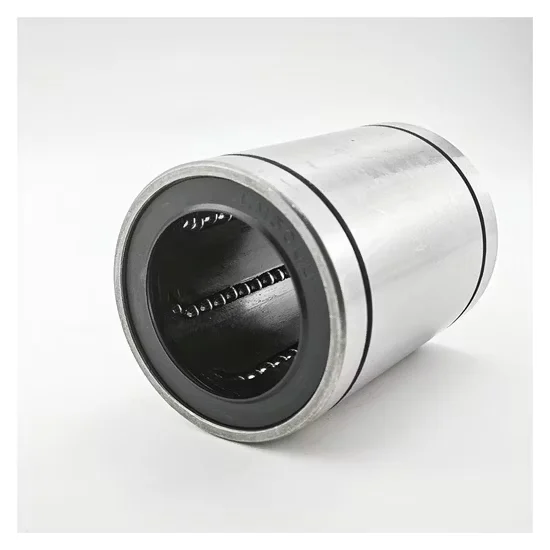

LM17UUOP Open Type Linear Motion Bearing 17mm Shaft [WARN] draft identifier mismatch

Multi-Brand Sourcing Unified — Procure OZD, KOYO, NTN, and NSK variants in a single consolidated shipment without juggling multiple vendors for your linear motion projects.

Technical Specifications

Application Suitability

Why Dust Ingress Destroys the OZD KOYO NTN NSK Lm 17 Uu Op linear motion bearing Before Fatigue Does

Contaminant buildup inside the open recirculation zone causes abrasive wear long before dynamic load limits are reached.

During my technical support deployments in Nigerian timber processing facilities, I witnessed firsthand how severe airborne dust compromises linear guides. The open profile, while excellent for clearance adjustment, creates a direct pathway for microscopic wood particles to infiltrate the ball recirculation channels. Once trapped, these particulates act as lapping compounds, rapidly degrading the raceway and causing catastrophic seizure. Standard fatigue life calculations become entirely irrelevant when the operating environment introduces such aggressive contamination. [NEED_CITE: particulate contamination as a primary driver of premature linear guide failure in heavy machinery].

Matching the Lm 17 Uu Op to High-Precision Feed Systems

When integrating the OZD KOYO NTN NSK Lm 17 Uu Op linear motion bearing into CNC tool changers, the open profile allows for precise clearance adjustment on hardened shafts. Different manufacturers employ subtle variations in their recirculation cap geometry and ball retention mechanisms. Our engineering team provides comprehensive cross-brand equivalent model consultation to ensure the selected cage material and open-cut dimensions align perfectly with your specific traverse speeds and load profiles, preventing unexpected binding during high-speed indexing.

Navigating Abrasive Environments and Clearance Sensitivity

Open-type linear guides demand rigorous installation tolerances; an improperly adjusted clearance will cause the recirculating balls to bind or skew under load, generating excessive friction heat. In dusty conditions like timber processing, external wipers and frequent lubrication flushing are mandatory to prevent particle entrapment within the exposed segment. The choice between steel, copper, or nylon cages directly influences how well the assembly handles vibration and particulate intrusion. Furthermore, thermal expansion from continuous machining operations can alter the running clearance, necessitating careful initial setup to accommodate temperature fluctuations without inducing preload stress. [NEED_CITE: installation misalignment and inadequate sealing as critical factors in linear bearing seizure].

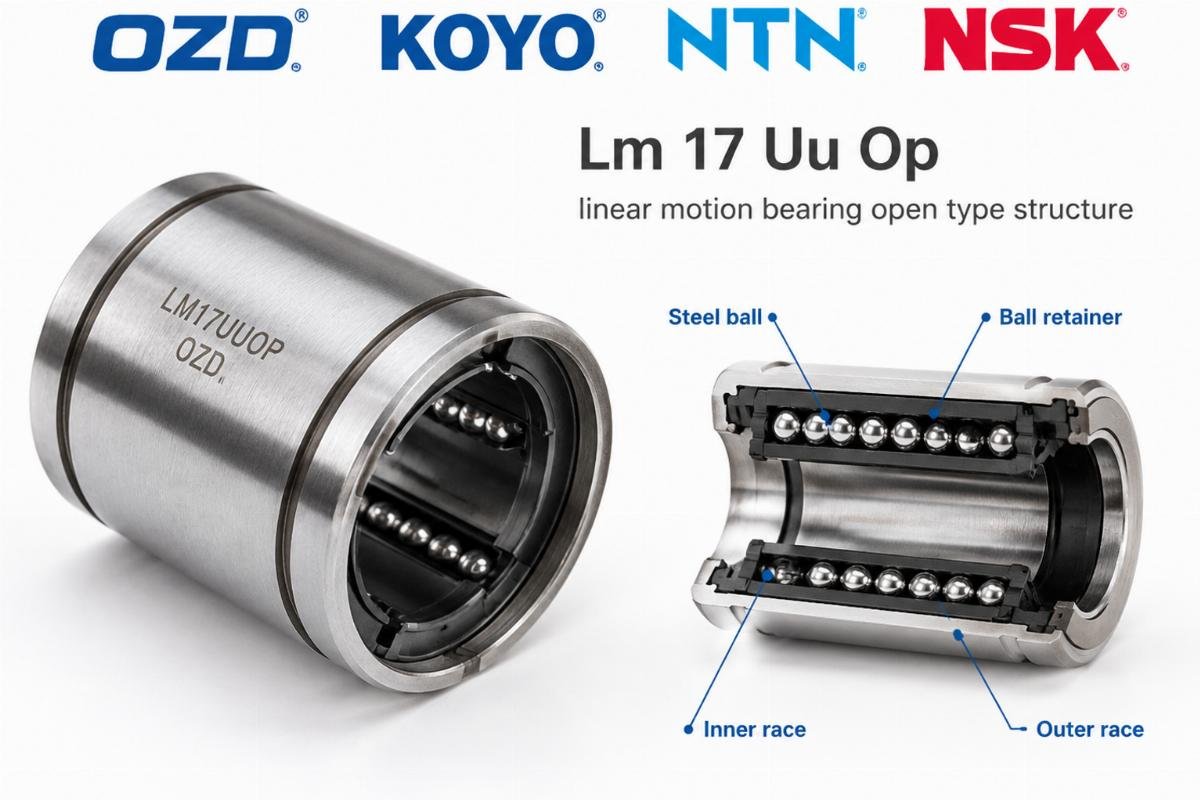

Decoding the Open Profile and Cage Variants

The open type bearing design removes a segment of the outer cylinder, enabling the use of adjustable pillow blocks to dial in the exact running clearance. This 17mm bore diameter variant relies on a shaft hardness matching its own HRC 60-64 raceway to prevent uneven wear and brinelling under heavy static loads. Cage selection dictates operational behavior: nylon cages offer quieter operation and tolerate minor misalignments, while steel or copper cages provide superior rigidity and thermal dissipation under heavy radial loads. Confirming the exact sealing arrangements and open-cut geometry with the manufacturer's production facilities is essential before bulk ordering to avoid dimensional mismatches.

The Cascading Impact of Incorrect Clearance Setup

Selecting the wrong cage material or failing to set the adjustable clearance correctly leads to catastrophic damage to both the bearing and the hardened shaft. Such installation errors trigger unplanned downtime and void warranty claims, as the failure mode shifts from normal fatigue to severe abrasive scoring and ball skewing. Per ISO 15243 frameworks, these surface distress patterns are classified as mounting or lubrication-related failures rather than manufacturing defects, leaving the end-user to bear the full replacement cost. [NEED_CITE: ISO 15243 classification for surface damage caused by foreign particle ingress and misalignment].

Securing Traceable Linear Guides for Critical MRO

Sourcing genuine linear guides requires strict verification, especially when mixing brands for urgent maintenance across different machine zones. We supply fully traceable OZD, KOYO, NTN, and NSK units with complete batch documentation, eliminating the risk of counterfeit open-type bearings that fail prematurely under load. Our massive spot inventory covers thousands of standard part numbers, allowing single-unit emergency dispatches or full container consolidation for large-scale retrofits. Furthermore, our technical team reviews your clearance adjustment procedures to prevent the exact ball-binding issues I witnessed in African timber mills, ensuring long-term reliability.

Documentation & Authenticity

• Certificate of Conformity verifying the HRC 60-64 raceway hardness for this 17mm open bearing.
• Original batch traceability logs linking the specific cage material to the manufacturer's production run.
• Dimensional inspection reports confirming the precise 17mm bore and open-cut width tolerances.
• Material test certificates validating the steel, copper, or nylon cage composition against OEM specs.

Storage, Handling & Mounting

• Keep the open-type bearing in its original anti-corrosion wrapping until mounting to protect the exposed recirculation channels.
• Use clean lint-free gloves during installation to prevent skin oils from degrading the initial lubricant on the 17mm bore surface.
• Adjust the pillow block clearance incrementally; overtightening the open profile will immediately cause the steel balls to skew and bind.
• Flush the assembly with clean lubricant after mounting if the machine operates in high-dust environments like timber processing.

Engineering Review for Your Linear Motion Setup

To ensure optimal selection, please provide the exact radial and axial loads, traverse speeds, and operating temperatures of your CNC or automation equipment. Share your current shaft hardness and the specific environmental contaminants present so we can recommend the ideal cage material and wiper configuration. Our engineering team will cross-check these parameters to confirm the Lm 17 Uu Op clearance setup and prevent premature binding in your specific application.

Frequently Asked Questions

Q: What does the open type design mean for the Lm 17 Uu Op?

A: The open type design features a longitudinal cut in the outer cylinder, allowing it to be mounted in an adjustable pillow block. This enables precise clearance adjustment on the 17mm shaft, which is critical for eliminating play in high-precision CNC machining parts without inducing excessive friction.

Q: How do I choose between steel, copper, and nylon cages?

A: Nylon cages provide quieter operation and handle minor misalignments well, making them ideal for standard automation equipment. Steel and copper cages offer higher rigidity and thermal conductivity, which is necessary for machine tools experiencing heavy radial loads or elevated operating temperatures.

Q: Are the UU and OP suffixes standard across all brands?

A: These specific suffixes are currently unverified in universal public catalogs and require direct manufacturer catalog confirmation. We strongly recommend consulting our technical team to verify the exact sealing arrangements and open-cut geometry for your chosen brand before finalizing the purchase order.

Q: How can I prevent the bearing from seizing in dusty conditions?

A: In abrasive environments, the open recirculation zone is vulnerable to particle ingress. You must install external wiper seals on the adjustable housing and implement a frequent lubrication flushing schedule to expel contaminants before they cause abrasive wear and ball binding.
