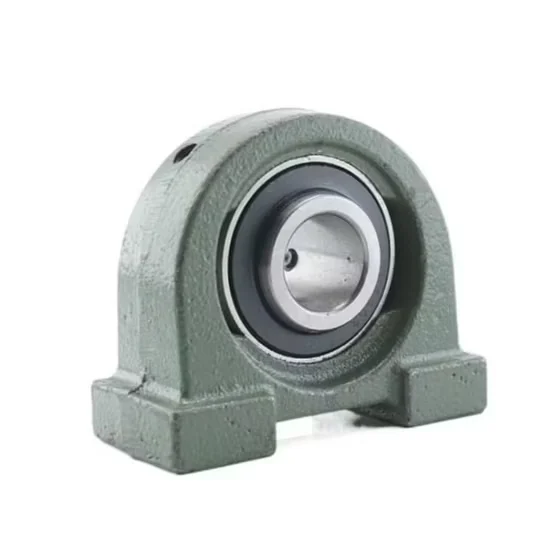

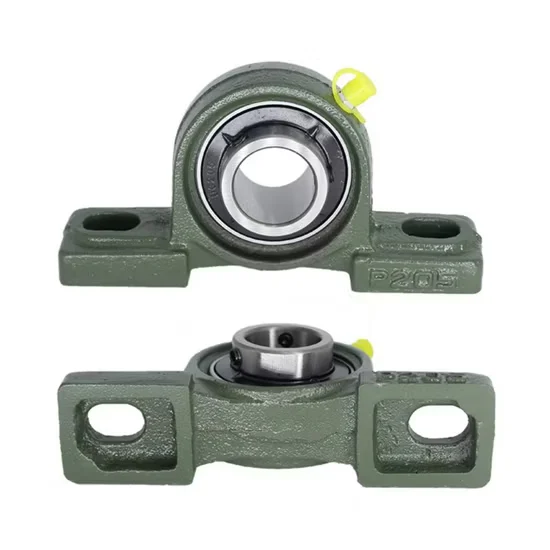

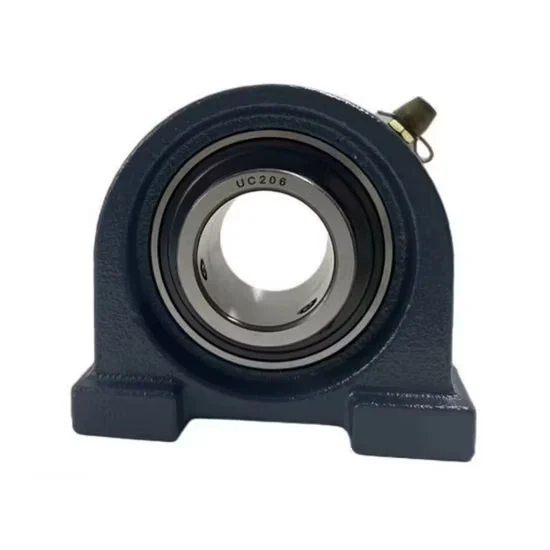

UCP316 Pillow Block Bearing for Industrial Machinery [WARN] draft identifier mismatch

Official App QR Verification — Scan the housing label to instantly confirm the origin and batch traceability of your UCP316 pillow block bearing.

Technical Specifications

Application Suitability

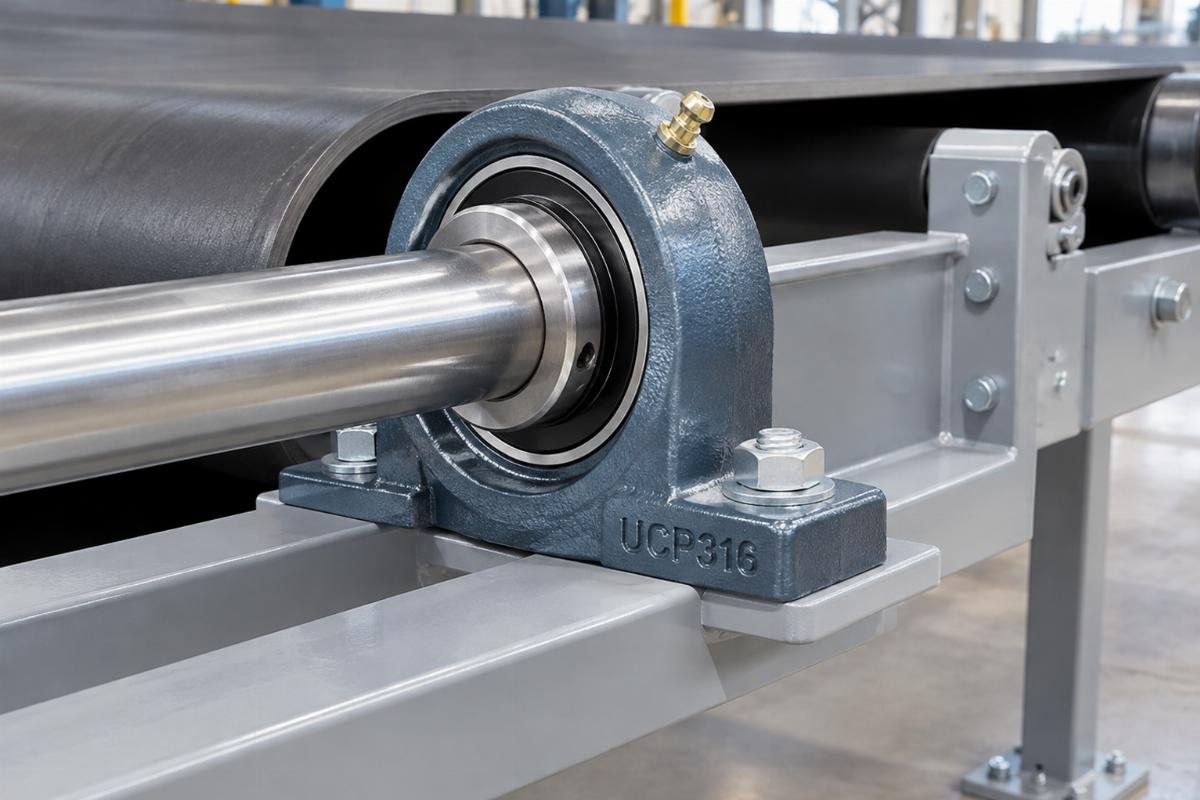

Why Conveyor Belts Fail When the UCP316 Pillow Block Bearing Seizes

Premature shaft lockups usually stem from ignoring dust ingress rather than basic load miscalculations.

Years ago on a Brazilian mining site, I watched a massive conveyor halt completely because standard seals choked on abrasive dust. The equipment wasn't overloaded; the sealing arrangement simply failed to match the environment, leading to catastrophic shaft binding [NEED_CITE: bearing failure modes related to solid contamination per ISO 15243]. Sourcing a reliable UCP316 pillow block bearing requires looking past basic dimensions and scrutinizing how the housing defends the internal raceway against site-specific pollutants. Many maintenance managers assume that a heavier housing automatically translates to longer life, but if microscopic silica particles bypass the sealing lips, the internal geometry will degrade within months. Understanding the exact contamination profile of your facility is the first critical step in preventing these devastating line stoppages and protecting your production throughput.

Matching the Housing to the Operating Environment

Selecting the right UCP316 pillow block bearing means evaluating the physical space and the contamination level around the shaft. Our engineering team cross-references your site conditions with available seal variants and housing clearances to prevent the exact dust-ingress failures I witnessed in South America. We ensure the cast iron housing provides the necessary structural damping while maintaining precise alignment for continuous duty cycles. When dealing with heavy industrial machinery, the mounting surface must be perfectly flat to avoid distorting the housing bore, which would otherwise pinch the outer ring and restrict thermal expansion. Proper environmental matching also involves considering the washdown procedures used in food processing or agricultural settings, where aggressive cleaning chemicals can rapidly degrade inadequate protective coatings on the external surfaces.

Managing Dust, Misalignment, and Continuous Radial Loads

Conveyor systems subject mounted units to relentless radial forces and constant particulate exposure. If the internal clearance cannot accommodate thermal expansion from continuous friction, the rolling elements will skid and degrade rapidly [NEED_CITE: thermal expansion effects on internal clearance in mounted units]. Oil lubrication demands strict replenishment schedules to flush out microscopic debris, while the deep groove raceway must tolerate minor angular misalignments caused by frame deflection. Ignoring these operational realities guarantees accelerated wear and unplanned line stoppages. Furthermore, the structural flexing of long conveyor frames introduces dynamic misalignment that standard rigid housings cannot absorb, leading to edge loading on the rolling elements. Evaluating the total system deflection ensures that the selected unit can articulate slightly without compromising the integrity of the sealing lips or the internal load distribution.

Decoding the P4 Precision and Cast Iron Housing Dynamics

The P4 precision rating ensures tighter dimensional tolerances, which is critical for minimizing vibration at higher operational speeds. A deep groove raceway paired with a single-row design optimizes the distribution of radial loads across the rolling elements. The cast iron housing (Block Model P) delivers substantial structural rigidity and inherent vibration damping, protecting the internal geometry from shock loads. Furthermore, the availability of V1 through V4 vibration grades allows maintenance teams to specify the exact smoothness required for sensitive textile or processing machinery. Achieving this level of accuracy requires exact grinding of the raceways and strict assembly controls, ensuring that the inner ring rotates with minimal eccentricity. This reduced runout is particularly vital in applications where shaft vibration could compromise the quality of the end product, such as in paper manufacturing or precision textile weaving.

The Hidden Financial Drain of Incorrect Seal and Clearance Selection

Specifying a standard unit for a high-dust environment inevitably leads to premature failure and catastrophic damage to the driven shaft. According to ISO 281 frameworks, contamination drastically reduces the calculated fatigue life, turning a minor component replacement into a major structural repair [NEED_CITE: ISO 281 life modification factors for contamination]. The resulting unplanned downtime and voided equipment warranties far exceed the initial procurement savings of choosing an inadequately sealed alternative. Beyond the immediate cost of the replacement part, the secondary damage to adjacent components like couplings, gearboxes, and drive motors can multiply the financial impact significantly. Maintenance teams often overlook these cascading failures, focusing only on the immediate bearing replacement while ignoring the broader systemic damage caused by a single poorly specified mounted unit operating in harsh conditions.

Securing Authentic Units with Full Traceability

Procuring genuine multi-brand units requires strict channel verification to avoid counterfeit housings that crack under load. We provide complete batch traceability documentation for every OZD, KOYO, NTN, or NSK unit shipped. Our massive spot inventory covers thousands of standard part numbers, enabling rapid consolidation for urgent maintenance requirements. Additionally, our technical team offers cross-brand equivalent model consultation to ensure exact fitment when your preferred brand faces supply chain delays. Counterfeit cast iron housings often contain hidden porosity or use inferior metallurgical compositions that fail catastrophically under dynamic loading. By enforcing rigorous incoming inspections and maintaining direct relationships with authorized manufacturing facilities, we guarantee that every unit meets the exact metallurgical and dimensional specifications required for safe, long-term industrial operation.

Documentation & Authenticity

• Certificate of Conformity verifying the exact P4 precision rating and vibration grade.
• Original factory batch traceability records linking the housing to its specific casting date.
• Dimensional inspection reports confirming the deep groove raceway tolerances before dispatch.
• Material test certificates validating the structural integrity of the cast iron block.

Storage, Handling & Mounting

• Store the cast iron housing in its original packaging to prevent surface corrosion before installation.
• Use clean gloves when handling the P4 precision insert to avoid transferring skin oils to the raceway.
• Align the Block Model P base carefully to prevent inducing internal stress during bolt tightening.
• Follow the specified oil lubrication intervals to maintain the deep groove raceway performance.
• Verify the V1-V4 vibration grade matches the equipment manual before mounting the unit.

Preparing Your Technical Parameters for Review

To ensure optimal selection, please share your specific radial loads, operational speeds, and ambient temperature ranges. Providing the exact OEM equipment model number allows our engineers to perform precise cross-reference verification. Detail the level of dust or moisture exposure so we can recommend the most appropriate sealing configuration for your facility. Including information about your current maintenance intervals and any historical failure modes will help our technical team identify potential weaknesses in your existing setup. This comprehensive data exchange ensures that the proposed solution addresses the root cause of previous failures rather than merely treating the symptoms, ultimately delivering a more reliable and cost-effective operation for your plant.

Frequently Asked Questions

Q: How do I verify the authenticity of multi-brand pillow block bearings?

A: We supply comprehensive traceability documentation, including factory batch records and certificates of conformity. You can verify the origin of your UCP316 pillow block bearing through official manufacturer channels using the provided QR codes and serial numbers, ensuring you receive genuine products from authorized supply chains.

Q: What are the cross-reference equivalents for this specific designation?

A: While UCP316 is a standardized designation, dimensional nuances can exist between manufacturers like KOYO, NTN, and NSK. Our engineering team provides exact cross-reference mapping based on your housing footprint and shaft diameter, ensuring exact replacement without requiring mechanical modifications to your existing conveyor frames.

Q: How does P4 precision compare to standard grades in these applications?

A: Standard grades often suffice for slow-moving agricultural equipment, but P4 precision offers significantly tighter running accuracy. This minimizes vibration and heat generation in high-speed industrial machinery, extending the service life of the deep groove raceway and reducing the frequency of oil lubrication replenishment cycles.

Q: What is the recommended oil lubrication interval for high-speed machinery?

A: The exact interval depends on your operational speed, ambient temperature, and load profile. Generally, continuous high-speed operation requires more frequent oil replenishment to flush contaminants and manage thermal expansion. Share your specific duty cycle parameters, and our team will calculate a customized maintenance schedule.

Q: How do I select the correct vibration grade for my equipment?

A: Vibration grades V1 through V4 dictate the allowable imbalance and noise levels during rotation. Sensitive textile machines typically require stricter grades like V3 or V4 to prevent yarn defects, whereas heavy-duty conveyors can operate efficiently with V1 or V2. Specify your equipment type for precise grading.
