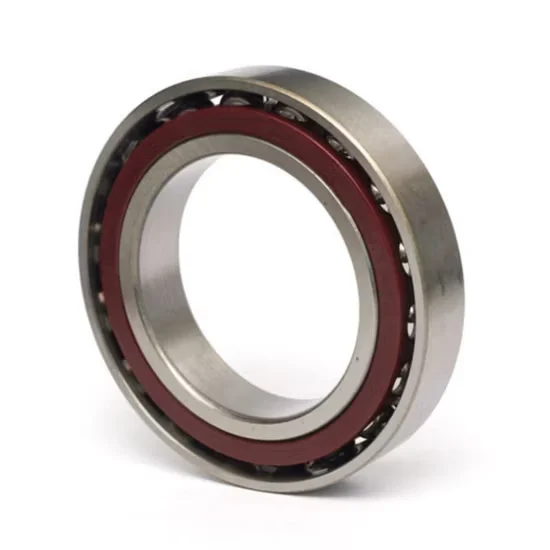

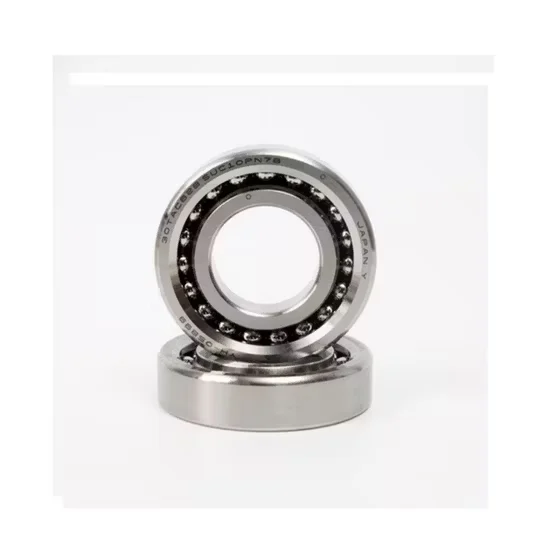

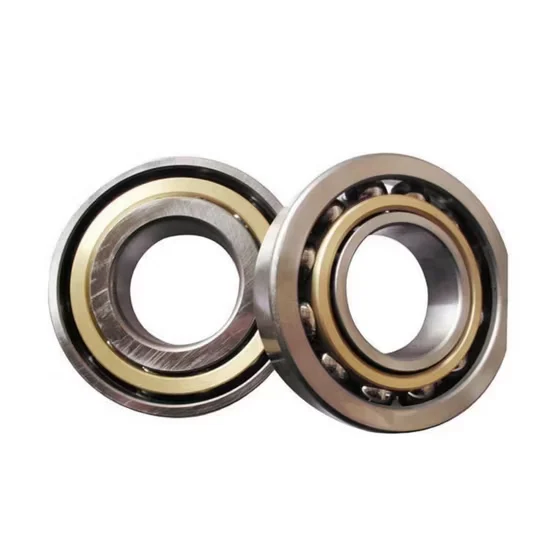

Thrust Axial Angular Contact Ball Bearings 2Z for Screw Mounting

Batch-Level Traceability — Every shipment includes original manufacturer lot numbers and material certificates to guarantee metallurgical integrity for high-speed spindle applications.

Technical Specifications

Application Suitability

Why Sourcing the Right Thrust Axial Angular Contact Ball Bearing Supplier Prevents Spindle Vibration

Precision alignment starts before the bearing even leaves the warehouse.

When procurement teams rush MRO orders for ball screw assemblies, they often accept generic thrust bearings without verifying the exact clearance class or cage material. I have seen machine tool spindles vibrate out of tolerance simply because a polyamide cage was swapped for a brass one during a hasty replacement, altering the thermal expansion profile. Securing a reliable thrust axial angular contact ball bearing supplier ensures that the GCr15 steel metallurgy and exact vibration grades match the original equipment specifications, preventing catastrophic runout [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the Bearing to High-Speed Screw Mounting Dynamics

Selecting the correct configuration requires balancing axial rigidity with thermal stability. Our engineering team cross-references your machine tool's axial load profiles to recommend the optimal single or double row setup. As a dedicated thrust axial angular contact ball bearing supplier, we provide exact clearance matching to ensure the ball screw maintains zero-backlash positioning under varying cutting forces.

Thermal and Lubrication Challenges in Machine Tool Spindles

High-speed screw mounting applications generate significant friction heat, directly impacting the internal clearance of the bearing. An open seal design is typically preferred here to allow oil-air or oil-jet lubrication to flow freely through the rolling elements, carrying heat away from the raceway. If the lubrication interval is extended or contamination enters the open raceway, the polyamide cage can experience accelerated wear. Proper filtration and strict adherence to the OEM's lubrication schedule are critical to maintaining the V1 or V2 vibration standards [NEED_CITE: lubrication and thermal limits in high-speed spindle bearings].

Decoding Material and Clearance Options for Axial Loads

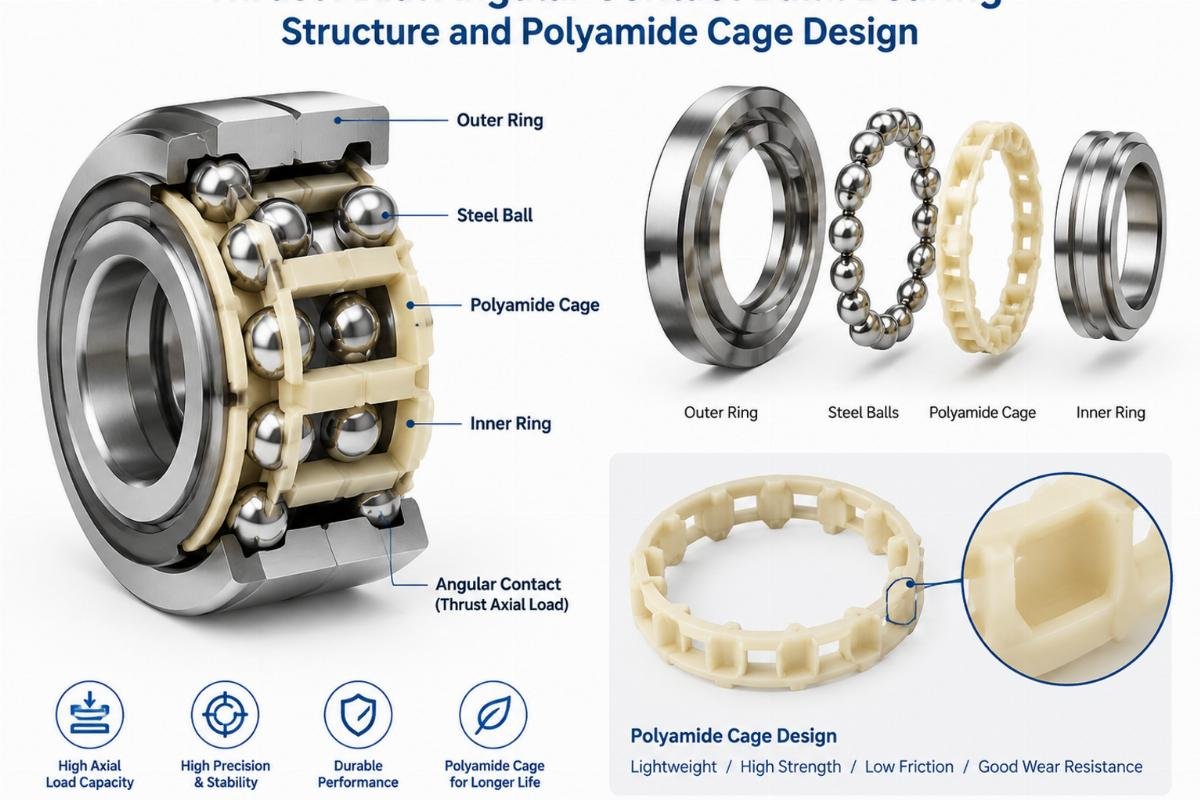

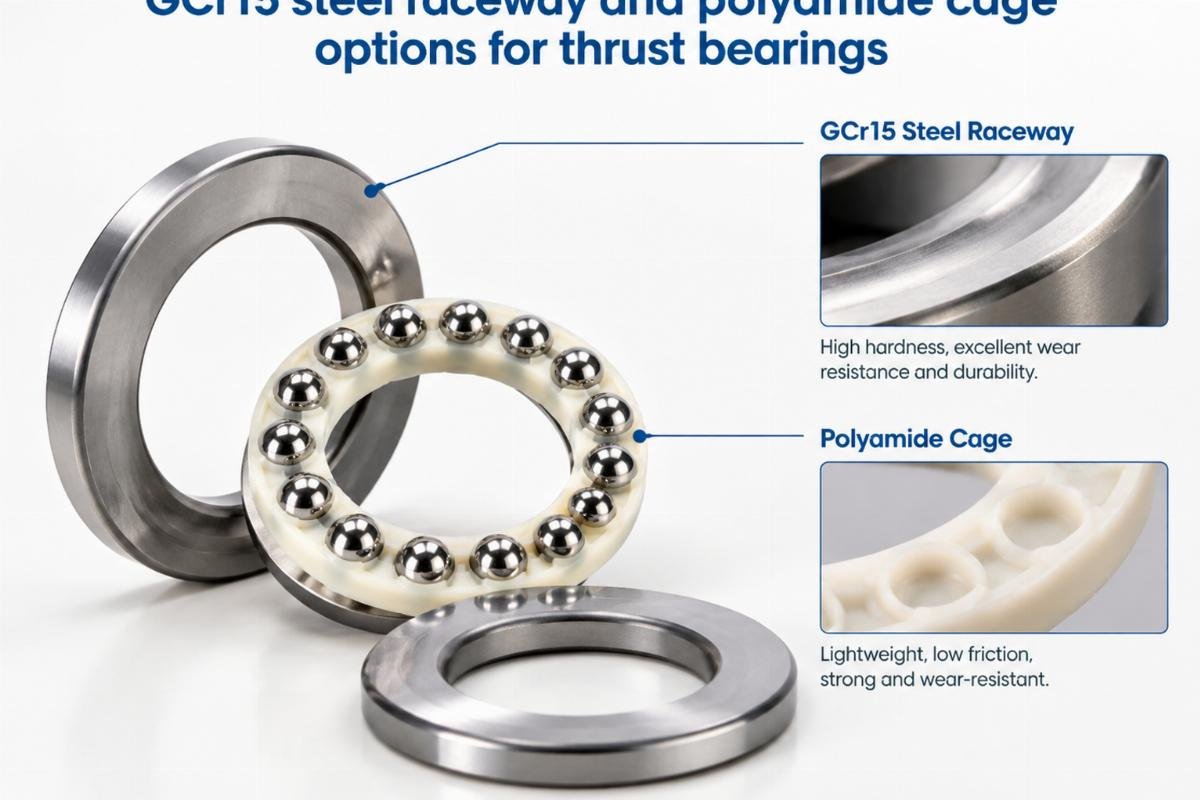

The GCr15 bearing steel construction provides the necessary core hardness and fatigue resistance for continuous thrust loading. For environments with elevated moisture or specific chemical exposures, alternative stainless steel variants can be evaluated during the selection phase. The nylon polyamide cage is specifically chosen for its low mass and high-speed capabilities, reducing centrifugal forces on the rolling elements compared to heavier metallic cages. Furthermore, selecting the precise clearance class—from C0 up to C5—compensates for the thermal expansion of the screw shaft during prolonged machining cycles, ensuring the thrust load is evenly distributed across the contact angle without preloading the bearing into a bind.

The Hidden Downtime Costs of Incorrect Clearance Selection

Installing a standard C0 clearance bearing in a high-speed ball screw application often leads to thermal seizure. As the screw shaft elongates from cutting heat, the internal clearance vanishes, causing the rolling elements to skid and the cage to fracture. This results in unplanned downtime, scrapped precision parts, and potential damage to the entire spindle assembly. Following ISO 281 guidelines for dynamic load rating adjustments under thermal stress is essential to avoid these premature failures [NEED_CITE: ISO 281 life calculation adjustments for thermal gradients].

Why Procurement Teams Rely on Our Technical Verification

We do not just ship boxes; we verify the exact vibration grade and clearance class against your machine tool's OEM requirements. Our inventory includes genuine products from premium global brands alongside reliable domestic lines, all backed by complete batch traceability. When you need a specific double-row configuration for a heavy-duty compressor, our cross-brand equivalent consultation ensures you get the exact axial load capacity without waiting for obsolete part numbers. We consolidate mixed-brand orders into single shipments, eliminating the coordination headaches of dealing with multiple vendors for a single spindle rebuild.

Documentation & Authenticity

• Original manufacturer batch traceability linking GCr15 steel heat numbers to the specific bearing lot.
• Dimensional and running accuracy inspection reports confirming V1 or V2 vibration limits before dispatch.
• Certificate of Conformity verifying the exact C0 to C5 clearance class and polyamide cage material.
• Official brand authentication QR codes for premium international bearing lines upon request.
• Material test reports detailing the metallurgical composition of the thrust bearing raceways.

Storage, Handling & Mounting

• Store the open-type bearings in their original vapor-phase inhibitor packaging to prevent raceway corrosion before spindle assembly.
• Use clean, lint-free gloves when handling the polyamide cages to avoid transferring skin oils that degrade the nylon at high speeds.
• Maintain strict temperature control in the staging area to ensure the GCr15 steel dimensions remain stable during clearance verification.
• Apply the specified spindle oil immediately after unsealing to protect the open raceways from ambient dust ingress.
• Verify the single or double row axial load direction markings before pressing the bearing into the screw mounting housing.

Engineering Support for Your Next Spindle Rebuild

To ensure optimal performance, please provide the exact machine tool model, ball screw diameter, and maximum operational RPM. Share the specific axial cutting forces and ambient temperature ranges so our technical team can calculate the required clearance class and confirm the single or double row configuration. We will cross-reference your OEM part numbers and provide a comprehensive selection report detailing the recommended thrust axial angular contact ball bearing specifications.

Frequently Asked Questions

Q: How do I determine the correct clearance class for a high-speed ball screw?

A: The ideal clearance depends on the screw's thermal expansion and the axial preload required for machining accuracy. Provide your maximum RPM, operating temperature gradient, and OEM specifications. Our engineering team will calculate the thermal growth and recommend a C2, C0, or C3 class to prevent thermal binding while maintaining zero-backlash positioning.

Q: What causes premature cage failure in screw mounting applications?

A: Cage failure typically stems from inadequate lubrication, contamination in the open raceway, or excessive axial shock loads. In high-speed spindles, using the wrong lubricant viscosity or extending oil-air intervals starves the polyamide cage, leading to friction heat and structural degradation. Regular filtration and strict adherence to OEM lubrication schedules mitigate these risks.

Q: Should I choose a single row or double row configuration for my compressor?

A: This depends on the magnitude and direction of the axial loads. Single row designs handle heavy unidirectional thrust, while double row configurations manage bidirectional axial forces or require higher rigidity. Share your equipment's load diagrams and operational cycle data, and we will specify the exact row arrangement to match your compressor's rotor dynamics.

Q: How can I verify the authenticity of multi-brand bearings during MRO?

A: We provide comprehensive traceability documentation, including original batch numbers, material certificates, and official brand QR verification where applicable. Every thrust bearing is cross-referenced against the manufacturer's database to ensure the GCr15 steel grade, cage material, and clearance class perfectly match the genuine OEM specifications.

Q: Why is an open seal design preferred for these high-speed spindles?

A: Open designs allow oil-air or oil-jet lubrication systems to flow directly through the rolling elements, efficiently carrying away the friction heat generated at high RPMs. Shielded variants can trap heat and restrict lubricant flow in extreme speed applications. We supply open bearings optimized for these specific high-speed machine tool cooling circuits.
