Tapered Roller Bearings Installation Tools and Accessories Supplier

Original Batch Traceability — Every chrome steel single row tapered roller bearing ships with full manufacturer lot documentation to guarantee metallurgical consistency.

Technical Specifications

Application Suitability

Why Hammering Outer Rings Destroys Tapered Roller Bearings Before Startup

Finding a reliable tapered roller bearing installation tools and accessories supplier is just as critical as selecting the bearing itself.

Improper mounting forces transfer directly through the rolling elements, causing immediate raceway brinelling and cage deformation.

I witnessed this firsthand at a mining site in Mexico. Maintenance crews used a sledgehammer directly on the outer ring of a single row unit, collapsing the cage and seizing the entire conveyor belt. Providing the correct hydraulic pullers and mounting sleeves prevents these catastrophic field errors [NEED_CITE: bearing mounting damage classification per ISO 15243].

Aligning Open-Type Designs with Heavy-Duty Lubrication Needs

Open sealing configurations allow maintenance teams to flush out contaminated grease and apply fresh lubricants directly to the rolling elements. As a dedicated tapered roller bearing installation tools and accessories supplier, we ensure these open units are paired with appropriate induction heaters and handling sleeves. This flexibility is vital for gearboxes operating in high-dust environments where sealed variants would overheat from friction.

Managing Combined Loads and Thermal Expansion in Axle Assemblies

Truck axles and marine drives subject components to intense combined radial and axial loads, generating significant internal heat during continuous operation. Open single row designs require precise clearance adjustments during mounting to accommodate this thermal expansion. If the mounting tools lack the precision to set the correct endplay, the bearing will either run too loose, causing roller skewing, or too tight, leading to thermal seizure [NEED_CITE: thermal expansion effects on bearing clearance]. Proper hydraulic nuts and dial indicators are mandatory for achieving the target operational clearance without relying on guesswork or impact methods.

Material Selection Strategies for Corrosive and High-Load Environments

While standard chrome steel provides excellent fatigue strength for most industrial gearboxes, specific applications demand alternative materials to survive aggressive settings. We offer these single row configurations in stainless steel variants for marine drives exposed to saltwater, or ceramic rolling element options for electrically insulated motor setups. Selecting the right material option depends entirely on the moisture exposure and electrical arcing risks present in the operational environment. P0 precision ensures standard rotational accuracy, but the material choice ultimately dictates the component's survival. Matching the correct installation accessories to these specific material variants prevents surface damage during the pressing sequence.

The Financial Impact of Improper Mounting and Material Mismatch

Selecting the wrong material or using improvised mounting methods leads to unplanned downtime and catastrophic damage to adjacent shaft components. When a cage fails due to hammer impacts, the resulting metal debris contaminates the entire gearbox oil system, destroying seals and gears. This cascading failure voids equipment warranties and necessitates complete drivetrain rebuilds far exceeding the cost of proper tooling. Adhering to proper mounting protocols outlined in ISO 281 prevents these compounding financial losses and protects the overall machinery investment [NEED_CITE: economic impact of premature bearing failure].

Securing Genuine Components and Specialized Mounting Hardware

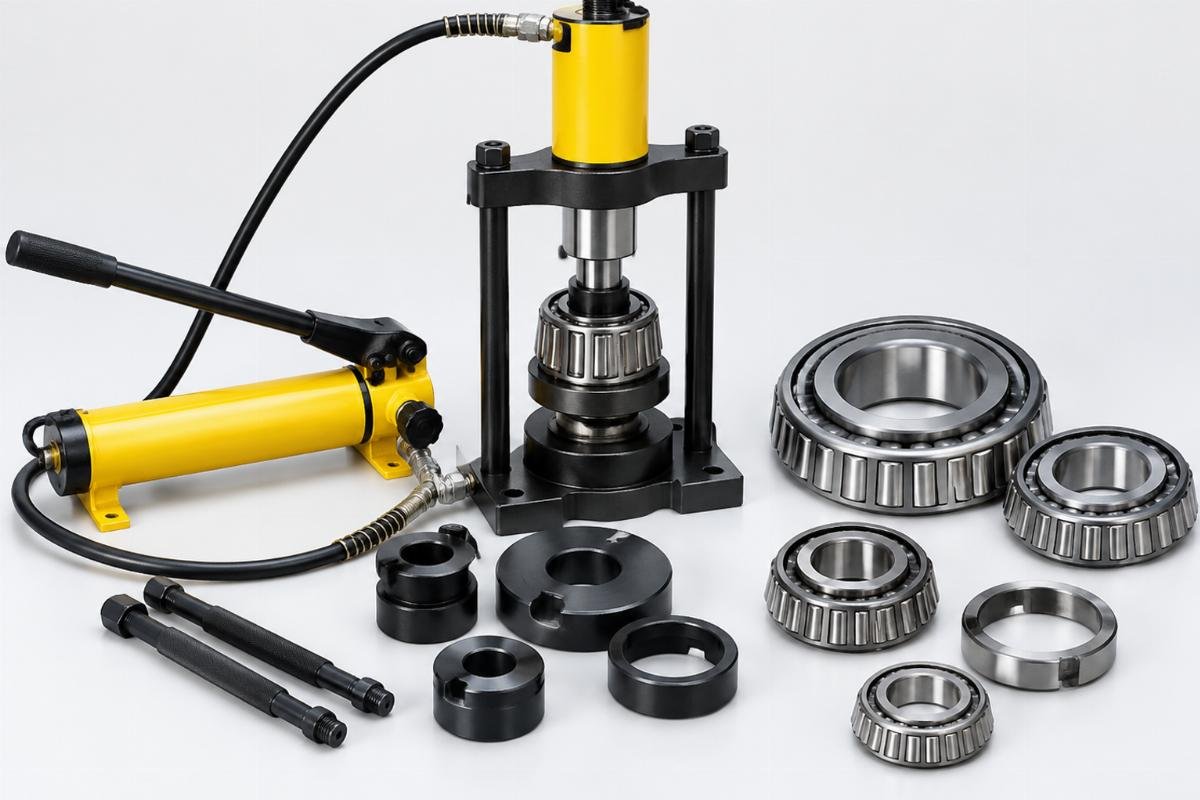

Sourcing from a verified tapered roller bearing installation tools and accessories supplier eliminates the risk of receiving counterfeit steel with compromised hardness. We provide complete traceability documentation for every chrome steel batch, ensuring the metallurgy matches the original equipment manufacturer's specifications. Furthermore, we consolidate specialized hydraulic pullers and induction heaters in the same shipment as the bearings. This prevents the dangerous practice of improvising with pipe wrenches and sledgehammers on the shop floor.

Documentation & Authenticity

• Certificate of Conformity verifying the exact P0 precision grade of the shipped batch
• Original manufacturer lot traceability reports confirming the chrome steel heat treatment records
• Dimensional inspection certificates validating the single row bore and outside diameter tolerances
• Material test reports proving the chemical composition of the selected steel or stainless variants
• Customs and origin documentation for international freight consolidation

Storage, Handling & Mounting

• Keep open-type units in their original vapor-corrosion inhibitor packaging until the exact moment of mounting.
• Use dedicated induction heaters rather than open flames to expand the inner ring without altering the chrome steel hardness.
• Always utilize matched hydraulic mounting sleeves to press the inner ring, never applying force through the rollers or cage.
• Store stainless steel variants separately from carbon steel tooling to prevent cross-contamination and surface rusting.
• Verify the cleanliness of the gearbox housing before installing open designs to prevent immediate grease contamination.

Engineering Data Required for Accurate Model Determination

To identify the exact single row model and necessary mounting hardware, please provide the specific equipment model and available shaft dimensions. Detail the operational radial and axial loads, rotational speeds, and ambient temperatures to allow our engineering team to calculate the required clearance. Specify any exposure to corrosive elements so we can recommend the appropriate stainless steel or ceramic material options.

Frequently Asked Questions

Q: How do we determine the exact tapered roller bearing model for our gearbox?

A: Provide the equipment nameplate data, available shaft envelope dimensions, and the specific radial and axial load profiles. Our engineering team uses these parameters to calculate the required dynamic load rating and select the optimal single row configuration. We also factor in the operating temperature to recommend the correct internal clearance and material options.

Q: What are the common failure modes caused by improper installation tools?

A: Using hammers or applying force through the outer ring transfers shock loads directly through the rolling elements. This causes immediate raceway brinelling, cage deformation, and roller skewing. These physical damages lead to premature fatigue, excessive vibration, and eventual seizure, which is why we mandate the use of proper hydraulic mounting accessories.

Q: How do we select the right installation accessories for safe mounting?

A: The selection depends on the shaft diameter and the required interference fit. We recommend hydraulic nuts for large diameters to apply controlled axial force, and induction heaters for expanding the inner rings safely. As a specialized tapered roller bearing installation tools and accessories supplier, we match the exact puller and sleeve sizes to your specific single row units.

Q: What is the recommended maintenance cycle for open-type single row designs?

A: Open designs require regular relubrication intervals based on the operating speed, load, and environmental contamination levels. Maintenance teams must flush out degraded grease and replenish with the specified lubricant quantity. We provide technical guidance on calculating these relubrication intervals and selecting the appropriate grease gun attachments to ensure proper distribution without overfilling.

Q: How do you handle custom size requests and mixed-brand consolidation?

A: We accommodate custom dimension requests by coordinating directly with the manufacturing facilities to adjust the bore, outside diameter, or width to your exact specifications. For mixed-brand orders, we consolidate various single row units and their corresponding mounting tools into a single shipment. This simplifies logistics and ensures all components arrive simultaneously for your scheduled maintenance shutdowns.
