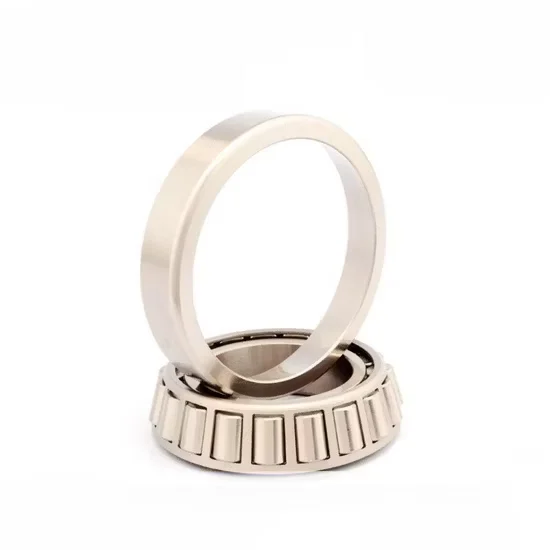

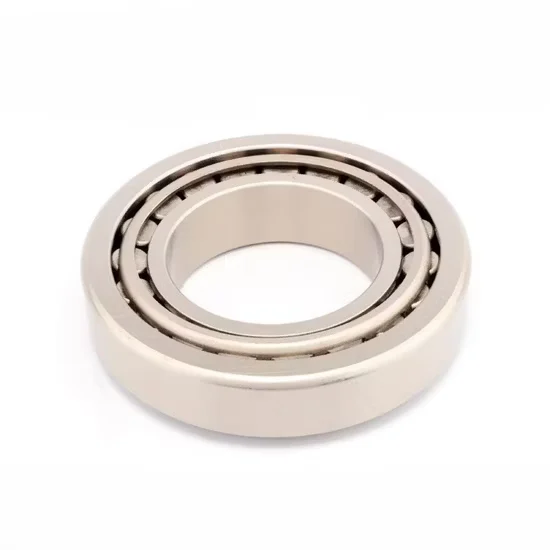

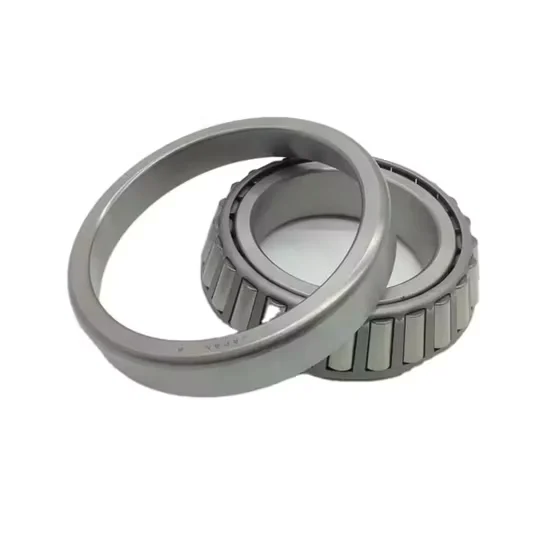

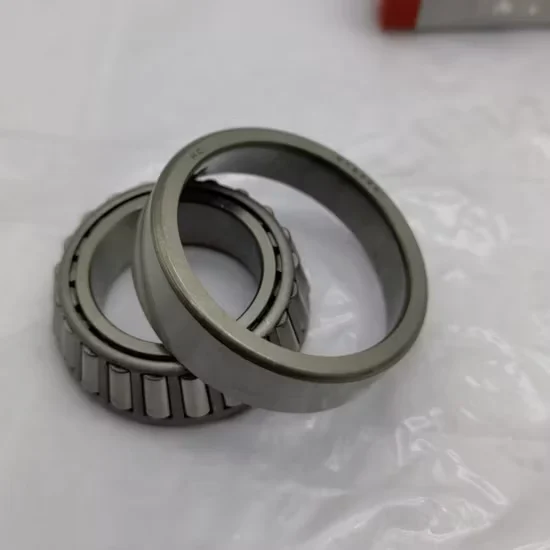

Single Row Tapered Roller Bearing Width and Performance Influence

Cross-Reference Alignment Verified — matching dimensional and load profiles across KOYO, NTN, and NSK catalogs ensures exact fitment for your gearboxes and axles.

Technical Specifications

Application Suitability

Why Ignoring Width Profiles Costs You Downtime When Choosing a Single Row Tapered Roller Bearing Supplier

A mismatched width series transforms manageable radial loads into catastrophic contact stress.

Working around desert oilfields, I witnessed a rig in Riyadh suffer a total lockup because the maintenance crew swapped a wide-series tapered roller bearing for a narrow one to save on lead time. Under extreme heat and heavy axial thrust, the contact stress spiked dramatically. The rollers skidded, shattering the cage and seizing the entire drawworks assembly. Sourcing the correct geometry is critical, and finding a reliable single row tapered roller bearing supplier prevents these avoidable failures. Procurement teams often overlook the width dimension, focusing solely on bore and outside diameter, which leads to devastating consequences in high-thrust environments [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching Load Vectors to Tapered Geometry

The tapered raceway design inherently resolves combined radial and axial forces into a single, unified load path. When procuring from a global single row tapered roller bearing supplier, you gain access to mixed-brand packages that maintain strict geometric equivalence across different manufacturers. This ensures the resultant load vector aligns perfectly with the roller axis, preventing edge loading on the raceways during heavy equipment articulation. In industrial gearboxes, these bearings are frequently mounted in opposing pairs to handle bi-directional thrust, making precise width matching absolutely essential for setting the correct internal clearance and preload during assembly.

Desert Heat and Heavy Axial Thrust

Open-type configurations demand rigorous external lubrication protocols, especially when ambient temperatures accelerate grease degradation and reduce film thickness. In arid environments, fine particulate ingress threatens the rolling elements, making the choice of external sealing housings just as critical as the bearing itself. Proper oil bath or circulating oil systems must be calibrated to flush out contaminants while maintaining a stable hydrodynamic film. Furthermore, extreme thermal gradients necessitate careful consideration of internal clearance, as the differential expansion between the shaft and housing can inadvertently preload the bearing, generating excessive friction and heat [NEED_CITE: lubrication film thickness requirements per ISO 281].

Decoding Open Sealing and Material Options

Selecting the right material depends heavily on the operational environment and maintenance capabilities. Standard chrome steel offers exceptional core toughness and high load-carrying capacity for general industrial gearboxes and truck axles. For marine drives or chemical processing equipment where moisture exposure is constant, stainless steel variants provide substantially higher corrosion resistance. The open sealing type allows maintenance teams to implement custom grease purging cycles, which is vital for clearing abrasive dust from heavy machinery. P0 precision ensures standard dimensional accuracy, facilitating straightforward press-fit installations without requiring ultra-precise machining tolerances on the shaft or housing, thereby reducing overall manufacturing costs while maintaining reliable performance.

The Cascading Effect of Incorrect Width Selection

Substituting a narrow width series in a high-thrust application drastically reduces the effective contact area between the rollers and the cup. This geometric compromise leads to localized spalling and premature fatigue, well before the calculated L10 life is reached. According to the failure analysis frameworks outlined in ISO 15243, such surface-origin fatigue often triggers secondary cage fractures and roller skewing. The resulting unplanned downtime, emergency air-freight costs for replacement parts, and catastrophic damage to adjacent gearbox components far outweigh the initial procurement savings. Ignoring the width profile effectively voids any reliability guarantees and forces maintenance crews into a reactive, rather than predictive, operational posture [NEED_CITE: surface fatigue and spalling mechanisms per ISO 15243].

Securing Traceability in Mixed-Brand Consolidations

We verify cross-reference equivalence across KOYO, NTN, and NSK to ensure the width series and contact angles match your exact OEM requirements. Our consolidation services allow you to mix automotive hub units and industrial gearbox bearings in a single shipment without sacrificing traceability. Every chrome steel component is backed by complete material certification, preventing the integration of substandard aftermarket counterfeits that plague the MRO market. We provide technical selection support to validate load capacities against your specific operational parameters, ensuring the selected width series can handle the actual thrust loads. Furthermore, our inspection services confirm dimensional tolerances before global dispatch, ensuring urgent maintenance spares arrive ready for immediate installation.

Documentation & Authenticity

• Material test reports confirming chrome steel alloy composition and heat treatment hardness.
• Dimensional inspection logs verifying P0 tolerance limits for bore and outside diameter.
• Original manufacturer batch traceability documents linked to the specific production run.
• Certificate of Conformity validating ISO-compliant quality assurance for bulk project shipments.

Storage, Handling & Mounting

• Retain original VCI packaging until installation to protect the open-type chrome steel raceways from humidity.
• Use induction heaters for inner ring mounting to preserve P0 precision and avoid shaft scoring.
• Apply clean lint-free gloves when handling to prevent sweat-induced corrosion on the exposed rolling elements.
• Flush the housing thoroughly before mounting to remove abrasive particulates that could compromise the open seal design.
• Verify shaft and housing shoulder dimensions to ensure proper axial location for the single row arrangement.

Preparing Your Equipment Data for Technical Review

To finalize the exact part number, please provide the OEM equipment model, available installation space, and specific radial and axial load profiles. Detailing the operating temperature and environmental exposure allows our engineering team to recommend the optimal material variant and clearance class. Supplying these parameters ensures a precise cross-reference match and a reliable L10 life calculation for your application, eliminating the guesswork from your maintenance planning.

Frequently Asked Questions

Q: How to determine the specific tapered roller bearing model based on equipment parameters?

A: Determining the exact model requires analyzing the combined radial and axial loads, operating speeds, and available envelope dimensions. By sharing your equipment's OEM specifications and operational environment, our engineering team calculates the required dynamic load rating and selects the appropriate width series to ensure optimal contact stress distribution and fatigue life.

Q: How does bearing width influence the performance and load capacity of tapered roller bearings?

A: The width series directly dictates the roller length and contact area within the raceway. A wider series provides a larger contact footprint, significantly enhancing the capacity to withstand heavy axial thrust and shock loads. Substituting a narrow series in high-load applications concentrates stress, accelerating surface fatigue and risking catastrophic cage failure.

Q: What are the common failure modes of tapered roller bearings in heavy-duty applications?

A: Heavy-duty environments frequently induce surface-origin fatigue, roller edge loading, and cage fractures due to inadequate lubrication or misalignment. Contaminant ingress in open-type configurations accelerates abrasive wear on the raceways. Adhering to ISO 15243 classification standards helps maintenance teams accurately diagnose these failure modes and implement corrective geometric or lubrication adjustments.

Q: How to select the right lubrication and maintenance cycle for open-type tapered roller bearings?

A: Open-type bearings rely entirely on the housing's external lubrication system. Selecting the correct grease viscosity or oil bath level depends on the operating speed and ambient temperature. Maintenance cycles should be shortened in high-contamination environments to flush out particulates, ensuring a consistent hydrodynamic film separates the rolling elements from the raceways.

Q: What are the cross-reference and interchangeability considerations among different global brands?

A: While basic boundary dimensions often align across premium global brands, internal geometry variations like roller profiles and contact angles can differ. True interchangeability requires verifying the width series, internal clearance, and cage design to ensure the replacement bearing handles the exact same load vectors and thermal expansion characteristics as the original OEM component.
