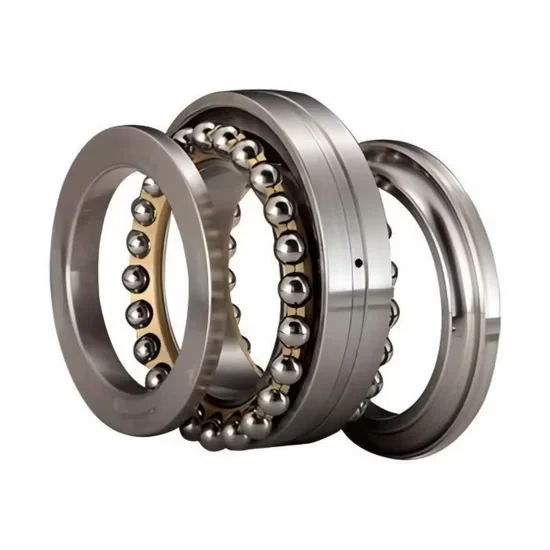

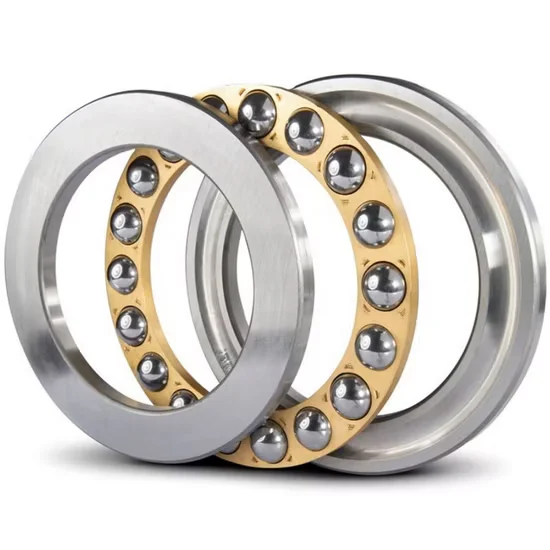

P4 Single Row Thrust Angular Contact Ball Bearings for Machine Tool Ball Screws

Scannable QR verification — Every P4 precision thrust bearing shipped includes authenticity tags linking directly to the manufacturer's official verification database.

Technical Specifications

Application Suitability

Why High-Speed Spindles Fail When Paired With the Wrong Machine Tool Ball Screw Thrust Angular Contact Ball Bearing Supplier

Thermal expansion and micro-vibrations destroy cage integrity long before the bearing steel itself fatigues.

Years ago, while repairing a high-speed CNC milling machine in Nigeria, I found the ball screw feed end completely seized from overheating. The teardown revealed a thrust bearing running at P6 precision; under high-speed cutting loads, grinding errors amplified until the cage fractured. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] When sourcing critical drive components, settling for lower precision grades guarantees premature mechanical failure.

Matching Precision Grades to High-Speed Cutting Dynamics

Selecting the correct configuration requires more than just matching dimensions; it demands a deep understanding of dynamic cutting forces. As an experienced machine tool ball screw thrust angular contact ball bearing supplier, we provide cross-brand equivalent consultations to ensure the selected precision class perfectly aligns with your spindle's maximum RPM and axial load profile.

Managing Axial Loads and Thermal Growth in Feed Systems

Ball screw support units endure relentless unidirectional axial thrust combined with rapid acceleration and deceleration cycles. At elevated rotational speeds, friction generates significant heat, causing thermal expansion that alters internal clearance and demands specialized lubrication strategies. [NEED_CITE: thermal displacement effects on machine tool feed drives] Open seal configurations allow for optimal oil-air or oil-jet lubrication, effectively flushing away microscopic wear particles while managing operating temperatures.

Decoding Material Options and Cage Configurations

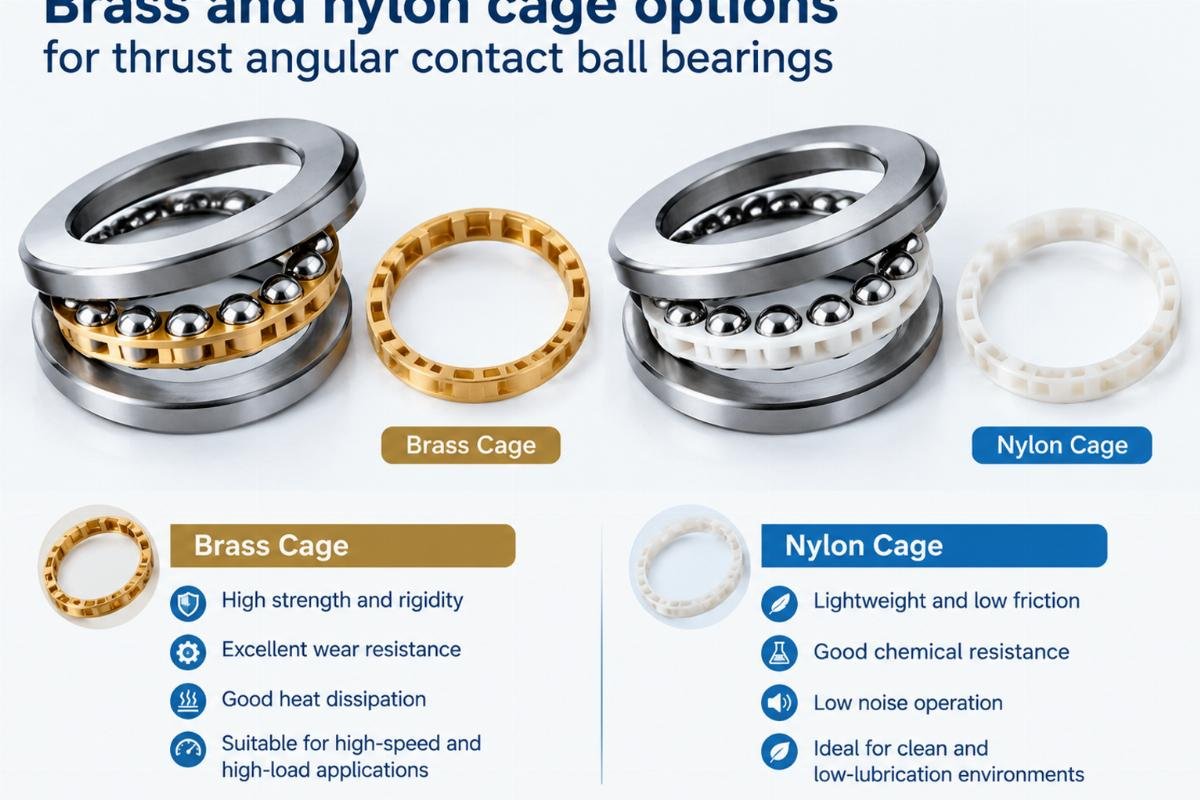

These thrust bearings are manufactured from Gcr15 (Suj2) bearing steel, offering the necessary core hardness and fatigue resistance for heavy axial loads. Depending on your specific speed and thermal requirements, they are available with brass, nylon, or steel cage options. Brass cages provide superior stability under heavy loads and high vibrations, while nylon variants reduce weight and operational noise. Furthermore, the availability of multiple precision ratings, up to P2, ensures strict dimensional and running accuracy for ultra-precision machining tasks.

The Hidden Downtime Costs of Compromised Tolerances

Installing a lower-precision thrust bearing in a high-speed feed system inevitably leads to microscopic chatter marks on the machined surface. This geometric deviation forces operators to scrap expensive workpieces and halts production for unplanned maintenance. According to failure analysis frameworks like ISO 15243, improper precision selection accelerates surface distress and spalling. [NEED_CITE: surface distress and spalling mechanisms in thrust bearings] Ultimately, the minor initial savings are entirely erased by catastrophic drive train damage and voided equipment warranties.

Securing Traceability and Technical Accuracy for Your Spindle

Sourcing genuine P4 or P2 components requires strict verification, which is why we provide complete traceability documentation for every shipment. As a reliable machine tool ball screw thrust angular contact ball bearing supplier, our massive spot inventory covers thousands of standard part numbers, eliminating typical multi-week lead times. We offer flexible consolidation shipments, allowing you to mix domestic and premium international brands. Our technical team provides rigorous cross-reference validation to prevent mismatching cage materials during retrofitting. Furthermore, our long-term after-sales support includes detailed failure analysis to optimize your future procurement strategy.

Documentation & Authenticity

• Certificate of Conformity confirming P4 or P2 running accuracy tolerances before dispatch.
• Original factory batch traceability records linking each bearing to its specific heat treatment lot.
• Official scannable QR codes for instant verification of KOYO, NTN, or NSK authenticity.
• Material inspection reports validating Gcr15 (Suj2) steel composition and hardness standards.
• Dimensional inspection certificates verifying strict axial runout limits for ball screw applications.

Storage, Handling & Mounting

• Keep open-type P4 bearings in original vacuum packaging to prevent microscopic dust contamination before mounting.
• Store Gcr15 steel components in climate-controlled environments to prevent condensation and surface corrosion.
• Use clean, lint-free gloves when handling brass cage variants to avoid skin acid etching.
• Apply specified spindle oil immediately after unsealing, as these open bearings lack factory pre-lubrication.
• Verify axial preload matching marks on double row sets before breaking the factory pairing seals.

Engineering Review and Selection Guidance

To ensure optimal feed drive performance, please provide your specific machine tool model, ball screw diameter, and maximum axial cutting loads. Sharing your operational environment details, such as coolant exposure or ambient temperature fluctuations, allows our engineering team to recommend the most suitable cage material and precision class. We will then perform a comprehensive cross-reference check and calculate the expected L10 life for your specific application parameters.

Frequently Asked Questions

Q: How do I determine the correct precision class for high-speed ball screw applications?

A: High-speed CNC feed systems typically require P4 or P2 precision to minimize axial runout and thermal displacement. Lower grades like P6 introduce micro-vibrations that amplify under high RPM, leading to cage failure. We recommend sharing your spindle's maximum speed and required positioning accuracy so our technical team can specify the exact tolerance class needed for your machine tool ball screw thrust angular contact ball bearing supplier requirements.

Q: What are the common failure modes of thrust angular contact ball bearings in machine tools?

A: The most frequent failure modes include cage fracture due to high-speed centrifugal forces and surface spalling caused by inadequate lubrication. In ball screw applications, improper preload or misalignment accelerates wear on the raceways. Identifying these modes early through vibration analysis helps prevent catastrophic feed drive seizures and ensures continuous machining accuracy.

Q: Brass vs. Nylon cages: Which is better for high-speed thrust applications?

A: Brass cages offer exceptional structural stability and heat dissipation, making them ideal for heavy axial loads and continuous high-speed operation. Nylon cages are lighter, reducing centrifugal stress and operational noise, but they have lower thermal limits. The choice depends on your specific cutting forces and cooling capacity; our engineers can evaluate your load profiles to recommend the optimal cage material.

Q: How can I identify genuine KOYO, NTN, or NSK bearings and avoid counterfeits?

A: Authentic premium bearings feature precise laser-etched nomenclature, flawless raceway finishes, and specific packaging security seals. We supply only verified genuine products, accompanied by official QR codes and batch traceability documents. Buyers should always cross-reference the physical markings with the manufacturer's official database and request the original certificate of conformity to guarantee authenticity and performance reliability.

Q: What is the recommended maintenance and lubrication cycle for ball screw support bearings?

A: Open-type thrust bearings in ball screw supports require continuous oil-air or oil-jet lubrication to manage heat and flush away wear particles. The exact cycle depends on the spindle's operating speed and ambient temperature. We advise monitoring the lubricant's viscosity and particle count regularly, adjusting the flow rate to maintain a stable thermal equilibrium and extend the bearing's operational lifespan.
