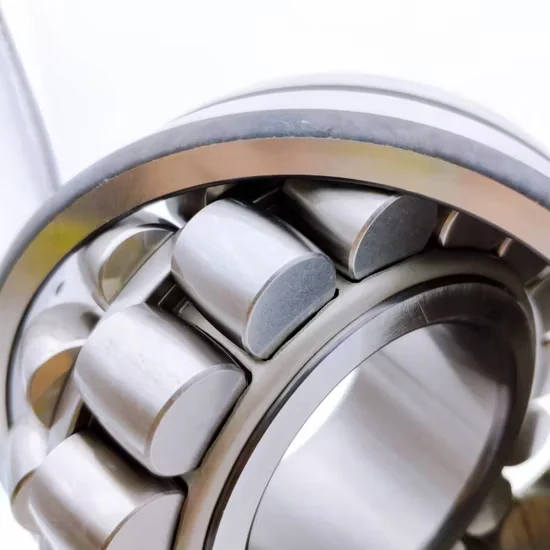

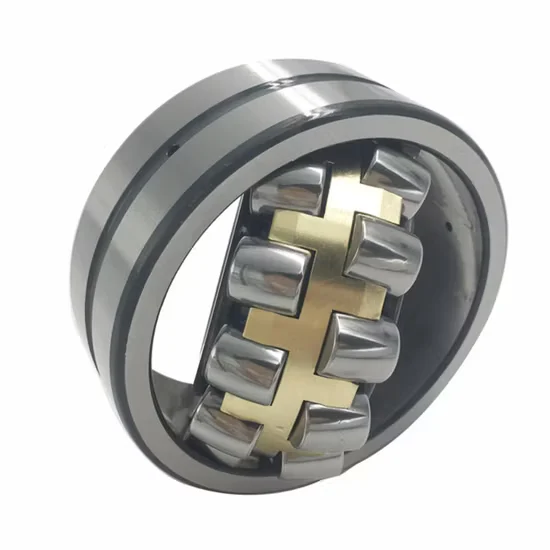

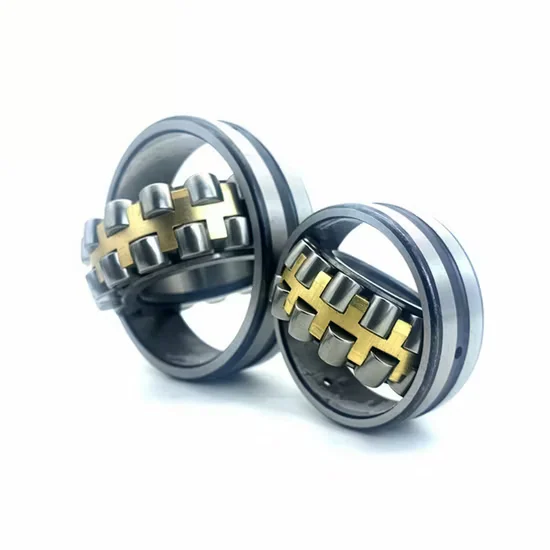

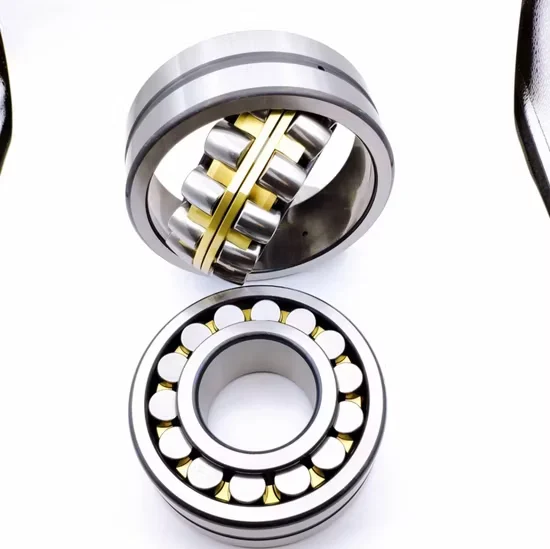

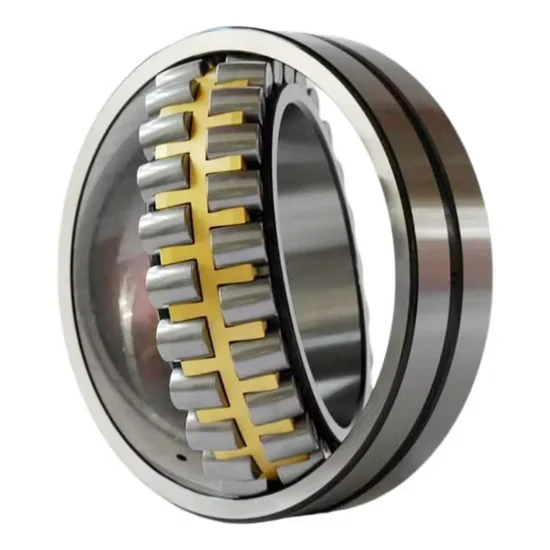

Nxz 23022e1/W33 Self-Aligning Roller Bearing for Reducer Industrial Grade

Unified Multi-Brand Sourcing — Consolidate Nxz, KOYO, and NSK orders into a single shipment without juggling multiple vendor accounts.

Technical Specifications

The e1 suffix remains unverified and requires manufacturer catalog confirmation prior to final order.

Application Suitability

Why Reducer Gearboxes Destroy Standard Bearings Before the Gears Fail

Misalignment and thermal expansion silently crush internal clearances long before torque overloads break the teeth.

In heavy-duty reducers, shaft deflection and housing distortion are inevitable under continuous torque. I have seen maintenance crews in Latin American mining sites use open flames to heat inner rings for press-fitting, completely annealing the raceway and killing the internal clearance. When you specify a Nxz 23022e1/W33 spherical roller bearing, you are fighting thermal growth and misalignment, not just radial loads. Ignoring these mounting realities leads to rapid raceway spalling. [NEED_CITE: bearing failure modes related to improper mounting and thermal degradation per ISO 15243]

Matching Self-Aligning Geometry to Reducer Shaft Deflection

Reducer output shafts experience constant bending moments that force standard rigid bearings out of alignment. The double-row self-aligning roller design automatically compensates for these angular errors, preventing edge-loading on the rollers. Sourcing this exact Nxz 23022e1/W33 spherical roller bearing configuration ensures your gearbox maintains smooth rotation even when the housing warps under continuous vibration.

Navigating Heat, Dust, and Heavy Radial Shock

Reducers in mining and metallurgy face severe radial shocks combined with elevated operating temperatures. High heat thins out standard greases, while metallic dust infiltrates poorly sealed housings. The W33 lubrication groove allows for continuous oil or grease replenishment directly into the load zone, flushing out contaminants and maintaining a stable hydrodynamic film. Without this direct relubrication path, the rollers would skid and smudge the raceway within weeks, leading to catastrophic friction spikes. Proper lubrication management is the only defense against abrasive ingress. [NEED_CITE: lubrication starvation and contamination effects on bearing service life]

Decoding the W33 Groove and GCr15 Metallurgy

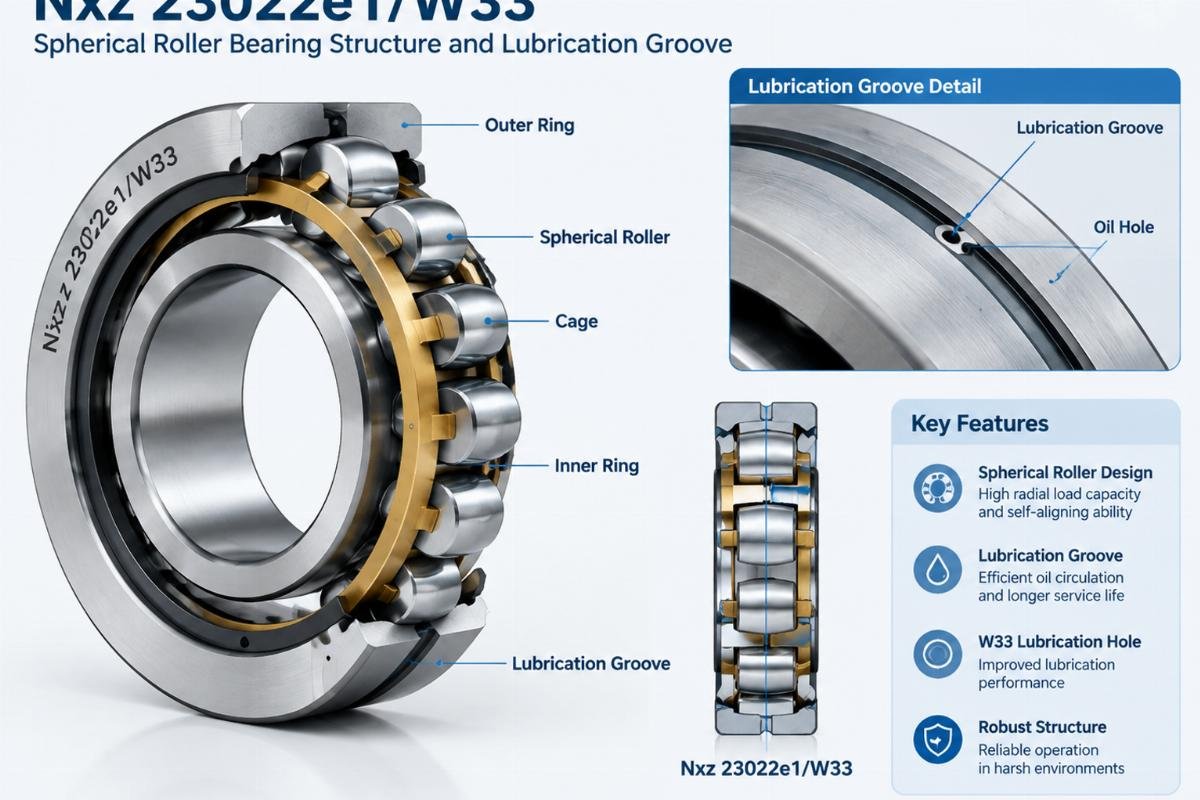

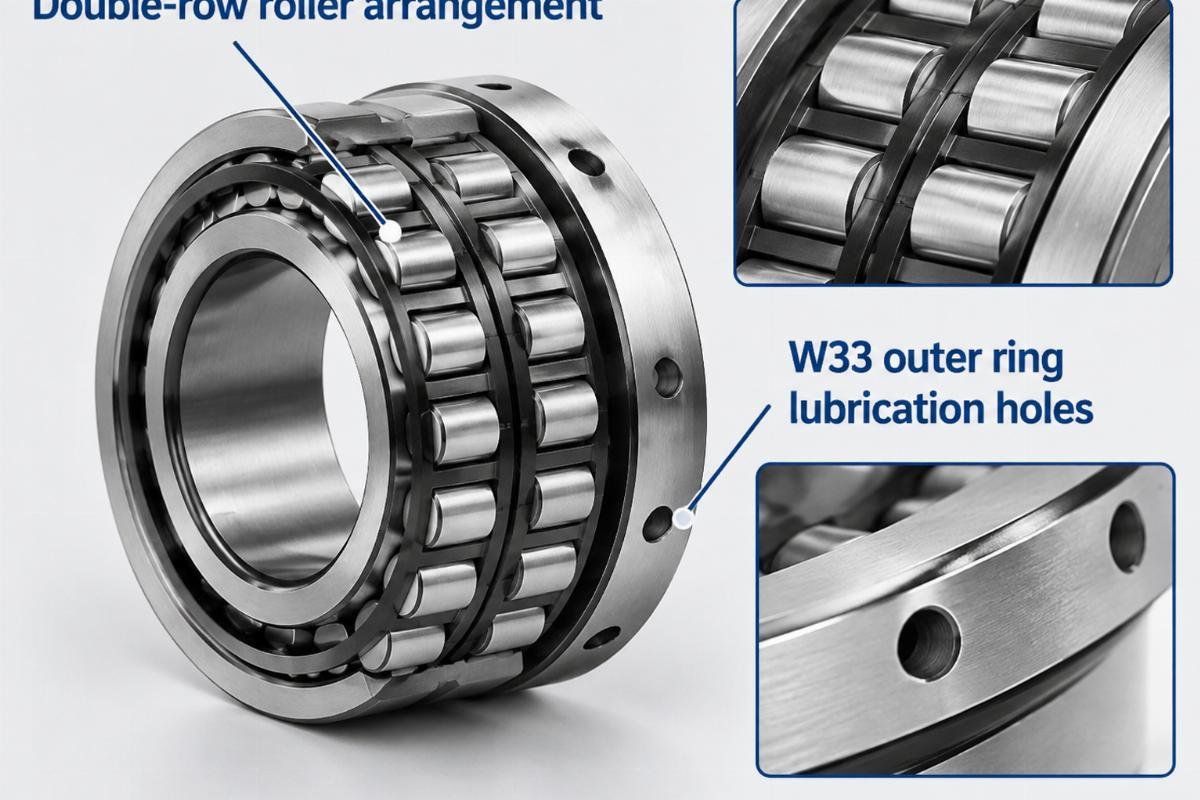

The W33 suffix is critical for heavy machinery; it denotes an annular lubrication groove with three holes on the outer ring, enabling efficient relubrication without disassembling the housing. The bearing is forged from Chrome Steel GCr15, providing the necessary core hardness and wear resistance to withstand repetitive shock loads. Furthermore, the double-row arrangement distributes massive radial forces evenly across both roller sets. This self-aligning geometry significantly extends the fatigue life under fluctuating torque conditions, preventing edge-loading that typically destroys rigid bearing types.

The Downtime Penalty of Ignoring Suffix Details

Specifying a standard open bearing instead of a W33 variant in a dusty crusher environment guarantees premature seizure. When relubrication is blocked, the resulting friction spikes cause catastrophic cage failure and unplanned line stoppages. According to ISO 281 life calculation frameworks, inadequate lubrication drastically reduces the dynamic load rating, turning a multi-year component into a monthly consumable. [NEED_CITE: ISO 281 life modification factors for lubrication and contamination]

Securing Traceability for Heavy-Duty Spherical Rollers

Counterfeit bearings often use inferior steel that spalls under reducer shock loads, causing massive secondary damage to gears. We provide complete batch traceability for every Nxz 23022e1/W33 spherical roller bearing, ensuring the GCr15 material matches the original mill certificates. Our engineering team cross-checks the W33 groove dimensions and verifies the exact designation against OEM specs before dispatch. You get genuine components with full metallurgical documentation, eliminating the risk of installing fake parts in critical gearboxes and ensuring long-term reliability.

Documentation & Authenticity

• Original mill test reports confirming GCr15 chemical composition and hardenability
• Batch traceability codes linking the outer ring to the specific heat treatment furnace
• Dimensional inspection records verifying W33 groove depth and oil hole alignment
• Certificate of Conformity matching the exact 23022e1/W33 designation and brand origin

Storage, Handling & Mounting

• Store the W33 bearing in its original VCI packaging to prevent corrosion inside the lubrication groove
• Use induction heaters with automatic demagnetization for the inner ring; never use open flames which anneal the GCr15 steel
• Align the outer ring oil holes with the housing feed channels before tightening the split plummer block
• Check the residual internal clearance after mounting to ensure the double-row rollers are not preloaded by shaft expansion

Engineering Review for Reducer Applications

To confirm the optimal clearance class for the Nxz 23022e1/W33 spherical roller bearing and verify suffix compatibility, please share your reducer's operating temperature, radial load profile, and shaft deflection limits. Providing the OEM equipment nameplate data allows our technical team to perform a precise cross-reference and L10 life calculation. This ensures the selected configuration perfectly matches your specific heavy-duty transmission requirements.

Frequently Asked Questions

Q: What does the W33 suffix mean for this spherical roller bearing?

A: The W33 suffix indicates an annular lubrication groove with three oil holes on the outer ring. This feature allows direct relubrication into the bearing load zone, which is essential for flushing out contaminants and maintaining a stable oil film in harsh mining and reducer environments.

Q: How to verify the authenticity of Nxz or alternative premium brand bearings?

A: Authenticity is verified through original mill test reports, batch traceability codes, and dimensional inspection records. We cross-check the GCr15 material certificates and W33 groove specifications against the manufacturer's official data to ensure every unit meets strict OEM quality standards.

Q: What are the cross-reference equivalents for this model in SKF, FAG, or NSK?

A: While direct equivalents depend on the exact internal geometry and clearance class, this model generally cross-references to standard 23022 series spherical roller bearings with W33 lubrication features from major global brands. We provide precise cross-reference mapping based on your specific OEM equipment requirements.

Q: How to select the right clearance class for reducer applications?

A: Reducer applications typically generate significant heat, requiring C3 or C4 internal clearance to compensate for thermal expansion. You must evaluate the operating temperature gradient and shaft interference fit to prevent the internal clearance from closing completely during operation, which would cause severe roller skidding.

Q: What is the recommended relubrication interval for W33 bearings in mining environments?

A: The relubrication interval depends on the specific dust exposure, operating speed, and temperature of the mining equipment. Continuous or highly frequent relubrication through the W33 groove is often necessary to purge abrasive particles and prevent premature wear in heavily contaminated vibrating screens and crushers.
