Why Precision Flange Alignment Dictates Lm10 linear motion ball bearing Longevity

Misaligned oval flanges induce localized binding that destroys the recirculating ball paths long before the steel fatigues.

When mounting linear guides on automated packaging lines, even minor dimensional deviations in the flange footprint cause uneven load distribution across the recirculating ball circuits. I learned this the hard way early in my career when a batch of Lm12 units seized up in transit due to poor moisture control, but dimensional binding on the assembly floor is an entirely different failure mode that halts production instantly. Ensuring exact oval flange tolerances prevents this premature track wear, protects the integrity of the entire linear motion system, and eliminates the micro-vibrations that ruin surface finishes in precision machining operations [NEED_CITE: linear bearing failure mode classification per ISO 15243].

Matching the Lm10 linear motion ball bearing to Automation Workloads

Selecting the right guide for CNC machining parts requires balancing structural rigidity with exceptionally smooth travel characteristics. The Lm10 linear motion ball bearing provides the necessary structural support for high-speed automation equipment while maintaining tight positional accuracy during rapid traverse movements. Our engineering team cross-references your specific load profiles to ensure the flange geometry perfectly matches your mounting plate constraints, eliminating the risk of resonance and ensuring the linear guide performs flawlessly under continuous operational demands.

Environmental Stressors and Performance Demands

Linear guides deployed in 3D printers and packaging machinery face constant exposure to particulate debris, coolant splash, and fluctuating thermal conditions. High-speed reciprocating movements generate significant friction heat, demanding cage materials that resist deformation and maintain internal clearance under thermal stress. Furthermore, environments with high humidity or aggressive cleaning chemicals require specific material variants to prevent raceway pitting and subsequent spalling [NEED_CITE: corrosion effects on linear motion systems]. Proper seal selection and cage material pairing are critical to maintaining smooth travel under these combined mechanical and environmental loads, ensuring consistent repeatability across thousands of operational cycles without manual intervention or unscheduled maintenance stops.

Decoding the Core Specifications

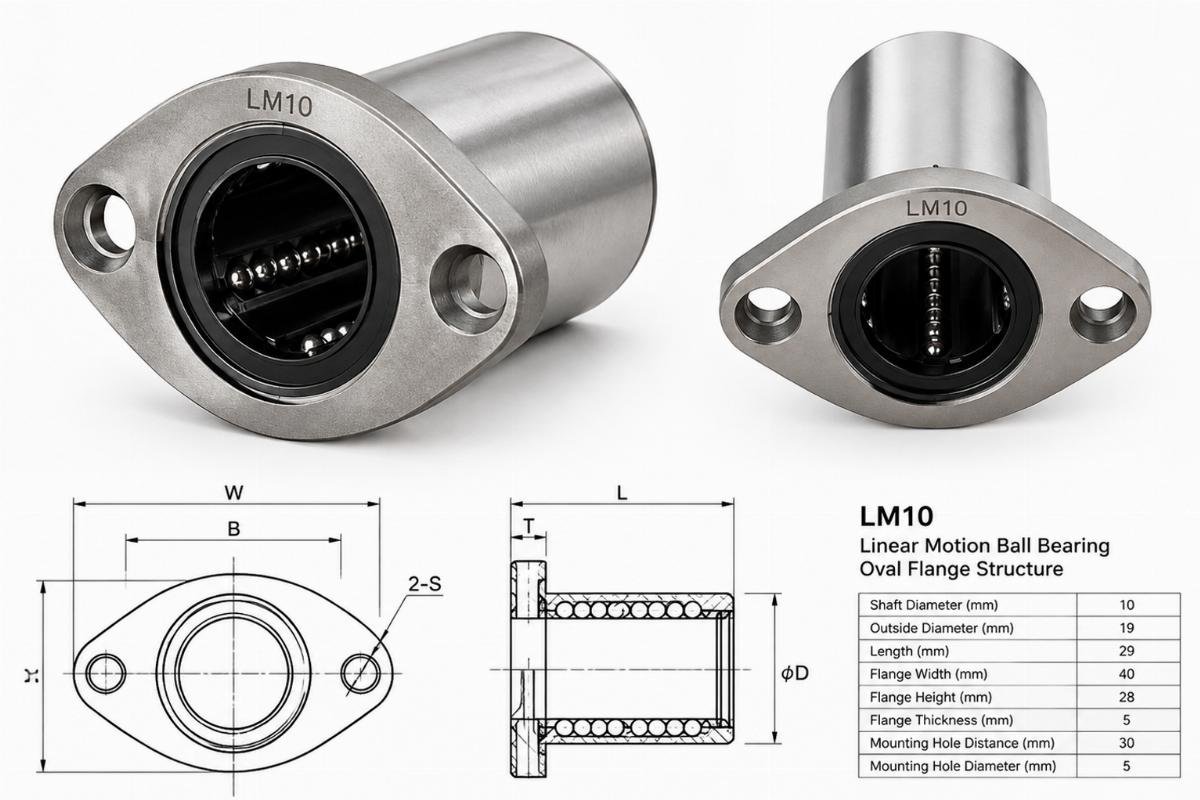

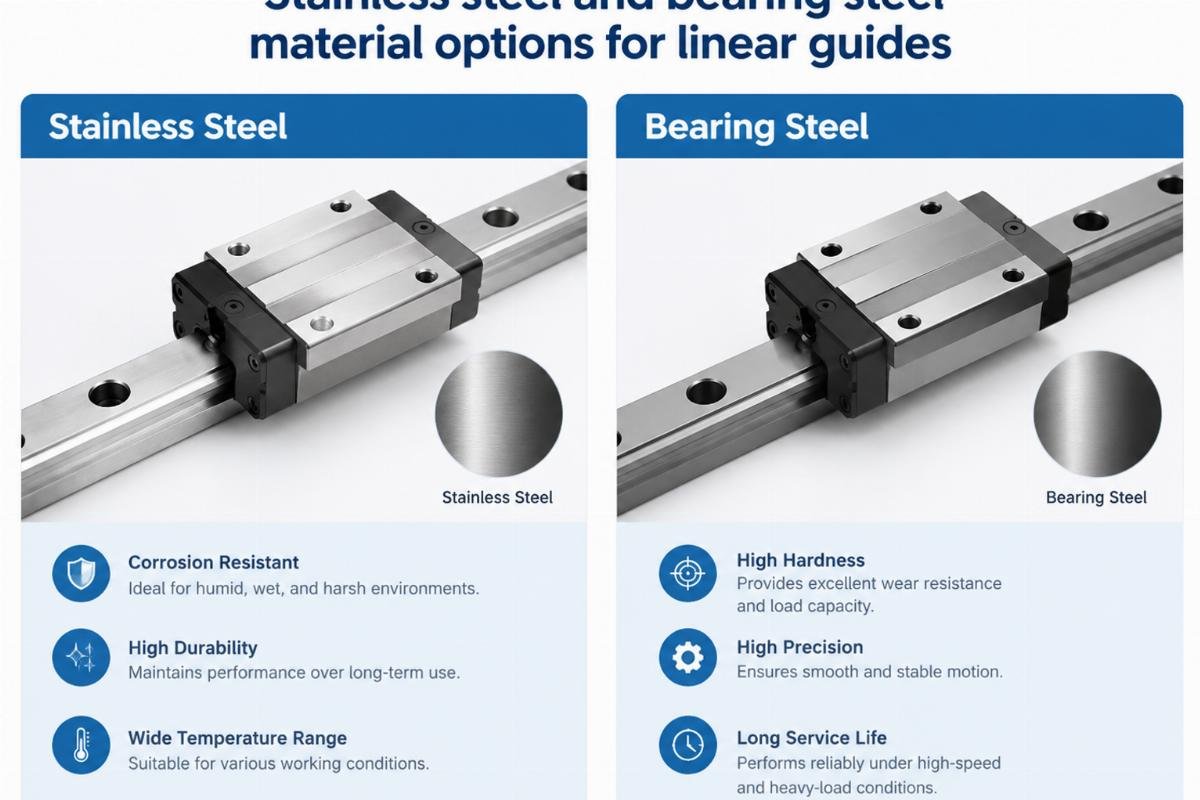

The oval flange shape provides a highly compact mounting footprint, making it ideal for restricted spaces in complex automation equipment where standard circular flanges simply cannot fit. Material options include bearing steel for standard high-load applications or stainless steel variants for environments requiring enhanced corrosion resistance and frequent washdown capabilities. The specified HRC 60-64 hardness ensures the raceways resist brinelling and permanent deformation under heavy static loads. Cage options span steel, copper, and nylon, allowing buyers to optimize for high-speed operation, thermal conductivity, or low-noise requirements depending on the specific CNC machining parameters and desired maintenance intervals. This flexibility ensures the linear guide integrates perfectly into diverse mechanical architectures.

The Hidden Costs of Incorrect Linear Guide Selection

Specifying an open bearing in a dusty packaging environment inevitably leads to particle ingestion, accelerated abrasive wear, and catastrophic ball retainer failure. Such unplanned downtime disrupts entire production schedules, incurs massive overtime labor costs, and voids equipment warranties due to secondary scoring damage on the precision guide rails. Following ISO 15243 guidelines for failure analysis consistently reveals that surface distress from solid contamination is a leading cause of premature replacement in linear systems [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Selecting the appropriate seal type and material grade mitigates these hidden operational expenses and preserves the micron-level accuracy of the linear guide.

Why Source Your Linear Motion Components Through Us

We meticulously verify the exact oval flange dimensions and inner bore tolerances of every Lm10 unit against standard linear bearing specifications before dispatch. Our massive spot inventory covers the full Lm, Luu, and Lme series, allowing mixed-size consolidation for your bulk project orders without delaying shipment. We provide comprehensive cross-brand equivalent model consultation, ensuring seamless interchangeability with Lm12 or Lm16 variants if your mechanical design requires scaling up the load capacity. Every shipment includes complete traceability documentation, guaranteeing genuine materials with verified hardness. Our flexible minimum order quantity accommodates everything from single-unit emergency MRO replacements to full container loads, backed by long-term technical support for application guidance and failure analysis. We personally oversee the rust-prevention packaging to ensure the bearings arrive in pristine condition.

Documentation & Authenticity

• Material certificates confirming stainless steel or bearing steel grades for the Lm10 raceways.
• Third-party hardness testing reports validating the HRC 60-64 specification.
• Dimensional inspection records verifying the oval flange footprint and inner bore tolerances.
• Original manufacturer batch traceability documents for every linear motion component.
• Certificate of Conformity matching the specific Lm, Luu, and Lme series part numbers.

Storage, Handling & Mounting

• Keep the Lm10 units in original vapor-corrosion inhibitor packaging until immediate mounting to prevent raceway oxidation.
• Use clean, lint-free gloves when handling the stainless steel variants to avoid carbon steel cross-contamination.
• Verify the oval flange alignment pins before tightening mounting bolts to prevent binding in the ball circuits.
• Apply the recommended lithium-based grease to open-type variants immediately after removing the protective transit caps.
• Store nylon-caged units away from direct UV exposure to prevent polymer degradation before installation.

Engineering Review and Inquiry Guidelines

To ensure optimal selection and prevent premature wear, please provide the detailed radial and axial load profiles, maximum operating speeds, and ambient temperature ranges for your specific application. Share the exact OEM equipment model numbers so our technical team can perform accurate cross-reference checks against the Lm, Luu, and Lme series databases. Detailing the environmental exposure, such as coolant splash, particulate levels, or vacuum requirements, allows us to recommend the precise seal configuration and material variant for your linear guides, ensuring maximum operational lifespan and reliability.

Frequently Asked Questions

Q: What are the primary differences between the Lm, Luu, and Lme series?

A: The Lm series represents standard metric open or sealed linear bearings, while Luu typically designates specific seal configurations for enhanced dust protection. The Lme series often refers to extended length variants for higher moment load capacity. Always verify exact dimensional drawings to ensure interchangeability in your automation equipment.

Q: How do I choose between steel, copper, and nylon cages?

A: Steel cages offer maximum rigidity and high-temperature tolerance for heavy-load CNC machining. Copper cages provide excellent thermal conductivity for high-speed applications. Nylon cages are ideal for noise-sensitive environments like 3D printers, offering lightweight operation and self-lubricating properties, though they have lower thermal limits compared to metallic alternatives.

Q: Can I interchange an Lm10 with an Lm12 or Lm16 in my fixture?

A: Direct interchangeability depends on the mounting hole spacing on the oval flange and the required shaft diameter. While the Lm12 and Lm16 share similar design principles, their physical dimensions and load ratings differ significantly. Provide your existing shaft diameter so we can confirm the correct cross-reference for your application.

Q: What lubrication protocol is recommended for these linear motion bearings?

A: Open variants require regular external lubrication with high-quality lithium-complex grease applied directly to the shaft. Sealed variants are pre-lubricated for life under standard conditions but may require relubrication if operated continuously at high speeds. Always clean the shaft before applying fresh lubricant to prevent abrasive wear inside the ball circuits.
