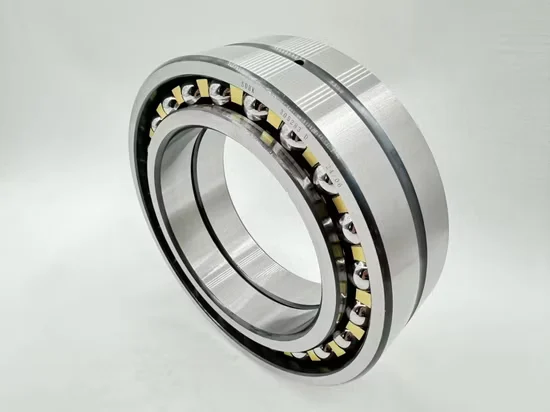

FAG Hcb7005-E-P4s Angular Contact Ball Bearing for CNC Spindle Motor

Original Batch Traceability — Every FAG Hcb7005-E-P4s angular contact ball bearing shipped from our facility includes verifiable manufacturer batch codes to guarantee spindle-grade authenticity.

Technical Specifications

Note: Specific suffix definitions for Hcb, E, and P4s require manufacturer catalog confirmation for exact material and tolerance verification.

Application Suitability

Why Spindle Bearings Fail When Suffix Details Are Overlooked

Precision loss in high-speed spindles often traces back to mismatched contact angles and unverified tolerance classes.

Sourcing replacement components for CNC equipment is fraught with risks. I once saw a standard angular contact bearing incorrectly installed as a high-precision spindle unit in a Mexican machine shop, leading to immediate thermal seizure during high-speed operation. When the contact angle and precision class do not perfectly align with the original equipment requirements, the resulting friction destroys the spindle assembly. The internal geometry must be exact. Securing a genuine FAG Hcb7005-E-P4s angular contact ball bearing prevents these catastrophic failures by ensuring exact dimensional matching and load distribution. Machine tool builders demand absolute consistency, and any deviation in the raceway geometry or ball grading will amplify vibration at elevated speeds. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching Rotational Demands in CNC Spindle Motors

High-speed machining centers demand exceptional rotational stability and minimal thermal expansion. The FAG Hcb7005-E-P4s angular contact ball bearing is engineered to handle the combined radial and axial loads typical in spindle motor assemblies. Our engineering team cross-references OEM equipment manuals to ensure the selected precision class perfectly matches the spindle's operational envelope, eliminating vibration at peak RPMs. By analyzing the specific cutting forces and duty cycles of your machinery, we can validate whether the internal clearance and cage design will sustain the required operational lifespan without premature fatigue.

Managing Thermal and Lubrication Challenges

Spindle environments generate significant heat, which directly impacts internal clearance and lubrication film thickness. An open seal design allows for flexible oil-air or oil-jet lubrication systems, ensuring optimal heat dissipation during continuous high-speed milling. The polyamide cage reduces friction and maintains ball spacing under extreme centrifugal forces. Proper lubrication selection is critical to prevent cage wear and maintain the 25° contact angle under heavy axial thrust. If the lubrication film breaks down, metal-to-metal contact will rapidly elevate temperatures and cause the bearing to seize. Monitoring the thermal profile of the spindle housing is essential to ensure the selected clearance class accommodates the operational heat expansion. [NEED_CITE: thermal expansion effects on bearing internal clearance per ISO 281]

Decoding the Engineering Behind the Designation

The "E" suffix designates a 25° contact angle, providing a balanced capacity for both radial and axial loads, which is essential for the multi-directional cutting forces in CNC spindles. The polyamide cage offers a favorable strength-to-weight ratio, minimizing centrifugal stress at high rotational speeds compared to heavier brass alternatives. The P4s precision class guarantees tight dimensional and running accuracy, ensuring the spindle maintains strict geometric tolerances during aggressive material removal. Open bearings are preferred in these setups to accommodate specialized high-speed spindle oils that sealed variants cannot utilize. The precise grinding of the raceways ensures that the balls track perfectly, reducing harmonic vibrations that could otherwise transfer to the cutting tool and degrade the machined surface finish.

The Hidden Toll of Incorrect Spindle Components

Installing an incorrectly specified bearing in a precision spindle leads to premature fatigue and catastrophic mechanical damage. A mismatched contact angle alters the load distribution, causing localized stress concentrations that rapidly degrade the raceways. Furthermore, inadequate precision classes introduce micro-vibrations that ruin surface finish quality and accelerate tool wear. These failures result in unplanned downtime and expensive spindle rebuilds, far exceeding the initial component savings. When a spindle seizes, the collateral damage to the motor and housing often requires a complete assembly replacement. Relying on verified components prevents these cascading mechanical failures and protects the overall productivity of the manufacturing cell. [NEED_CITE: economic impact of unplanned downtime in precision manufacturing]

Securing Authentic Precision Through Rigorous Verification

We specialize in tracing the exact lineage of high-precision spindle components to prevent counterfeit infiltration. For the FAG Hcb7005-E-P4s angular contact ball bearing, we carefully verify the cage material and precision suffixes against original manufacturer documentation before dispatch. Our technical team provides cross-brand equivalent model consultation if lead times require alternative sourcing, ensuring the replacement maintains the exact 25° contact angle and P4s running accuracy. We support mixed-brand consolidation shipments, allowing machine shops to replenish both spindle and general MRO bearings in a single container. Every shipment includes complete traceability documentation to satisfy strict ISO-compliant quality audits. Our deep familiarity with Latin American machine tool facilities means we understand the logistical and technical hurdles involved in keeping high-speed spindles running without interruption.

Documentation & Authenticity

• Certificate of Conformity confirming P4s dimensional tolerances for this specific batch.
• Original manufacturer batch traceability codes linked to the production facility.
• Material inspection reports verifying cage and raceway metallurgical composition.
• Running accuracy inspection reports validating the 25° contact angle alignment.
• Official authenticity verification documents supporting anti-counterfeit protocols.

Storage, Handling & Mounting

• Retain the original vapor-phase inhibitor packaging until immediate mounting to protect the open raceways from ambient humidity.
• Use lint-free cleanroom gloves when handling the polyamide cage to prevent particulate contamination.
• Store in a temperature-controlled environment away from direct UV exposure to preserve the nylon cage material integrity.
• Perform induction heating on the inner ring only, strictly avoiding direct flame contact with the precision-ground raceways.
• Verify the spindle shaft and housing tolerances match the P4s precision requirements before pressing to prevent geometric distortion.

Technical Review and Selection Guidance

To ensure optimal spindle performance, please provide your specific radial and axial load profiles, maximum operating RPM, and preferred lubrication method. Our engineering team will review these parameters to confirm the suitability of the 25° contact angle and internal clearance class. If you are replacing an existing unit, sharing the OEM equipment model number allows us to perform a precise cross-reference check and verify the exact suffix requirements.

Frequently Asked Questions

Q: How does the 25° contact angle affect CNC spindle performance?

A: The 25° contact angle provides an optimal balance between radial load capacity and axial rigidity. In CNC spindle motors, this configuration resists the multi-directional cutting forces encountered during milling operations, maintaining rotational accuracy and preventing axial deflection that could compromise surface finish quality.

Q: Why choose an open seal design over sealed variants for this application?

A: Open bearings allow for customized oil-air or oil-jet lubrication systems required in high-speed spindles. Sealed variants contain grease that cannot dissipate heat effectively at extreme RPMs. The open design ensures continuous cooling and lubrication replenishment, which is critical for maintaining the polyamide cage and raceway integrity.

Q: How can I verify the authenticity of the P4s precision class?

A: We provide original manufacturer batch traceability documentation and running accuracy inspection reports with every shipment. These documents confirm that the specific bearing meets the strict dimensional and geometric tolerances required for the P4s classification, ensuring it performs reliably in demanding spindle applications.

Q: What lubrication is recommended for the polyamide cage at high speeds?

A: High-speed spindle applications typically require specialized oil-air or minimal quantity lubrication systems. The polyamide cage material is highly compatible with synthetic spindle oils, which provide excellent film strength and cooling properties without degrading the cage structure under extreme centrifugal forces.
