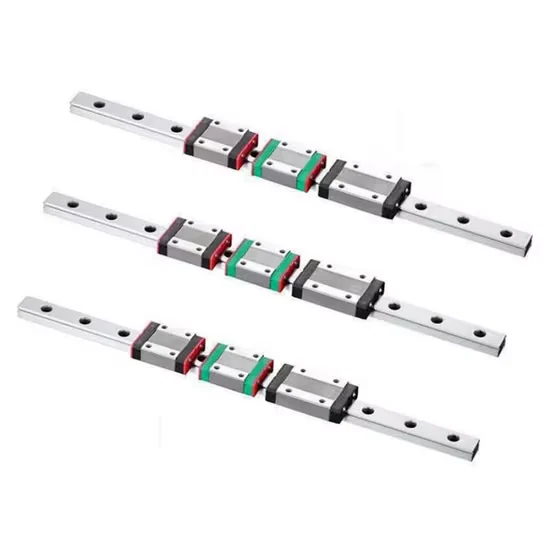

Egw15SA Flanged Linear Guide Rail with Carriage for CNC Steel Motion

Cross-reference dimensional alignment — Verifying slider footprint, mounting hole pitch, and rail cross-section against OEM drawings prevents costly CNC retrofit failures.

Technical Specifications

Application Suitability

Why Ignoring Suffix Details Destroys CNC Precision on the Egw15SA linear guide rail

Contamination ingress through mismatched scraper seals turns microscopic metal swarf into catastrophic slider jams.

I learned this the hard way on a shop floor in Suzhou when a misconfigured flange carriage ingested fine steel chips, completely ruining the machining tolerance of a multi-axis mill. Procurement teams often focus solely on dynamic load ratings, overlooking that [NEED_CITE: linear motion system failures frequently originate from inadequate environmental sealing rather than structural fatigue]. Selecting the correct Egw15SA linear guide rail requires rigorous attention to wiper design, preload classes, and rail hardness to survive harsh cutting environments without compromising geometric accuracy.

Matching the Egw15SA linear guide rail to Demanding Machine Tool Environments

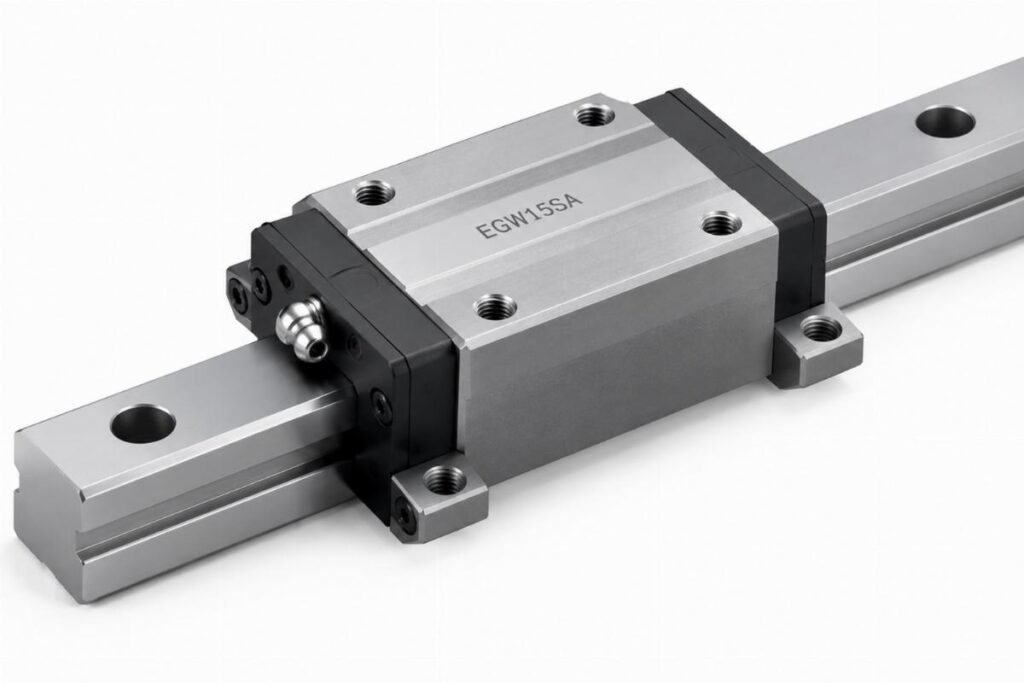

When outfitting heavy-duty CNC equipment, the galvanized surface treatment and Gcr15 bearing steel construction provide the necessary defense against coolant splash and structural deflection. Our engineering team frequently assists global buyers in cross-referencing mixed-brand packages, ensuring the Egw15SA linear guide rail integrates flawlessly with existing footprint standards without requiring machine bed re-drilling. This technical alignment prevents costly installation delays.

Navigating Swarf, Coolant, and Dynamic Loads in Machining Centers

Machine tool axes endure combined radial and axial loads during aggressive milling, demanding high rigidity from the solid profile rail. Continuous exposure to water-soluble coolants necessitates robust corrosion resistance, while fine abrasive dust threatens to penetrate inadequate carriage seals. Proper lubrication intervals are critical, as [NEED_CITE: inadequate lubrication accounts for a significant share of premature linear guide failures in automated manufacturing]. Without effective scrapers, metallic debris quickly scores the recirculation channels, leading to uneven motion, increased vibration, and ultimately scrapped precision parts.

Decoding Material and Structural Specifications for Linear Motion

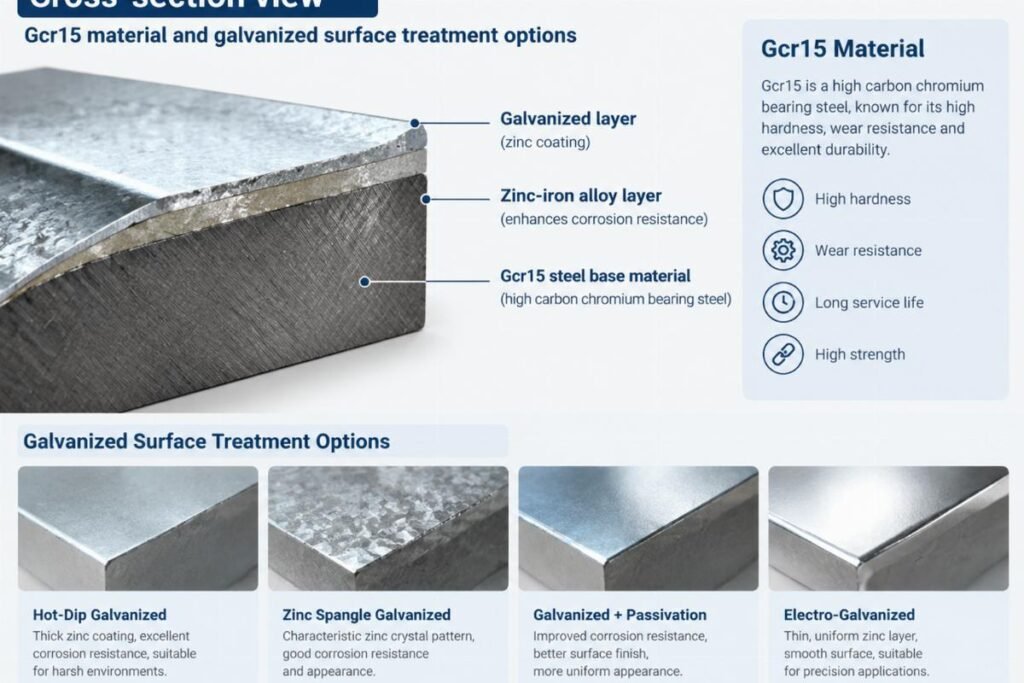

The use of Gcr15 bearing steel ensures high hardness and wear resistance essential for maintaining geometric accuracy over millions of cycles. A galvanized finish is applied to enhance corrosion protection, though stainless steel variants are also available for highly corrosive food processing or marine applications. The solid profile design maximizes the cross-sectional area, reducing elastic deformation under heavy vertical loads. Furthermore, the customizable support rail length allows for seamless integration into bespoke gantry strokes. Note: The specific suffix configuration requires manufacturer catalog confirmation to verify exact seal and preload codes.

The Hidden Financial Impact of Incorrect Carriage Selection

Specifying a carriage without adequate dust protection in a dry machining environment leads to rapid recirculation blockage and catastrophic damage to the rail raceway. Such unplanned downtime not only halts production but also voids warranty claims when failure analysis reveals contamination ingress. According to [NEED_CITE: linear motion failure mode classification per ISO 15243 principles], abrasive wear from foreign particles drastically accelerates surface fatigue. Replacing a single jammed slider often necessitates realigning the entire axis, multiplying the initial cost savings into severe financial losses and extended lead times.

Securing Traceable and Technically Verified Linear Components

We maintain massive spot inventory covering thousands of standard part numbers, allowing us to dispatch emergency replacement carriages via global shipping consolidation. Our technical selection support helps buyers navigate cross-brand equivalent models, preventing the common mistake of mismatching flange mounting holes on the Egw15SA linear guide rail. Every shipment includes complete traceability documentation, ensuring the Gcr15 material meets ISO-compliant quality assurance standards. We offer flexible MOQ arrangements, from single-unit urgent spares to full container consolidation for large automation projects. Furthermore, our long-term after-sales team provides failure analysis guidance if unexpected vibration issues arise during commissioning.

Documentation & Authenticity

• Material test certificates verifying Gcr15 bearing steel composition and hardness for the Egw15SA carriage.
• Dimensional inspection reports confirming flange mounting hole pitch and rail cross-section tolerances.
• Certificate of Conformity aligned with ISO 9001:2000 standards for linear motion transmission equipment.
• Surface treatment validation confirming galvanized coating thickness for corrosion resistance.
• RoHS and CE compliance declarations required for exporting automated CNC machinery to Europe.

Storage, Handling & Mounting

• Store the galvanized rails in original packaging with humidity control to prevent white rust before CNC installation.
• Use clean lint-free gloves when handling the Gcr15 carriage to avoid acidic sweat causing localized corrosion.
• Keep matched carriage and rail sets sealed until mounting to preserve factory alignment and prevent swarf ingress.
• Apply recommended lithium-based grease to the Egw15SA carriage nipples immediately after removing protective transit caps.
• Avoid using carbon steel tools on the stainless steel variant options to prevent cross-contamination and surface rusting.

Preparing Your Technical Data for Accurate Quotation

To ensure precise cross-referencing, please provide the OEM equipment model number, radial and axial load profiles, and maximum traverse speeds. Sharing the exact mounting space constraints and environmental exposure details allows our engineering team to verify the optimal seal and preload configuration. This technical review guarantees the selected components will deliver the required L10 life for your specific automation application.

Frequently Asked Questions

Q: How does the Egw15SA cross-reference with HGH or Hgw series in terms of installation dimensions?

A: While these series share similar flange carriage concepts, mounting hole pitches and rail cross-sections often differ slightly. Always verify the exact dimensional drawings against your machine bed before ordering. Our engineering team provides comprehensive cross-reference consultation to ensure footprint compatibility without requiring costly re-machining of the CNC equipment base.

Q: When should I choose stainless steel variants over the standard Gcr15 bearing steel construction?

A: Standard Gcr15 with galvanized treatment suits most general CNC and automation environments. However, if your machinery operates in highly corrosive conditions, such as food processing with aggressive washdowns or marine applications, stainless steel options provide substantially higher corrosion resistance. We help evaluate the specific chemical exposure to recommend the optimal material.

Q: What are the minimum order requirements for custom support rail lengths between 100 and 4000 mm?

A: We offer highly flexible MOQ arrangements, accommodating everything from single-unit emergency spare parts to full container consolidation shipments. Whether you need one precisely cut rail for a prototype or bulk standardized lengths for a production run, our inventory and cutting facilities support your specific project timeline efficiently.

Q: What is the recommended initial lubrication and maintenance cycle for these linear guide carriages?

A: Carriages typically ship with a protective rust preventative rather than final operating grease. You must purge and refill with the appropriate lithium-based or synthetic grease before commissioning. Subsequent re-lubrication intervals depend heavily on travel distance, speed, and contamination levels, requiring regular visual inspection of the wiper seals and raceway condition.

Q: Why are CE and RoHS certifications critical when exporting automation machinery equipped with these guides?

A: CE marking ensures the linear motion transmission equipment complies with European health, safety, and environmental protection directives, which is mandatory for market entry. RoHS compliance guarantees the restriction of hazardous substances in the galvanized coatings and steel alloys. We provide all necessary documentation to smooth your customs clearance and compliance audits.
