Original Batch Traceability — Every 51134 thrust ball bearing ships with unbroken factory lot documentation verifying its exact production run.

Technical Specifications

Application Suitability

Why Open-Type 51134 Thrust Ball Bearing Assemblies Fail in Crane Hooks

Contamination ingress and incorrect cage material selection silently destroy axial load capacity long before the steel fatigues.

Sourcing reliable thrust bearings for heavy axial loads without compromising on material traceability and urgent lead times is a constant challenge. I have seen maintenance teams replace a worn unit in a crane slewing mechanism, only to unknowingly swap a machined brass cage for a pressed steel variant. The visual similarity masks a catastrophic drop in heavy-load stability, leading to cage fracture within months [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When specifying a 51134 thrust ball bearing for such critical vertical loads, assuming all open variants perform identically is a costly mistake.

Matching Axial Load Demands with Precision Classes

Selecting the right tolerance ensures the 51134 thrust ball bearing maintains alignment under continuous vertical stress. Our engineering team cross-references your application requirements against P0, P6, and P5 precision classes to prevent micro-misalignments. This targeted selection prevents uneven load distribution across the rolling elements, directly extending the operational lifespan of vertical pump shafts and machine tool spindles.

Navigating Heavy Axial Stress and Lubrication Variables

Thrust bearings exclusively manage axial forces, making them highly sensitive to shock loads and momentary misalignment in construction machinery. The open sealing type demands a rigorous external lubrication strategy, as the absence of integrated seals leaves the raceways exposed to particulate ingress. Selecting the correct grease viscosity and establishing strict relubrication intervals are mandatory to prevent abrasive wear [NEED_CITE: lubrication film thickness requirements for thrust bearings]. Furthermore, thermal expansion from continuous friction can alter the internal geometry if the precision class and clearance are not correctly matched to the operating temperature.

Decoding the Configuration and Material Options

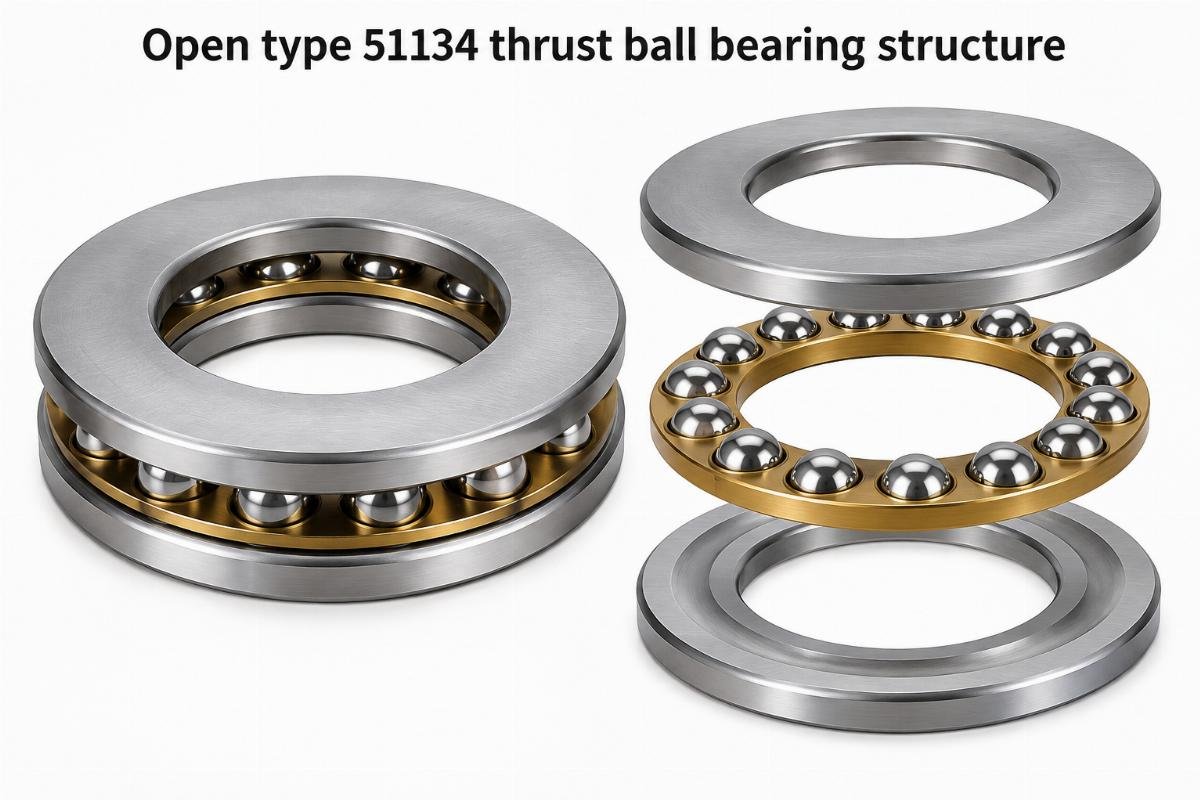

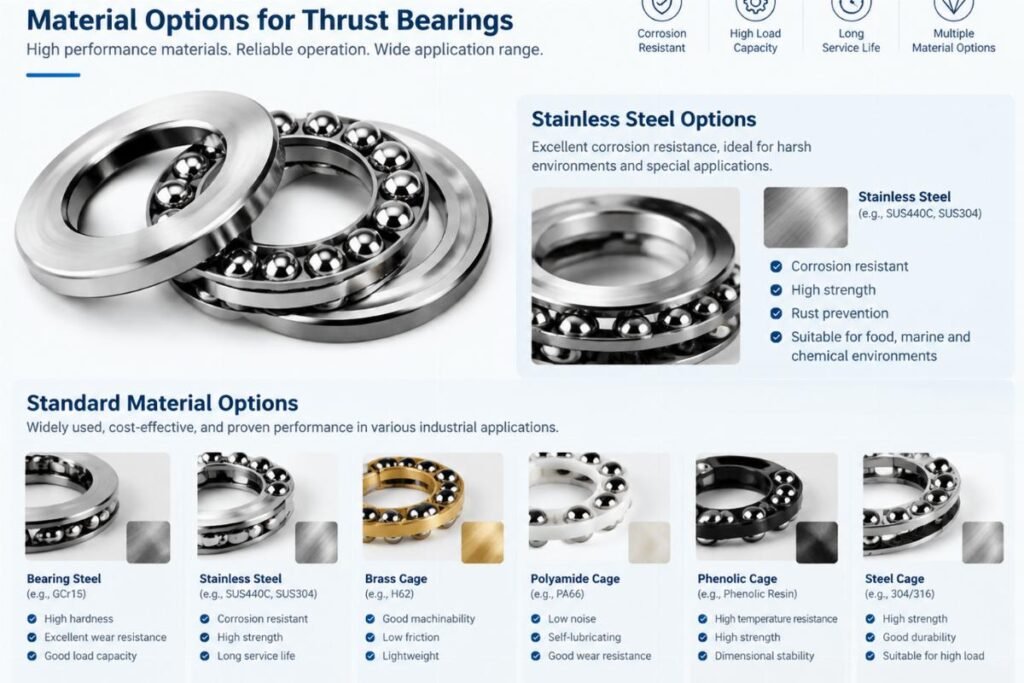

The designation covers both single row and double row configurations, dictating whether the assembly handles unidirectional or bidirectional axial loads. While the standard design utilizes high-carbon chrome steel, these units are also available in stainless steel variants for environments with high moisture or chemical exposure. The open seal design facilitates custom lubrication strategies, allowing maintenance crews to flush out contaminants in dusty gearboxes. Precision grades range from P0 for general industrial use up to P5 for machine tool spindles where axial runout must be strictly minimized.

The Operational Impact of Incorrect Cage Selection

Substituting a machined brass cage with a pressed steel alternative in high-vibration crane hooks triggers premature cage fracture. This failure mode rarely damages the raceways immediately but causes catastrophic roller skewing and sudden equipment seizure. According to industry failure analysis frameworks, such material mismatches account for a significant share of unplanned downtime in heavy lifting operations [NEED_CITE: cage failure mechanisms in heavy-duty thrust applications]. The resulting warranty voidance and emergency replacement logistics far exceed the initial savings of choosing a lower-tier component.

Securing Traceability and Exact Configuration Match

We verify the exact cage material and precision class against the manufacturer's production records before dispatch, eliminating the risk of receiving visually identical but structurally inferior substitutes. Our inventory covers multiple global brands, allowing us to consolidate mixed-brand project orders without forcing you to manage fragmented supply chains. For urgent maintenance, we provide flexible single-unit dispatches alongside full container shipments. Every shipment includes complete batch traceability, ensuring your quality assurance team can audit the exact metallurgical origin of the components. We also offer cross-reference consultation to identify equivalent models from premium brands when your preferred specification faces extended lead times.

Documentation & Authenticity

• Certificate of Conformity validating the exact P0, P6, or P5 precision grade upon delivery.
• Original factory batch traceability documents linking the specific lot to its production date.
• Material inspection reports confirming the stainless steel grade or standard bearing steel composition.
• Dimensional and running accuracy inspection reports verifying axial runout tolerances before shipment.
• Official manufacturer verification guides to authenticate the packaging and part marking details.

Storage, Handling & Mounting

• Store the open-type units in original moisture-barrier packaging until installation to prevent raceway corrosion.
• Use dedicated clean gloves during handling to avoid transferring skin acids onto precision-ground surfaces.
• Apply specified axial preload during mounting to prevent single or double row balls from skidding.
• Flush open raceways with clean solvent before applying operational grease to remove storage preservatives.
• Ensure the mounting environment is free from airborne particulates as open thrust plates are exposed.

Technical Data Required for Selection Verification

To ensure the selected configuration perfectly matches your equipment, please provide the exact axial load profiles, operational speeds, and thermal conditions. Sharing the OEM equipment number or the physical dimensions of the existing housing allows our engineering team to perform a precise cross-reference check. Detailing the environmental exposure, such as moisture levels or dust concentrations, helps us recommend the optimal material variant and external sealing arrangement for your specific application.

Frequently Asked Questions

Q: How can I verify the authenticity and traceability of the delivered units?

A: Every shipment includes original factory batch documentation and a Certificate of Conformity. You can cross-check the lot numbers against the manufacturer's official records. We also provide material and dimensional inspection reports that validate the specific precision class and steel grade, ensuring full transparency from the production facility to your receiving dock.

Q: What are the cross-reference equivalents across major global brands?

A: The basic dimension profile is standardized globally, but internal design variations exist. We cross-reference your required specifications against equivalent models from premium manufacturers like SKF, FAG, and NSK. This allows us to source the most readily available option without compromising the required load capacity, precision grade, or cage material specifications for your project.

Q: How do I choose between P0, P6, and P5 precision classes?

A: P0 is suitable for general industrial gearboxes where standard axial play is acceptable. P6 offers tighter tolerances for automotive steering mechanisms requiring smoother operation. P5 is strictly reserved for machine tool spindles where minimal axial runout is critical. Provide your operational speed and runout tolerance requirements so we can recommend the exact grade.

Q: What lubrication strategy is required for the open-type design?

A: The open design lacks integrated seals, requiring a robust external lubrication system. You must select a grease with appropriate base oil viscosity and anti-wear additives for the specific axial load. Establish strict relubrication intervals to flush out contaminants and maintain the protective film thickness, as the exposed raceways are highly vulnerable to particulate ingress.

Q: How do I determine if a single or double row configuration is needed?

A: A single row design accommodates axial loads in one direction only, suitable for vertical pumps or crane hooks with unidirectional gravity loads. A double row configuration handles bidirectional axial forces, necessary for gearboxes experiencing reversing thrust. Evaluate your load direction profile to select the correct internal geometry and prevent premature raceway spalling.
