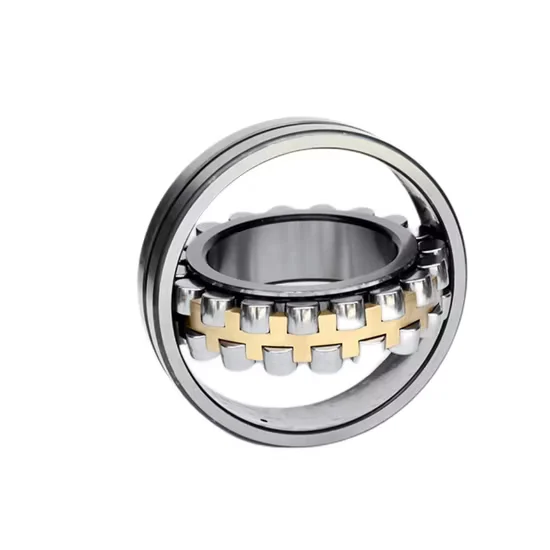

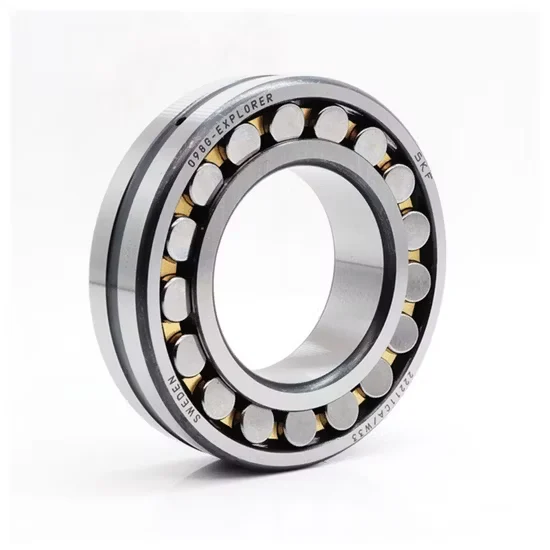

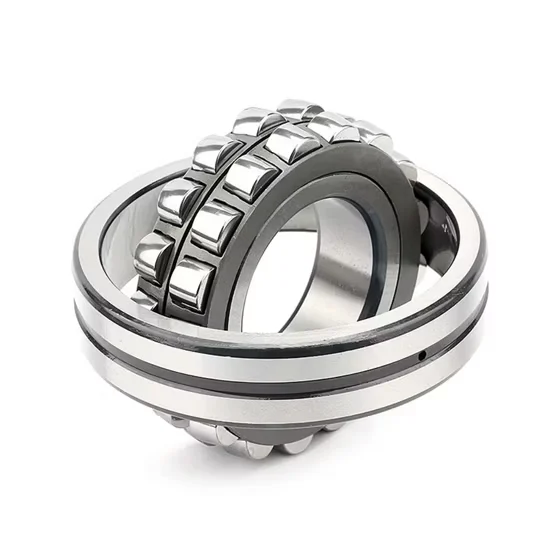

230/560 Self-Aligning Roller Bearings for Mining and Metallurgy [WARN] draft identifier mismatch

Cross-Reference Alignment Verified — Dimensional and load equivalence confirmed across major global catalogs for this large-bore series.

Technical Specifications

Application Suitability

Why Vibration Destroys the 230/560 spherical roller bearing Before Load Does

Resonance fractures cages long before static radial limits are reached.

At a recent trade show in Chicago, a mining engineer showed me the shattered remains of a massive spherical roller bearing from their primary crusher. They had swapped a brass cage for a stamped steel variant to cut costs, and the high-frequency vibration tore it apart. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When dealing with heavy-duty crushing and milling, compromising on cage material or internal clearance is a direct path to catastrophic downtime.

Matching the 230/560 spherical roller bearing to Extreme Ore Processing

Heavy radial shocks and moderate axial thrusts define the daily reality of ore reduction equipment. This double-row arrangement naturally compensates for shaft deflection under those immense loads. Our sourcing network ensures you receive the exact cage and clearance configuration required to survive the punishing environment of primary crushing and grinding circuits.

Managing Shock Loads and Contaminant Ingress in Heavy Machinery

The operational environment inside a mineral processing plant exposes rotating elements to severe particulate contamination and heavy shock loading. Proper sealing or external shielding is critical to prevent abrasive dust from degrading the lubricant film. Furthermore, the thermal expansion generated during continuous operation dictates the need for appropriate internal clearance to prevent binding. Selecting the right lubrication interval and viscosity directly impacts the fatigue life under these punishing conditions [NEED_CITE: bearing life calculation methods per ISO 281].

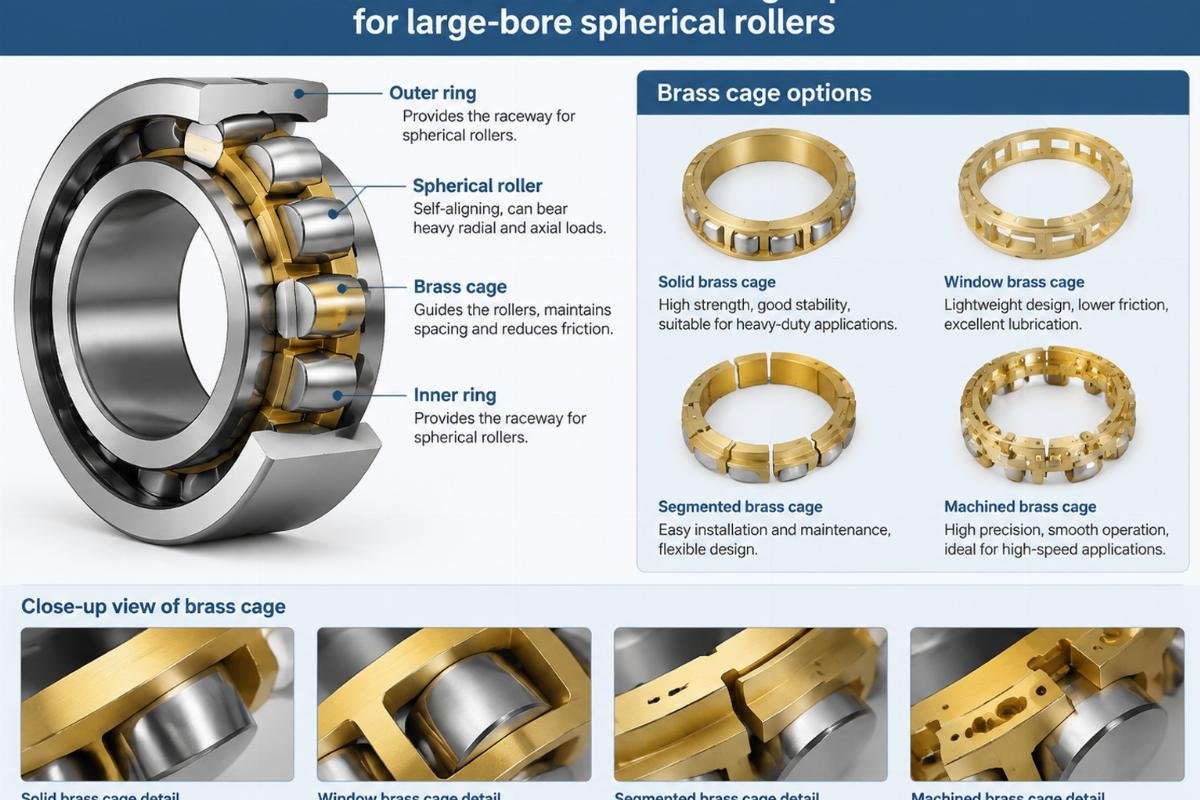

Decoding the Internal Geometry and Material Choices

Available in Gcr15 chrome steel variants, the material provides the necessary core hardness and wear resistance for prolonged service in heavy machinery. A double-row self-aligning roller structure inherently accommodates minor housing misalignments, protecting the shaft from bending moments. Depending on the specific vibration profile of your vibrating screen or crusher, the cage material becomes the deciding factor for longevity. Brass cages are generally preferred for high-vibration applications due to their superior damping characteristics and resistance to sudden shock loads compared to stamped steel alternatives.

The Financial Toll of Premature Crusher Stoppages

Selecting an incorrect internal clearance or mismatched cage design rarely results in a graceful degradation; it usually ends in sudden, catastrophic seizure. When a primary crusher halts unexpectedly, the resulting production bottleneck cascades through the entire beneficiation plant. According to established failure analysis frameworks, a significant share of premature failures stems from improper selection rather than manufacturing defects [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The cost of a replacement component is negligible compared to the hourly revenue lost during unplanned downtime.

Securing Traceable Heavy-Duty Bearings for Critical Assets

We specialize in sourcing authentic large-bore spherical rollers, ensuring the exact cage and clearance specifications match your OEM requirements. Our inventory covers multiple premium brands, allowing us to provide precise cross-references when your preferred manufacturer faces extended lead times. Every shipment includes complete traceability documentation, eliminating the risk of receiving counterfeit or substandard parts that fail under heavy shock loads. We also provide technical consultation to verify that the selected bearing aligns perfectly with your specific housing and shaft tolerances.

Documentation & Authenticity

• Certificate of Conformity validating the exact material grade, such as Gcr15 chrome steel, and heat treatment batch.
• Original manufacturer batch traceability records linking the bearing to its specific production run.
• Dimensional and running accuracy inspection reports confirming tolerances before dispatch.
• Anti-counterfeit verification codes for applicable premium brand packages.

Storage, Handling & Mounting

• Retain the original vapor-phase inhibitor packaging until the exact moment of mounting to prevent surface corrosion on the chrome steel rings.
• Use induction heating with strict temperature controls when mounting the large-bore inner ring to avoid altering the heat treatment.
• Ensure the self-aligning outer ring is properly seated in the housing to allow free angular movement during operation.
• Apply the recommended high-viscosity gear oil or grease immediately after installation to protect the double-row roller paths.
• Utilize soft slings and dedicated lifting fixtures when handling these heavy units to prevent edge damage to the precision-ground outer diameter.

Providing the Right Data for Technical Verification

To ensure the selected bearing perfectly matches your equipment, please share the exact radial and axial load profiles, operating speeds, and ambient temperature ranges. Providing the OEM equipment model number allows our engineering team to perform a precise cross-reference check and verify the L10 life calculation. If your application involves extreme shock loads or high contamination, detail the housing design so we can recommend the optimal internal clearance and sealing arrangement.

Frequently Asked Questions

Q: How do I verify the authenticity of large-bore spherical roller bearings?

A: Authenticity verification starts with checking the manufacturer's anti-counterfeit labels and QR codes on the original packaging. We also provide complete batch traceability documentation and material certificates for every bearing. For critical mining applications, we recommend requesting dimensional inspection reports to ensure the component meets the exact OEM tolerances before installation.

Q: What are the cross-reference equivalents for the 230 series across different brands?

A: The 230 series designations are generally standardized across major global manufacturers, meaning the basic dimensions remain identical. However, internal design variations such as cage type and roller profile can differ. We cross-reference equivalents from brands like KOYO, NTN, and NSK, ensuring the substitute matches your specific load and vibration requirements perfectly.

Q: How does the self-aligning feature compensate for shaft misalignment in crushers?

A: The spherical outer ring raceway allows the inner ring and roller assembly to pivot slightly within the housing. This self-aligning capability absorbs minor shaft deflections and housing misalignments caused by heavy shock loads. By preventing edge loading on the rollers, this design significantly reduces localized stress and extends the operational lifespan in rugged crushing equipment.

Q: What is the recommended lubrication strategy for chrome steel bearings in mining environments?

A: Mining environments demand high-viscosity lubricants with extreme pressure additives to withstand heavy shock loads and particulate contamination. The lubrication interval depends on the operating temperature, speed, and contamination level. We recommend establishing a condition-based monitoring routine, analyzing used grease samples regularly to detect wear debris and optimize the relubrication schedule for your specific equipment.

Q: How do I select the correct internal clearance for high-temperature metallurgy applications?

A: High-temperature environments cause the inner ring to expand more than the outer ring, reducing the internal operating clearance. For metallurgy applications like continuous casting, a larger initial clearance is typically required to prevent the bearing from binding under thermal expansion. Share your exact operating temperature gradient with our team so we can calculate the optimal clearance class for your specific setup.
