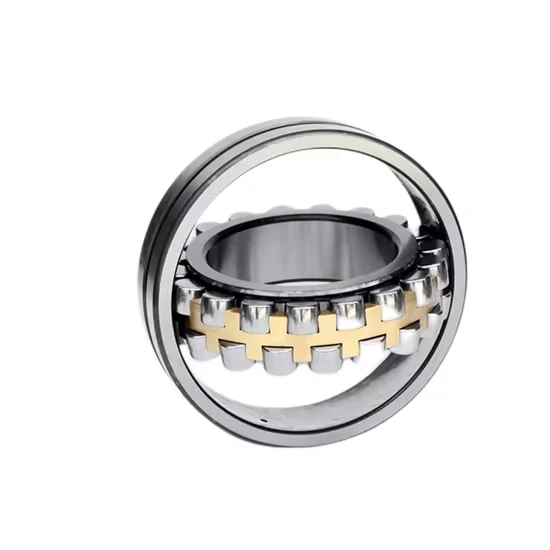

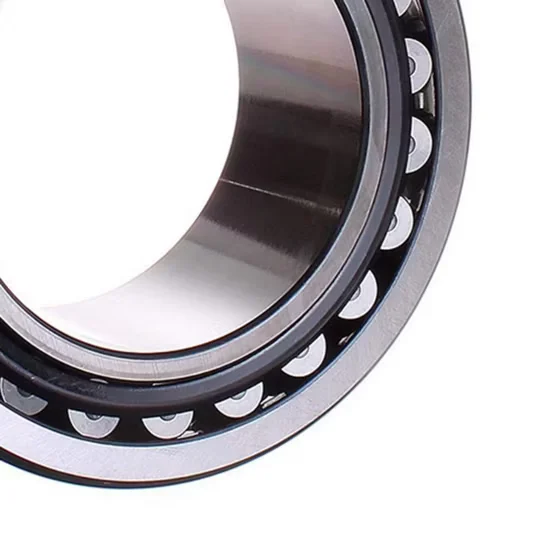

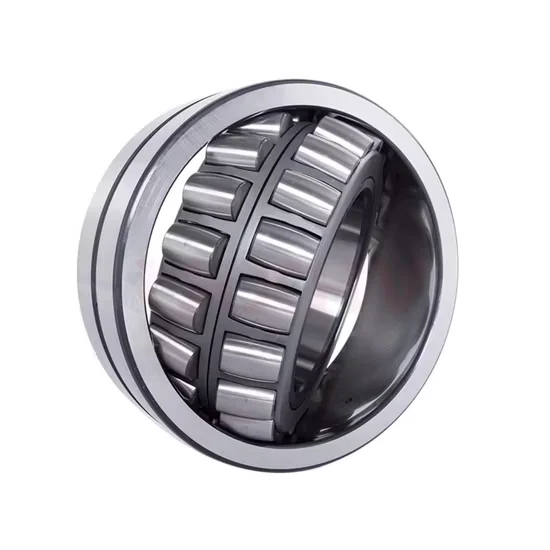

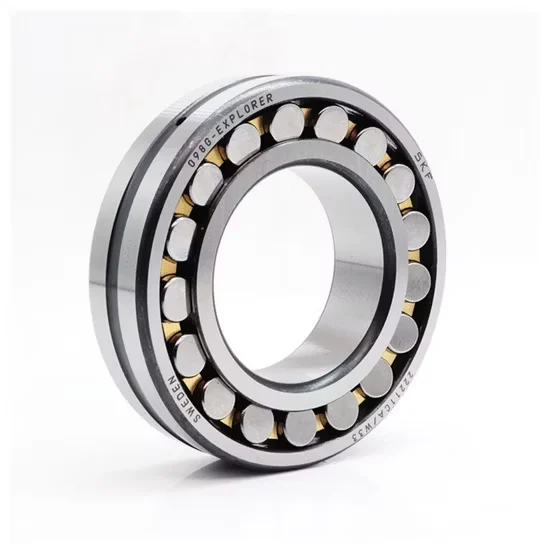

22213ek C3 Self Aligning Spherical Roller Bearing, 22213 [WARN] draft identifier mismatch

Authenticity Via QR — Every 22213ek C3 spherical roller bearing shipped includes a scannable manufacturer QR code linking directly to the original production batch records.

Technical Specifications

Application Suitability

Why Misaligned Shafts Destroy Standard Bearings in Heavy Machinery

Self-aligning capability prevents catastrophic edge loading when shaft deflection occurs.

When managing heavy-duty vibrating screens or crushers, shaft misalignment is inevitable due to structural flexing under immense dynamic loads and continuous vibration. Standard rigid bearings quickly develop localized stress concentrations, leading to premature raceway spalling and cage fracture. Upgrading to a 22213ek C3 spherical roller bearing accommodates these angular deviations, distributing the load evenly across the double-row rolling elements. This self-aligning capability significantly extends operational uptime and reduces the frequency of unplanned maintenance interventions [NEED_CITE: misalignment-induced fatigue failure mechanisms in heavy machinery].

Matching the 22213ek C3 spherical roller bearing to Demanding Environments

Heavy industrial sectors demand components that tolerate severe operational abuse without frequent maintenance interventions. This specific configuration excels in environments where high radial loads coincide with moderate axial thrusts and constant vibration. Our engineering team frequently specifies this reinforced design for mining and metallurgy clients who require reliable performance in dusty, high-temperature processing zones.

Managing Thermal Expansion and Contamination in Processing Plants

In metallurgical and mining applications, equipment operates continuously, generating substantial frictional heat that fundamentally alters internal bearing geometry. If the internal clearance is insufficient, thermal expansion forces the rolling elements tightly against the raceways, causing severe smearing and eventual seizure. Furthermore, airborne particulate matter from crushing or milling operations aggressively invades the lubrication film, accelerating abrasive wear. Proper sealing selection and initial clearance compensation are absolutely critical to maintaining a stable hydrodynamic oil film under these extreme thermal gradients and heavily contaminated environmental conditions [NEED_CITE: thermal expansion effects on radial internal clearance].

Decoding the Suffix Architecture for Optimal Load Distribution

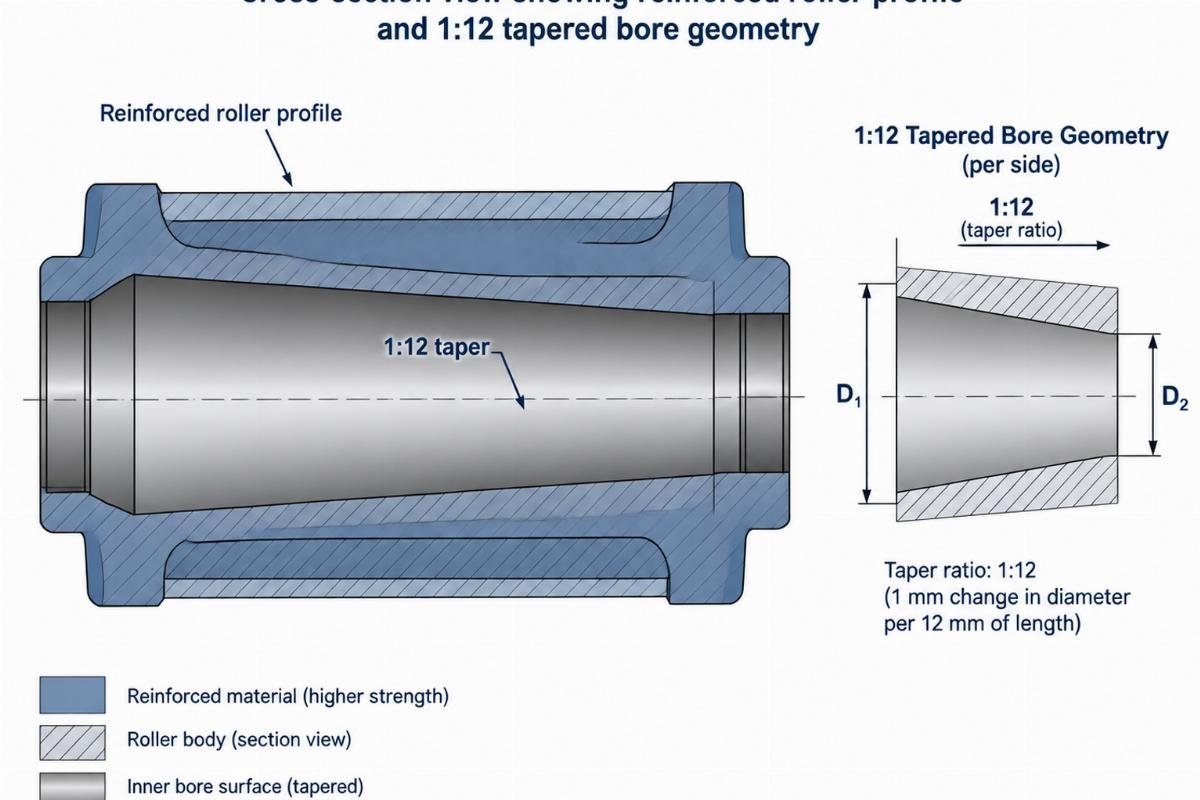

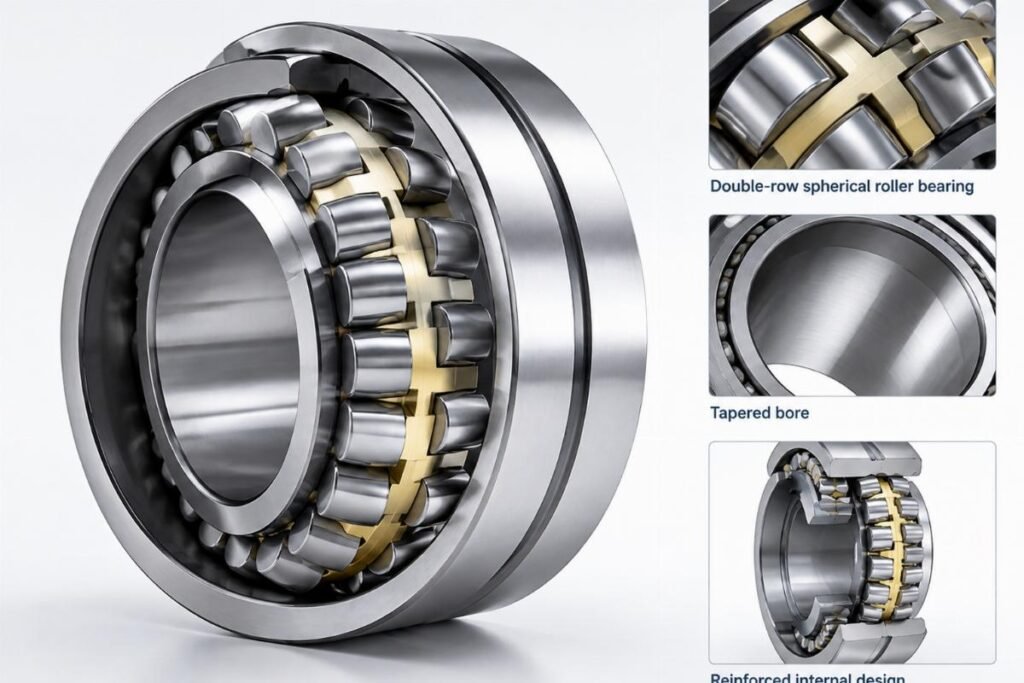

The designation 22213ek C3 contains specific engineering instructions crucial for heavy-load applications. The "E" suffix denotes a reinforced internal design, utilizing optimized roller profiles and a high-capacity cage to maximize the radial load rating and overall fatigue life. The "K" indicates a 1:12 tapered bore, allowing for precise interference fit adjustments when mounted on adapter sleeves, which is essential for controlling internal clearance on vibrating shafts. Finally, the "C3" clearance class provides the necessary internal gap to compensate for thermal expansion and tight interference fits, preventing the catastrophic lock-ups I frequently diagnosed during early field failure analyses in high-temperature processing zones.

The Hidden Financial Drain of Incorrect Clearance Selection

Selecting a standard CN clearance instead of C3 for high-temperature or tight-fit applications inevitably leads to premature failure. According to failure mode classifications outlined in ISO 15243, insufficient internal clearance manifests as severe smearing and raceway spalling, ultimately resulting in unplanned downtime and catastrophic damage to adjacent gearbox components. Replacing a seized bearing halts the entire production line, turning a minor component cost into massive revenue loss and voiding equipment warranties [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Securing Traceable Quality for Critical Rotating Equipment

Sourcing replacement bearings for heavy machinery requires absolute confidence in material integrity and dimensional accuracy. We supply the 22213ek C3 spherical roller bearing with complete batch traceability, ensuring the available Gcr15 chrome steel options meet stringent hardness and purity requirements for demanding environments. Our technical team provides cross-brand equivalent model consultation, verifying that substitute options perfectly align in cage material, internal geometry, and C3 clearance specifications. Furthermore, we maintain massive spot inventory covering thousands of standard part numbers, enabling rapid dispatch for urgent MRO requirements without compromising on authentic, ISO-compliant quality assurance and long-term technical support.

Documentation & Authenticity

• Certificate of Conformity validating Gcr15 material grade and heat treatment protocols.
• Original manufacturer batch traceability reports linking the 22213ek C3 to specific production runs.
• Dimensional inspection reports confirming the 1:12 tapered bore tolerance and C3 clearance gap.
• Official scannable QR codes for immediate digital verification of the bearing's origin.

Storage, Handling & Mounting

• Store the 22213ek C3 spherical roller bearing in its original moisture-proof packaging until mounting to prevent raceway corrosion.

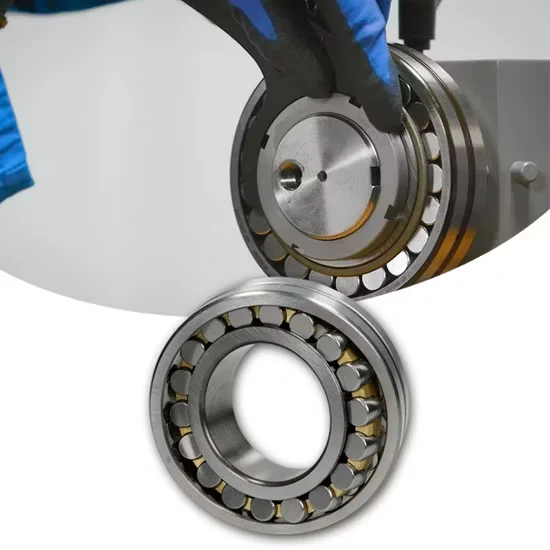

• Use induction heaters for mounting, ensuring the inner ring expands evenly without damaging the reinforced cage structure.
• Measure the drive-up distance on the 1:12 tapered shaft to achieve the exact residual C3 clearance required.
• Apply clean gloves during handling to prevent acidic sweat from etching the precision-ground Gcr15 steel surfaces.

Initiating Technical Verification for Your Application

To ensure the selected configuration perfectly matches your operational demands, please provide detailed equipment parameters. Sharing specific radial and axial load profiles, operating temperatures, and shaft deflection limits allows our engineers to verify the L10 life calculation. Additionally, providing the original OEM equipment number enables precise cross-referencing to confirm dimensional interchangeability.

Frequently Asked Questions

Q: What do the E, K, and C3 suffixes technically mean in the 22213ek C3 designation?

A: The "E" indicates a reinforced internal design with optimized rollers for higher load capacity. The "K" specifies a 1:12 tapered bore for adapter sleeve mounting. The "C3" denotes a greater-than-normal radial internal clearance, which is essential for compensating thermal expansion and tight interference fits in heavy-duty applications.

Q: How to correctly select adapter sleeves and adjust mounting clearance for 1:12 tapered bore bearings?

A: Mounting requires calculating the exact axial drive-up distance on the tapered shaft to achieve the target residual C3 clearance. Technicians must use feeler gauges to measure the internal gap before and after tightening the lock nut, ensuring the reinforced cage is not subjected to excessive preload that could cause premature failure.

Q: What is the selection boundary between C3 and standard CN clearance in mining heavy-load conditions?

A: Standard CN clearance is suitable for normal temperatures and loose fits. However, in mining vibrating screens where frictional heat and tight shaft fits are common, C3 clearance is mandatory. The extra internal gap prevents the rolling elements from binding against the raceways when the inner ring expands thermally, avoiding catastrophic seizure.

Q: What are the common failure modes and lubrication recommendations for spherical roller bearings in metallurgy?

A: In metallurgy, common failures include raceway spalling from misalignment and abrasive wear from scale dust ingress. We recommend high-viscosity, extreme-pressure lubricants with solid additives to maintain film thickness under heavy shock loads. Regular re-lubrication intervals must be strictly followed to purge contaminated grease from the bearing housing.

Q: How to verify if the purchased 22213 bearing is a genuine OEM part rather than a refurbished one?

A: Genuine parts feature laser-etched, high-resolution designations on the inner ring and include verifiable batch traceability documentation. Buyers should cross-check the stamped model, origin, and batch number against the packaging and use the manufacturer's official QR code to confirm the production history and material certifications.
